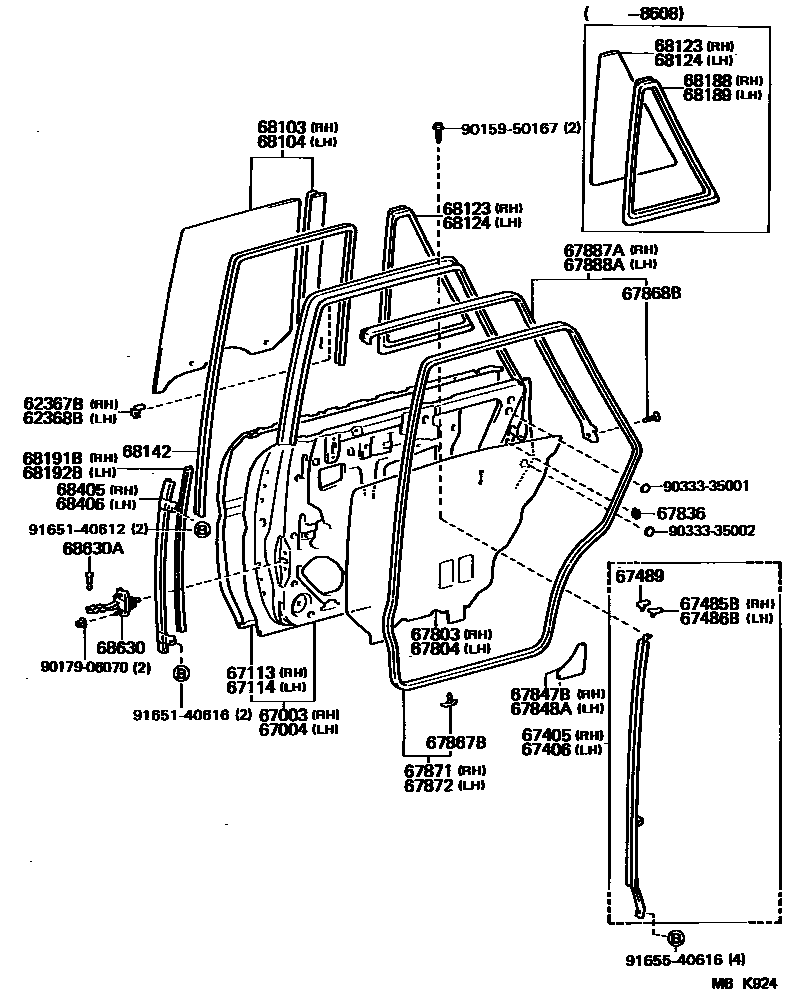

REAR DOOR PANEL & GLASS

0001 1 0002 1

62367BCLIP, DOOR WINDOW GLASS, REAR RH

main62367-22040iLX70,SX70..KYO198408-198808

main62367-22040iSX70..4FC198612-198808

*30

main62367-22050iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

62368BCLIP, DOOR WINDOW GLASS, REAR LH

main62368-22050iSX70..4FC198612-198808

*30

main62368-22050iLX70,SX70..KYO198408-198808

main62368-22060iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22330iGX71,LX70,MX71,SX70198408-198808

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22270iGX71,LX70,MX71,SX70198408-198808

67113PANEL, REAR DOOR, OUTER RH

main67113-22100iGX71,LX70,MX71,SX70198408-198506

sub67113-22110

main67113-22110iGX71,LX70,MX71,SX70198506-198808

67114PANEL, REAR DOOR, OUTER LH

main67114-22100iGX71,LX70,MX71,SX70198408-198506

sub67114-22110

main67114-22110iGX71,LX70,MX71,SX70198506-198808

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22060iGX71,LX70,MX71,SX70198408-198608

main67407-22080iGX71,LX70,SX70198608-198808

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22060iGX71,LX70,MX71,SX70198408-198608

main67408-22080iGX71,LX70,SX70198608-198808

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-22010iGX71,LX70,MX71,SX70198408-198808

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-22010iGX71,LX70,MX71,SX70198408-198808

67489SEAL, REAR DOOR DIVISION BAR

main67487-22030iGX71,LX70,MX71,SX70198408-198808

RH

main67488-22030iGX71,LX70,MX71,SX70198408-198808

LH

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22110iGX71,LX70,MX71,SX70198408-198808

sub67841-22150

main67841-22150iGX71,LX70,MX71,SX70198408-198808

COLD SPEC

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22150iGX71,LX70,MX71,SX70198408-198808

COLD SPEC

main67842-22020iGX71,LX70,MX71,SX70198408-198808

sub67841-22150

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iGX71,LX70,MX71,SX70198408-198808

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-22020iGX71,LX70,MX71,SX70198408-198808

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-22020iGX71,LX70,MX71,SX70198408-198808

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-22020iGX71,LX70,MX71,SX70198408-198808

RH

main67868-22010iGX71,LX70,MX71,SX70198408-198808

LH

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67869-30020iGX71,LX70,MX71,SX70198408-198808

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22140iGX71,LX70,MX71,SX70198408-198808

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22140iGX71,LX70,MX71,SX70198408-198808

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-22030iGX71,LX70,MX71,SX70198408-198808

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-22030iGX71,LX70,MX71,SX70198408-198808

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-22080iGX71,LX70,MX71,SX70198408-198608

*TT,T=3.5

main68103-22081iGX71,LX70,SX70198608-198808

main68103-22090iLX70,SX70..SCM..(CBR,TD)198502-198608

SCM EXTRA,*TEM,T=3.5,BRONZE

main68103-22090iGX71..SDX198510-198608

SDX EXTRA,*TEM,T=3.5,BRONZE

main68103-22090iGX71,MX71..GT,SLU198408-198608

*TEM,T=3.5,BRONZE

main68103-22091iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

main68103-22100iGX71..SLU..EFI198705-198808

*TT,T=3.5,GRAY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-22080iGX71,LX70,MX71,SX70198408-198608

*TT,T=3.5

main68104-22081iGX71,LX70,SX70198608-198808

main68104-22090iGX71..SDX198510-198608

SDX EXTRA,*TEM,T=3.5,BRONZE

main68104-22090iGX71,MX71..GT,SLU198408-198608

*TEM,T=3.5,BRONZE

main68104-22090iLX70,SX70..SCM..(CBR,TD)198502-198608

SCM EXTRA,*TEM,T=3.5,BRONZE

main68104-22091iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

main68104-22100iGX71..SLU..EFI198705-198808

*TT,T=3.5,GRAY

68123GLASS, REAR DOOR WINDOW, RH

main68011-22010iGX71,LX70,SX70198608-198808

main68011-22020iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

*TEM,T=3.5,BRONZE

main68011-22030iGX71..SLU..EFI198705-198808

*TT,T=3.5,GRAY

main68123-22170iGX71,LX70,MX71,SX70198408-198608

*TT,T=3.5

main68123-22180iGX71..SDX198510-198608

SDX EXTRA,*TEM,T=3.5,BRONZE

main68123-22180iGX71,MX71..GT,SLU198408-198608

*TEM,T=3.5,BRONZE

main68123-22180iLX70,SX70..SCM..(CBR,TD)198502-198608

SCM EXTRA,*TEM,T=3.5,BRONZE

68124GLASS, REAR DOOR WINDOW, LH

main68012-22010iGX71,LX70,SX70198608-198808

main68012-22020iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

main68012-22030iGX71..SLU..EFI198705-198808

*TT,T=3.5,GRAY

main68124-22160iGX71,LX70,MX71,SX70198408-198608

*TT,T=3.5

main68124-22170iLX70,SX70..SCM..(CBR,TD)198502-198608

SCM EXTRA,*TEM,T=3.5,BRONZE

main68124-22170iGX71..SDX198510-198608

SDX EXTRA,*TEM,T=3.5,BRONZE

main68124-22170iGX71,MX71..GT,SLU198408-198608

*TEM,T=3.5,BRONZE

68142RUN, REAR DOOR GLASS

main68142-22070iGX71,LX70,MX71,SX70198408-198608

RH

main68142-22071iGX71,LX70,SX70198608-198808

RH

main68152-22030iGX71,LX70,MX71,SX70198408-198608

LH

main68152-22031iGX71,LX70,SX70198608-198808

LH

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22070iGX71,LX70,MX71,SX70198408-198608

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22060iGX71,LX70,MX71,SX70198408-198608

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-22020iGX71,LX70,MX71,SX70198408-198808

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-22020iGX71,LX70,MX71,SX70198408-198808

68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22070iGX71,LX70,MX71,SX70198408-198808

68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22070iGX71,LX70,MX71,SX70198408-198808

68630CHECK ASSY, REAR DOOR

main68630-22040iGX71,LX70,MX71,SX70198408-198808

68630APIN(FOR REAR DOOR CHECK)

main68617-22020iGX71,LX70,MX71,SX70198507-198808

main68617-90A00iGX71,LX70,MX71,SX70198408-198507

9015950167

main90159-50167

9017906070

main90179-06070

9033335001

main90333-35001

9033335002

main90333-35002

9165140612

main91651-40612

9165140616

main91651-40616

9165540616

main91655-40616

42 parts on this diagram · 2 diagrams in section
