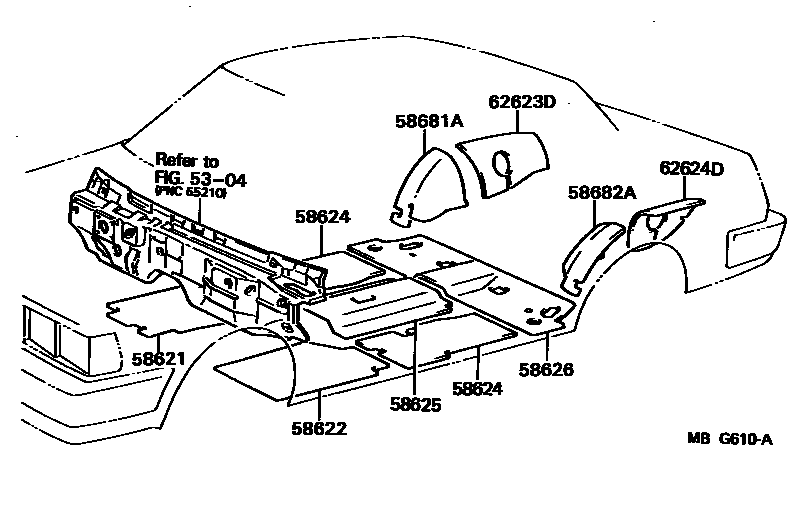

DASH SILENCER BOARD & FLOOR SILENCER PAD

5304

58621PAD, FLOOR SILENCER, FRONT RH

main58621-22090iLX70..SCM198408-198808

58622PAD, FLOOR SILENCER, FRONT LH

main58622-22040iLX70..SCM198408-198808

58624PAD, FLOOR SILENCER, REAR SIDE

main58634-22020iGX71,LX70,MX71..GT,SCM,SLU198408-198608

sub58634-22030

main58634-22021iGX71,LX70..GT,SCM,SLU198608-198703

main58634-22030iGX71,LX70..GT,SCM,SLU198703-198808

58625PAD, FLOOR SILENCER, REAR CENTER

main58636-22070iGX71,LX70,MX71..GT,SCM,SLU198408-198808

58626PAD, FLOOR SILENCER, REAR

main58624-22070iGX71,LX70,MX71,SX70198408-198808

58681ASHEET, QUARTER WHEEL HOUSE INNER SILENCER, RH

main58681-22010iGX71,LX70,MX71,SX70198408-198808

58682ASHEET, QUARTER WHEEL HOUSE INNER SILENCER, LH

main58682-22010iGX71,LX70,MX71,SX70198408-198808

62623DPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-22010iGX71,MX71198408-198808

sub58651-22H91

62624DPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62623-22010iGX71,MX71198408-198808

sub58651-22H91

10 parts on this diagram · 1 diagram in section
