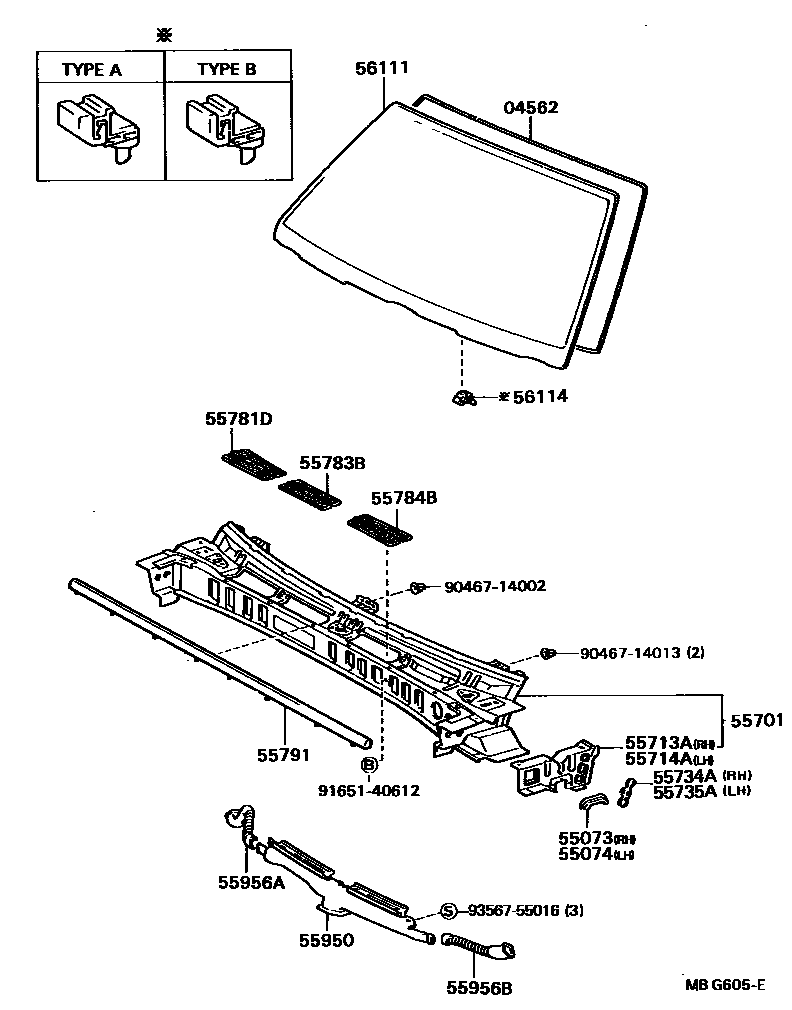

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iGX71,LX70,MX71,SX70198408-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-22020iGX71,LX70,MX71,SX70198408-198808

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-22030iGX71,LX70,MX71,SX70198408-198808

55701PANEL SUB-ASSY, COWL

main55700-22540iGX71..EFI198408-198608

sub55700-22541

main55700-22541iGX71..EFI198608-198808

main55700-22550iGX71,MX71..TBO,TWC,TWT198408-198608

sub55700-22551

main55700-22551iGX71..TWC,TWT198608-198808

main55700-22610iSX70..SCM198408-198608

sub55700-22611

main55700-22611iSX70..SCM198608-198808

main55700-22630iLX70;SX70..KYO198408-198608

sub55700-22631

main55700-22631iLX70;SX70..KYO198608-198808

55713APANEL, COWL TOP SIDE, RH

main55713-22050iGX71,LX70,MX71,SX70198408-198808

55714APANEL, COWL TOP SIDE, LH

main55714-22050iGX71,LX70,MX71,SX70198408-198808

55734APLATE, WATER GUARD, RH

main55734-22060iGX71,LX70,MX71,SX70198408-198808

55735APLATE, WATER GUARD, LH

main55734-22060iGX71,LX70,MX71,SX70198408-198808

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-22140iGX71,LX70,MX71,SX70198408-198610

sub55781-22150

main55781-22150iGX71,LX70,SX70198605-198610

COLD SPEC

main55781-22150iGX71,LX70,SX70198610-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-22050iGX71,LX70,MX71,SX70198408-198610

sub55783-22070

main55783-22070iGX71,LX70,SX70198610-198808

main55783-22070iGX71,LX70,SX70198605-198610

COLD SPEC

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-22050iGX71,LX70,MX71,SX70198408-198610

sub55784-22070

main55784-22070iGX71,LX70,SX70198610-198808

main55784-22070iGX71,LX70,SX70198605-198610

COLD SPEC

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-22040iGX71,LX70,MX71,SX70198408-198808

55950NOZZLE ASSY, DEFROSTER

main55950-22050iGX71,LX70,MX71,SX70198408-198608

sub55950-22070

main55950-22070iGX71,LX70,SX70198608-198808

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-22040iGX71,LX70,MX71,SX70198408-198808

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-22030iGX71,LX70,MX71,SX70198408-198808

56111GLASS, WINDSHIELD

main56111-22410iGX71,LX70,SX70..KYO,SCM,SDX198408-198510

*TT,T=5.3

sub56111-22450

main56111-22420iGX71,MX71..GT,SLU198408-198808

main56111-22430iLX70,SX70..SCM..(CBR,TD)198502-198608

sub56111-22720

main56111-22430iGX71,MX71..GT,SLU198408-198808

sub56111-22720

main56111-22430iGX71..SDX198510-198608

sub56111-22720

main56111-22450iGX71,LX70,SX70..KYO,SCM,SDX198510-198808

sub56111-22420

main56111-22450iSX70..4FC198612-198808

sub56111-22420

main56111-22520iGX71..SLU..EFI198705-198808

*TL,T=5.3,GRAY

sub56111-22720

56114RETAINER, WINDSHIELD GLASS

main56114-30010iGX71,LX70,MX71,SX70198408-198604

TYPE A

sub56114-30050

main56114-30020iGX71,LX70,MX71,SX70198408-198604

TYPE B

sub56114-30060

main56114-30050iGX71,LX70,SX70198604-198808

TYPE A

main56114-30060iGX71,LX70,SX70198604-198808

TYPE B

9046714002

main90467-14002

9046714013

main90467-14013

9165140612

main91651-40612

9356755016

main93567-55016

21 parts on this diagram · 1 diagram in section
