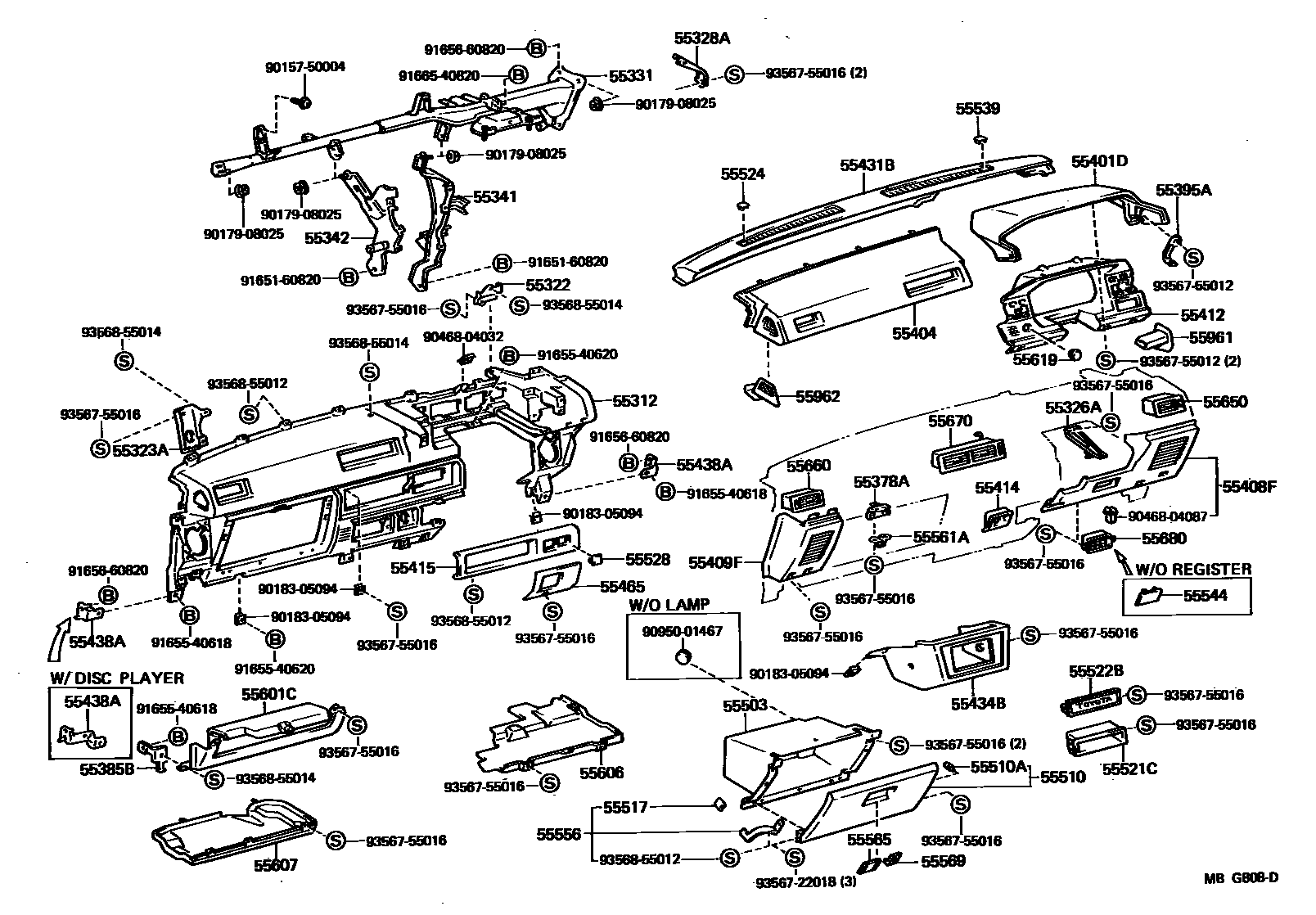

INSTRUMENT PANEL & GLOVE COMPARTMENT

55312PANEL, INSTRUMENT, LOWER

main55312-22090-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

MAROON,RED,TRIM3#

sub55312-22090

main55312-22090-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55312-22090

main55312-22090-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55312-22090

main55312-22090-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55312-22090

main55312-22090-12iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

sub55312-22090

main55312-22090-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55312-22090

55322BRACKET, INSTRUMENT PANEL, NO.1

main55321-22070iGX71,LX70,MX71,SX70198408-198808

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-22040iGX71,LX70,MX71,SX70198408-198808

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-22060iGX71,LX70,MX71,SX70198408-198808

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-22030iGX71,LX70,MX71,SX70198408-198808

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22020iGX71,LX70,MX71,SX70198408-198608

main55330-22060iGX71,LX70,SX70198608-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-22130iGX71,LX70,MX71,SX70198408-198808

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-22180iGX71,LX70,MX71,SX70198408-198808

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22040iGX71,LX70,MX71,SX70198408-198808

55385BBRACKET, FINISH PANEL MOUNTING, NO.5

main55385-22020iGX71,LX70,MX71,SX70198408-198808

55395ARETAINER, INSTRUMENT PANEL CLAMP

main55395-22010iGX71,LX70,MX71,SX70198408-198808

55401DPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55404-22090-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

MAROON,MAROON,TRIM3#

main55404-22090-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

main55404-22090-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

main55404-22090-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main55404-22090-12iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

main55404-22090-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-22220-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

main55401-22220-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

main55401-22220-12iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

MAROON,MAROON,TRIM3#

main55401-22220-15iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main55401-22220-22iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

main55401-22220-25iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-22020-02iGX71,MX71..GT,SLU198408-198608

MAROON,RED,TRIM3#

main55408-22020-03iGX71,MX71..GT,SLU198408-198608

GRAY,COOL GRAY,TRIM1#

main55408-22020-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main55408-22080-02iGX71198608-198808

MAROON,MAROON,TRIM3#

main55408-22080-04iGX71198608-198808

BLUE,DARK BLUE,TRIM8#

main55408-22080-05iGX71198608-198808

BEIGE,DARK BEIGE,TRIM4#

main55472-22020-02iGX71,LX70,SX70..SCM,SDX198408-198808

MAROON,RED,TRIM3#

sub55472-22020

main55472-22020-03iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

GRAY,COOL GRAY,TRIM1#

sub55472-22020

main55472-22020-04iLX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55472-22020

main55472-22020-05iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM4#

sub55472-22020

main55472-22020-15iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55472-22020

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-22040-02iGX71,MX71..GT,SLU198408-198608

MAROON,RED,TRIM3#

main55409-22040-03iGX71,MX71..GT,SLU198408-198608

GRAY,COOL GRAY,TRIM1#

main55409-22040-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main55409-22100-02iGX71198608-198808

MAROON,MAROON,TRIM3#

main55409-22100-04iGX71198608-198808

BLUE,DARK BLUE,TRIM8#

main55409-22100-05iGX71198608-198808

BEIGE,DARK BEIGE,TRIM4#

main55473-22030-02iGX71,LX70,SX70..SCM,SDX198408-198808

MAROON,RED,TRIM3#

sub55473-22030

main55473-22030-03iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

GRAY,COOL GRAY,TRIM1#

sub55473-22030

main55473-22030-04iLX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55473-22030

main55473-22030-05iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM4#

sub55473-22030

main55473-22030-15iLX70,SX70..SCM198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55473-22030

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55411-22260-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

MAROON,MAROON,TRIM3#

sub55411-22261

main55411-22260-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55411-22261

main55411-22260-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55411-22261

main55411-22261-02iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

sub55411-22261

main55411-22261-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55411-22261

main55411-22261-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55411-22261

55414BEZEL, CIGAR LIGHTER HOLE

main55477-22050iGX71,LX70,MX71,SX70198408-198808

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-22080iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main55412-22090iGX71,MX71..GT,SLU198408-198808

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55311-22130-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

MAROON,RED,TRIM3#

sub55311-22130

main55311-22130-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55311-22130

main55311-22130-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55311-22130

main55311-22130-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55311-22130

main55311-22130-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55311-22130

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55406-22150-02iGX71,MX71..GT,SLU198408-198808

MAROON,RED,TRIM3#

sub55434-22060

sub55406-22150

main55406-22150-03iGX71,MX71..GT,SLU198408-198608

GRAY,COOL GRAY,TRIM1#

sub55434-22060

sub55406-22150

main55406-22150-04iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

sub55434-22060

sub55406-22150

main55406-22150-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55434-22060

sub55406-22150

main55406-22150-15iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55434-22060

sub55406-22150

main55434-22060-02iGX71,LX70,SX70..SCM,SDX198408-198808

MAROON,RED,TRIM3#

sub55434-22060

main55434-22060-03iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

GRAY,COOL GRAY,TRIM1#

sub55434-22060

main55434-22060-04iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

BLUE,DARK BLUE,TRIM8#

sub55434-22060

main55434-22060-05iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM4#

sub55434-22060

main55434-22060-15iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55434-22060

55438ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2

main55438-22010iGX71,LX70,MX71,SX70198408-198808

RH

main55438-22020iGX71,LX70,MX71,SX70198408-198808

LH

main55438-22030iGX71..GT,SLU198608-198808

LH,W/DISC PLAYER

55465COVER, INSTRUMENT HOLE

main55531-22120-02iGX71,LX70,SX70..5F..(GT,SCM,SDX,SLU)198408-198808

MAROON,RED,TRIM3#

sub55531-22120

main55531-22120-02iGX71..4FC..SDX198608-198808

*TECSI,MAROON,RED,TRIM3#

sub55531-22120

main55531-22120-03iGX71,LX70,SX70..5F198408-198608

GRAY,COOL GRAY,TRIM1#

sub55531-22120

main55531-22120-04iGX71,LX70,SX70..5F198608-198808

*TECSI,BLUE,DARK BLUE,TRIM8#

sub55531-22120

main55531-22120-04iGX71,LX70,SX70..5F198608-198808

BLUE,DARK BLUE,TRIM8#

sub55531-22120

main55531-22120-04iSX70..4FC198612-198808

*30,BLUE,DARK BLUE,TRIM8#

sub55531-22120

main55531-22120-05iGX71,LX70,SX70..5F..(GT,SCM,SDX,SLU)198408-198608

BEIGE,BEIGE,TRIM4#

sub55531-22120

main55531-22120-15iSX70..4FC198612-198808

*30,BEIGE,DARK BEIGE,TRIM4#

sub55531-22120

main55531-22120-15iGX71,LX70,SX70..5F..(GT,SCM,SDX,SLU)198608-198808

*TECSI,BEIGE,DARK BEIGE,TRIM4#

sub55531-22120

main55531-22120-15iGX71..4FC..SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55531-22120

main55531-22130-02iGX71,LX70,MX71,SX70..4FC198408-198808

MAROON,RED,TRIM3#

sub55531-22130

sub55531-22120

main55531-22130-02iSX70..4FC198612-198808

*30,MAROON,RED,TRIM3#

sub55531-22130

sub55531-22120

main55531-22130-03iGX71,LX70,MX71,SX70..4FC198408-198608

GRAY,COOL GRAY,TRIM1#

sub55531-22130

sub55531-22120

main55531-22130-04iGX71,LX70,SX70..4FC198608-198808

BLUE,DARK BLUE,TRIM8#

sub55531-22130

sub55531-22120

main55531-22130-05iGX71,MX71,SX70..4FC198408-198608

BEIGE,BEIGE,TRIM4#

sub55531-22130

sub55531-22120

main55531-22130-15iGX71,LX70,SX70..4FC198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55531-22130

sub55531-22120

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-22070iGX71,LX70,MX71,SX70198408-198808

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22080-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

MAROON,RED,TRIM3#

sub55550-22080

main55550-22080-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55550-22080

main55550-22080-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55550-22080

main55550-22080-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55550-22080

main55550-22080-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55550-22080

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iGX71,LX70,MX71,SX70198408-198808

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX71,LX70,MX71,SX70198408-198808

55521CCOVER, STEREO OPENING

main55521-14050-01iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

BLACK,BLACK

sub55521-14050

55522BCOVER, RADIO TUNER OPENING

main55522-32010iSX70..4FC198612-198808

*30

sub55522-20070

main55522-32010iLX70,SX70..KYO198408-198808

sub55522-20070

55524COVER, SWITCH BACE HOLE

main55524-22050-02iGX71,LX70,SX70..SCM,SDX198408-198808

MAROON,RED,TRIM3#

sub55524-22050

main55524-22050-03iLX70,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55524-22050

main55524-22050-04iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

BLUE,DARK BLUE,TRIM8#

sub55524-22050

main55524-22050-05iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM4#

sub55524-22050

main55524-22050-15iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55524-22050

55528COVER, AUTO DRIVE OPENING

main55528-22020iGX71,LX70,MX71,SX70198408-198808

55539COVER, SPARE SWITCH HOLE

main55539-22050-02iGX71,LX70,SX70..SCM,SDX198408-198808

MAROON,RED,TRIM3#

sub55539-22050

main55539-22050-03iLX70..KYO;GX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,EFI,TD)198408-198608

GRAY,COOL GRAY,TRIM1#

sub55539-22050

main55539-22050-04iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

BLUE,DARK BLUE,TRIM8#

sub55539-22050

main55539-22050-05iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,EFI,TD)198408-198608

BEIGE,BEIGE,TRIM4#

sub55539-22050

main55539-22050-15iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55539-22050

55544COVER, INSTRUMENT PANEL REGISTER HOLE

main55544-32010-02iGX71,LX70,SX70..SCM,SDX198408-198808

MAROON,MAROON,TRIM3#

sub55544-32010

main55544-32010-05iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM4#

sub55544-32010

main55544-32010-15iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55544-32010

main55544-32010-23iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

GRAY,COOL GRAY,TRIM1#

sub55544-32010

main55544-32010-24iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

BLUE,DARK BLUE,TRIM8#

sub55544-32010

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22070iGX71,LX70,MX71,SX70198408-198808

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-22040iGX71,LX70,MX71,SX70198408-198808

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22010-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198411-198608

MAROON,MAROON,TRIM3#

sub55565-22010

main55565-22010-03iGX71,LX70,MX71,SX70198411-198608

GRAY,COOL GRAY,TRIM1#

sub55565-22010

main55565-22010-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198411-198608

BEIGE,BEIGE,TRIM4#

sub55565-22010

main55565-22010-12iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

sub55565-22010

main55565-22010-14iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55565-22010

main55565-22010-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55565-22010

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22020-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198411-198608

MAROON,MAROON,TRIM3#

sub55569-22020

main55569-22020-03iGX71,LX70,MX71,SX70198411-198608

GRAY,COOL GRAY,TRIM1#

sub55569-22020

main55569-22020-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198411-198608

BEIGE,BEIGE,TRIM4#

sub55569-22020

main55569-22020-12iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

sub55569-22020

main55569-22020-14iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55569-22020

main55569-22020-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55569-22020

55601CTRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-22060-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

MAROON,RED,TRIM3#

sub55601-22060

main55601-22060-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55601-22060

main55601-22060-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55601-22060

main55601-22060-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55601-22060

main55601-22060-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55601-22060

main55601-22070-02iGX71..GT,SLU198608-198808

W/DISC PLAYER,MAROON,MAROON,TRIM3#

sub55601-22070

main55601-22070-04iGX71..GT,SLU198608-198808

W/DISC PLAYER,BLUE,DARK BLUE,TRIM8#

sub55601-22070

main55601-22070-05iGX71..GT,SLU198608-198808

W/DISC PLAYER,BEIGE,DARK BEIGE,TRIM4#

sub55601-22070

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22090iGX71,LX70,MX71198408-198808

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22040iGX71,LX70,MX71..GT,SCM,SDX,SLU198408-198808

main55607-22060iGX71..4FC..TWC198408-198808

W/ESC

55619COVER, SWITCH HOLE

main55619-14010-01iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

BLACK

sub55619-14010

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22070iGX71,LX70,MX71,SX70198408-198808

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22100-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

MAROON,RED,TRIM3#

sub55660-22100

main55660-22100-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55660-22100

main55660-22100-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55660-22100

main55660-22100-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55660-22100

main55660-22100-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55660-22100

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22100-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

MAROON,RED,TRIM3#

sub55670-22100

main55670-22100-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub55670-22100

main55670-22100-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub55670-22100

main55670-22100-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

sub55670-22100

main55670-22100-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55670-22100

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iGX71,LX70,MX71,SX70198408-198808

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22050-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

MAROON,RED,TRIM3#

main55961-22050-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

main55961-22050-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

main55961-22050-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main55961-22050-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22050-02iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198808

MAROON,RED,TRIM3#

main55962-22050-03iGX71,LX70,MX71,SX70198408-198608

GRAY,COOL GRAY,TRIM1#

main55962-22050-04iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

main55962-22050-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main55962-22050-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

9015750004

main90157-50004

9017908025

main90179-08025

9018305094

main90183-05094

9046804032

main90468-04032

9046804087

main90468-04087

9095001467

main90950-01467

9165160820

main91651-60820

9165540618

main91655-40618

9165540620

main91655-40620

9165660820

main91656-60820

9166540820

main91665-40820

9356722018

main93567-22018

9356755012

main93567-55012

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

62 parts on this diagram · 1 diagram in section
