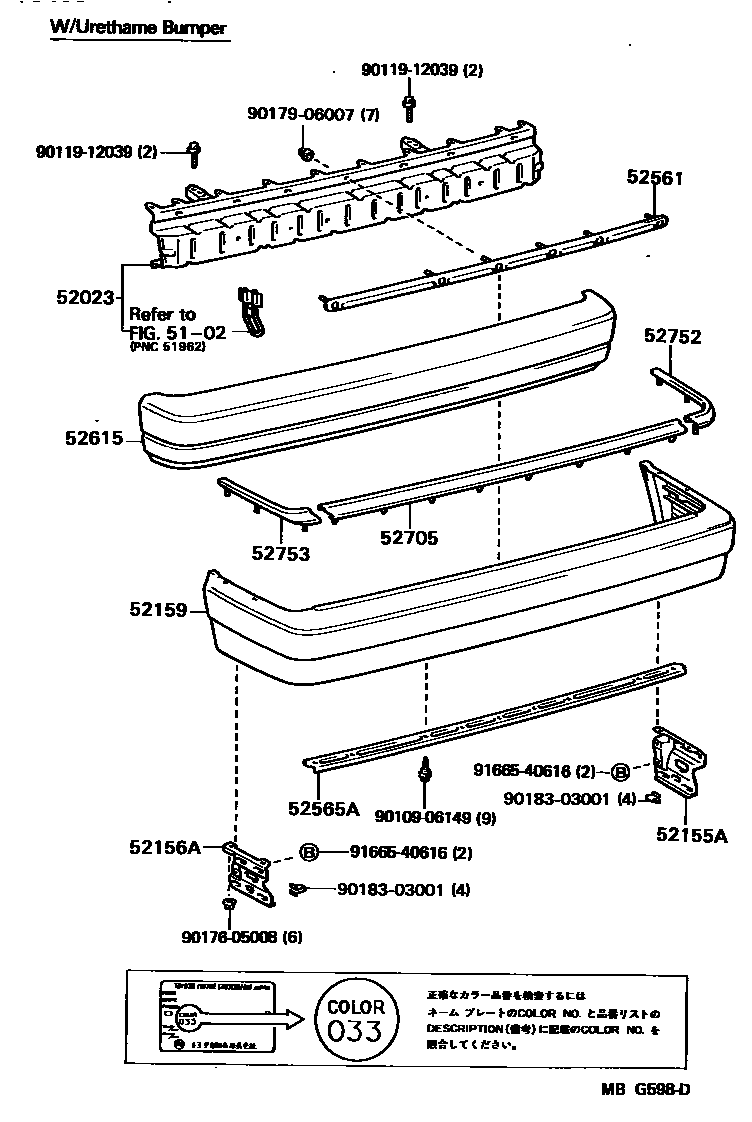

REAR BUMPER & BUMPER STAY

5102

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-22100iGX71,LX70,MX71,SX70198408-198410

main52023-22130iGX71,LX70,MX71,SX70198410-198808

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-22090iGX71,LX70,MX71,SX70198408-198608

main52155-22091iGX71,LX70,SX70198608-198808

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-22110iGX71,LX70,MX71,SX70198408-198608

main52156-22111iGX71,LX70,SX70198608-198808

52159COVER, REAR BUMPER

main52159-22140iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

main52159-22150-03iGX71,MX71..SLU198408-198506

SUPER SILVER-M,SUPER SILVER M,150

sub52159-22906

main52159-22150-04iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198506-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

sub52159-22906

main52159-22150-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198506-198608

BEIGE-M,BEIGE METALLIC,4E6

sub52159-22906

main52159-22150-08iGX71,MX71..SLU198408-198506

SUPER WHITE,SUPER WHITE,040

sub52159-22906

main52159-22150-12iGX71,MX71..SLU198408-198510

DEEP MAROON,WINE RED METALLIC,3E2

sub52159-22906

main52159-22150-23iGX71,MX71..GT,SLU198408-198608

GRAY-M,GRAY METALLIC,2V3

sub52159-22906

main52159-22150-25iGX71,MX71..GT,SLU198408-198608

LIGHT BEIGE-M,WHITE/BEIGE,2V0

sub52159-22906

main52159-22150-38iGX71..SLU198601-198608

EXCEED,SUPER WHITE,WHITE/BEIGE,040

sub52159-22906

main52159-22210iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

main52159-22220-02iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

D-RED MICA,DARK RED MICA,3H3

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22220-03iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

SUPER SILVER 2 -M,SUPER SILVER 2,166

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22220-04iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BLUE MICA,BLUE MICA,8E3

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22220-05iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE-M,BEIGE METALLIC,4G8

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22220-08iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

SUPER WHITE,SUPER WHITE 2,040

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22220-15iGX71..GT,SLU198608-198808

BEIGE / WHITE,BEIGE/WHITE,2V0

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22220-38iGX71..TWC198612-198708

EXCEED,SUPER WHITE,WHTE/BEIGE,040

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22220-58iGX71..SLU..EFI198705-198708

EXCEED,SUPER WHITE, WHITE 2/S SILVER 2,040

sub52159-22925

sub52159-22290

sub52159-22300

main52159-22270-08iGX71..SLU..EFI198708-198808

EXCCED,SILVER,SUPER WHITE,S WHITE 2/SILVER M,040

main52159-22280-08iGX71..TWC198708-198808

EXCCED,BEIGE,SUPER WHITE,S WHITE 2/BEIGE M,040

main52159-22430-08iGX71..TWC198802-198808

EXCEED,WHITE PEARL MICA,WHITE PRL M-BEIGE M,042

sub52159-22290

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-22050iGX71,LX70,MX71,SX70198408-198808

52565ARETAINER, REAR BUMPER, LOWER

main52565-22030iGX71,LX70,MX71,SX70198408-198808

52615ABSORBER, REAR BUMPER ENERGY

main52615-22060iGX71,LX70,MX71,SX70198408-198608

main52615-22080iGX71,LX70,SX70198608-198808

52705MOULDING SUB-ASSY, REAR BUMPER

main52751-22090iGX71,LX70,MX71,SX70198408-198608

main52751-22091iGX71,LX70,SX70198608-198808

52752MOULDING, REAR BUMPER SIDE, RH

main52706-22020iGX71,LX70,MX71,SX70198408-198608

main52706-22021iGX71,LX70,SX70198608-198808

52753MOULDING, REAR BUMPER SIDE, LH

main52707-22020iGX71,LX70,MX71,SX70198408-198608

main52707-22021iGX71,LX70,SX70198608-198808

9010906149

main90109-06149

9011912039

main90119-12039

9017605008

main90176-05008

9017906007

main90179-06007

9018303001

main90183-03001

9166540616

main91665-40616

17 parts on this diagram · 1 diagram in section
