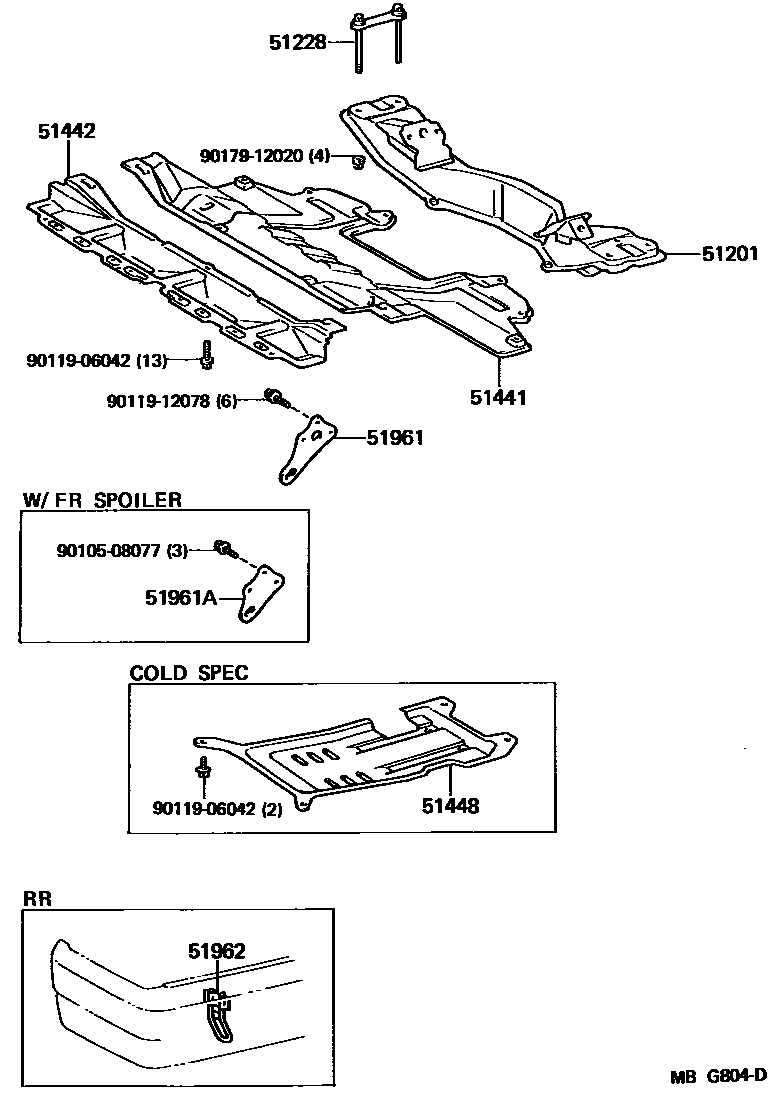

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22300iGX71,MX71..SDX,SLU198408-198604

sub51201-22380

main51201-22310iSX70198408-198808

sub51201-22311

sub12361-63080

sub45515-22090

sub45517-22040

main51201-22330iLX70198408-198808

sub51201-22331

sub45515-22090

sub45517-22040

main51201-22380iGX71..TWT198510-198808

sub51201-22381

sub45515-22090

sub45517-22040

main51201-22390iGX71..TWC198608-198808

sub51201-22391

sub45515-22090

sub45515-22100

sub45517-22040

51228PLATE, SUSPENSION MEMBER SET

main51229-22040iGX71,LX70,MX71,SX70198408-198808

51441COVER, ENGINE UNDER, NO.1

main51405-22030iLX70198408-198808

main51441-22140iGX71,MX71198408-198808

main51441-22150iSX70198408-198808

51442COVER, ENGINE UNDER, NO.2

main51442-22040iGX71,LX70,MX71,SX70198408-198808

51448PROTECTOR, OIL PAN

main51447-22020iGX71,LX70,MX71,SX70198408-198808

51961HOOK, NO.1

main51963-22040iGX71,LX70,MX71,SX70198408-198808

51961AHOOK, NO.3

main51963-22070iGX71..TWC,TWT198408-198808

W/FR SPOILER

main51963-22070iGX71..SLU..EFI198705-198808

EXCEED,W/FR SPOILER

51962HOOK, NO.2

main51965-22040iGX71,LX70,MX71,SX70198408-198808

9010508077

main90105-08077

9011906042

main90119-06042

9011912078

main90119-12078

9017912020

main90179-12020

12 parts on this diagram · 2 diagrams in section
