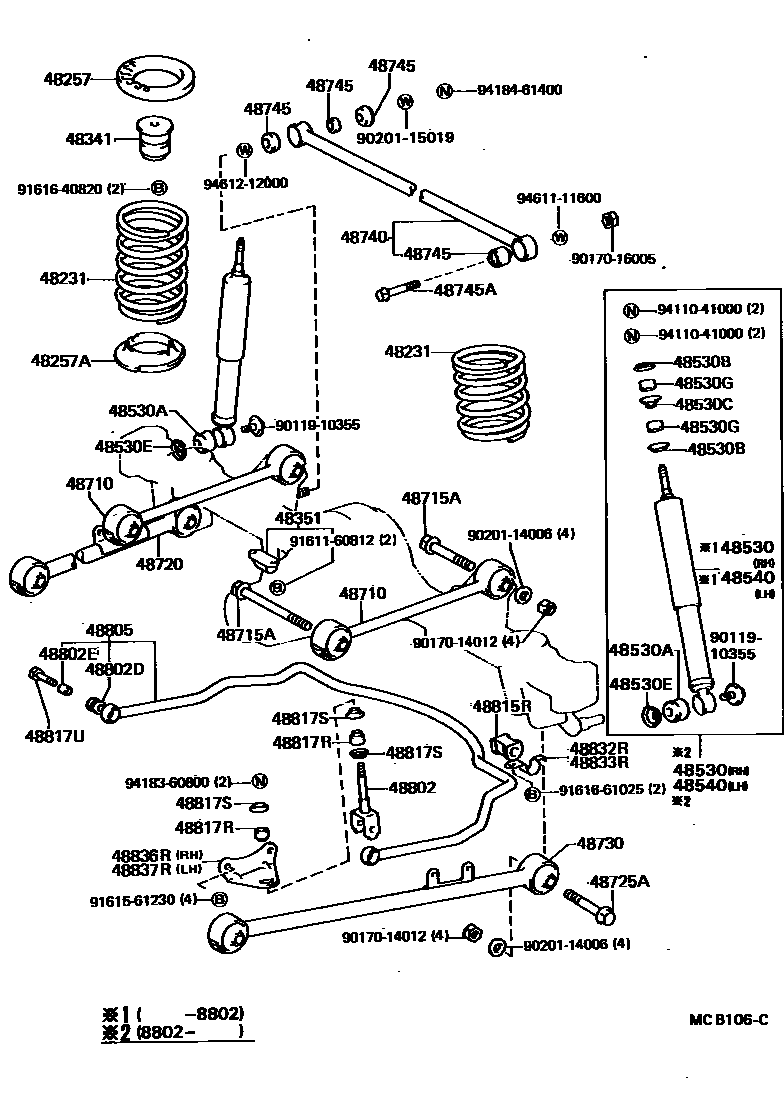

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231SPRING, COIL, REAR

main48231-22680iSX70198408-198508

sub48231-22681

main48231-22681iSX70198508-198705

main48231-22690iSX70198408-198808

main48231-22710iLX70..TD198709-198808

main48231-22720iGX71,MX71..TBO,TWC198408-198808

main48231-22730iGX71..EFI198408-198608

main48231-22731iGX71..EFI198608-198808

main48231-22740iGX71..TWT198510-198808

main48231-22800iLX70..DSL198408-198709

main48231-22811iLX70..DSL198709-198808

sub48231-22620

48257INSULATOR, REAR COIL SPRING

main48257-22020iLX70,SX70198408-198808

main48257-22030iGX71,MX71198408-198808

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-22010iLX70,SX70198408-198808

main48258-22041iGX71,MX71198408-198808

RH

main48258-22050iGX71,MX71198408-198808

LH

48341BUMPER, REAR SPRING

main48341-22080iLX70,SX70198408-198808

main48341-24010iGX71,MX71198408-198808

48351BUMPER, DIFFERENTIAL CARRIER

main48351-12020iLX70,SX70198605-198808

main48351-19035iLX70,SX70198408-198605

sub48351-12020

main48351-20020iSX70198705-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-22520iLX70,SX70198408-198709

sub48531-80330

main48531-22550iGX71,MX71..EFI,TBO198408-198802

sub48531-80345

main48531-22590iGX71..TWC198408-198802

sub48531-80335

main48531-22610iSX70198705-198802

sub48531-80325

main48531-22710iGX71..TWT198510-198802

sub48531-80385

main48531-80325iSX70198802-198808

main48531-80335iGX71..TWC198802-198808

sub48531-80187

main48531-80345iGX71..EFI198802-198808

main48531-80385iGX71..TWT198802-198808

sub48531-80197

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iGX71,LX70,MX71,SX70198408-198506

main90385-16004iGX71,LX70,MX71,SX70198506-198808

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT198408-198808

main90948-02070iGX71..TWC198408-198808

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02075iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT198408-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGX71,LX70,MX71,SX70198408-198808

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10004iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT198408-198808

LWR

main90948-01003iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT198408-198808

UPR

main90948-01025iGX71..TWC198408-198512

LWR

main90948-01026iGX71..TWC198408-198808

UPR

main90948-01032iGX71..TWC198512-198808

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-22520iLX70,SX70198408-198709

sub48531-80330

main48531-22550iGX71,MX71..EFI,TBO198408-198802

sub48531-80345

main48531-22590iGX71..TWC198408-198802

sub48531-80335

main48531-22610iSX70198705-198802

sub48531-80325

main48531-22710iGX71..TWT198510-198802

sub48531-80385

main48531-80325iLX70198802-198808

main48531-80335iGX71..TWC198802-198808

sub48531-80187

main48531-80345iGX71..EFI198802-198808

main48531-80385iGX71..TWT198802-198808

sub48531-80197

48710ARM ASSY, UPPER CONTROL

main48710-22190iLX70..4FC198408-198808

main48710-22210iSX70198408-198808

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14027iLX70,SX70198408-198808

AXLE HOUSING X CONTROL ARM

main90105-14029iLX70,SX70198408-198808

BODY X CONTROL ARM

48720ARM ASSY, LOWER CONTROL, RH

main48720-22180iSX70198408-198808

main48720-22190iLX70..4FC198408-198808

48725BUSH, LOWER CONTROL ARM

main48725-22050iGX71..TWT198510-198702

OUTER

sub48725-22051

main48725-22051iGX71..TWT198702-198808

OUTER

main48725-22060iGX71..TWT198510-198702

INNER

sub48725-22061

main48725-22061iGX71..TWT198702-198808

INNER

main48725-22070iGX71,MX71..SDX,SLU198408-198702

OUTER

main48725-22071iGX71..EFI,TWC198702-198808

OUTER

main48725-22080iGX71,MX71..SDX,SLU198408-198702

INNER

sub48725-22081

main48725-22081iGX71..EFI,TWC198702-198808

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14028iLX70,SX70198408-198808

48730ARM ASSY, LOWER CONTROL, LH

main48720-22180iSX70198408-198808

main48720-22190iLX70..4FC198408-198808

48740ROD ASSY, REAR LATERAL CONTROL

main48740-22060iLX70,SX70198408-198808

48745BUSH, LATERAL CONTROL ROD

main48706-22030iLX70,SX70198408-198808

BODY SIDE

main90385-20001iLX70,SX70198408-198808

L=15,HOUSING SIDE

main90386-20001iLX70,SX70198408-198808

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16006iLX70,SX70198408-198808

48802LINK SUB-ASSY, STABILIZER

main48802-12010iLX70..TD198408-198808

48802DBUSH, STABILIZER LINK

main90385-11021iLX70..TD198408-198808

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iLX70..TD198408-198808

48805BAR SUB-ASSY, REAR STABILIZER

main48805-22060iLX70..TD198408-198808

48815RBUSH, STABILIZER(FOR REAR)

main48815-12110iLX70..TD198408-198808

main48815-22080iGX71,MX71..TBO,TWC,TWT198408-198808

main48815-22090iGX71..EFI198408-198808

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iGX71,LX70,MX71..EFI,TBO,TD,TWC,TWT198408-198808

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iGX71,LX70,MX71..EFI,TBO,TD,TWC,TWT198408-198808

T=1.2

main90948-02025iGX71,LX70,MX71..EFI,TBO,TD,TWC,TWT198408-198808

T=1.0

48817UBOLT(FOR REAR STABILIZER)

main90101-08095iGX71,MX71198408-198808

main91112-41040iLX70..TD198408-198808

sub91111-41040

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-22030iLX70..TD198408-198808

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-22030iLX70..TD198408-198808

48836RBRACKET, REAR STABILIZER END, RH

main48825-22020iLX70..TD198408-198808

48837RBRACKET, REAR STABILIZER END, LH

main48825-22020iLX70..TD198408-198808

9011910355

main90119-10355

9017014012

main90170-14012

9017016005

main90170-16005

9020114006

main90201-14006

9020115019

main90201-15019

9161160812

main91611-60812

9161561230

main91615-61230

9161640820

main91616-40820

9161661025

main91616-61025

9411041000

main94110-41000

9418360800

main94183-60800

9418461400

main94184-61400

9461111600

main94611-11600

9461212000

main94612-12000

47 parts on this diagram · 2 diagrams in section
