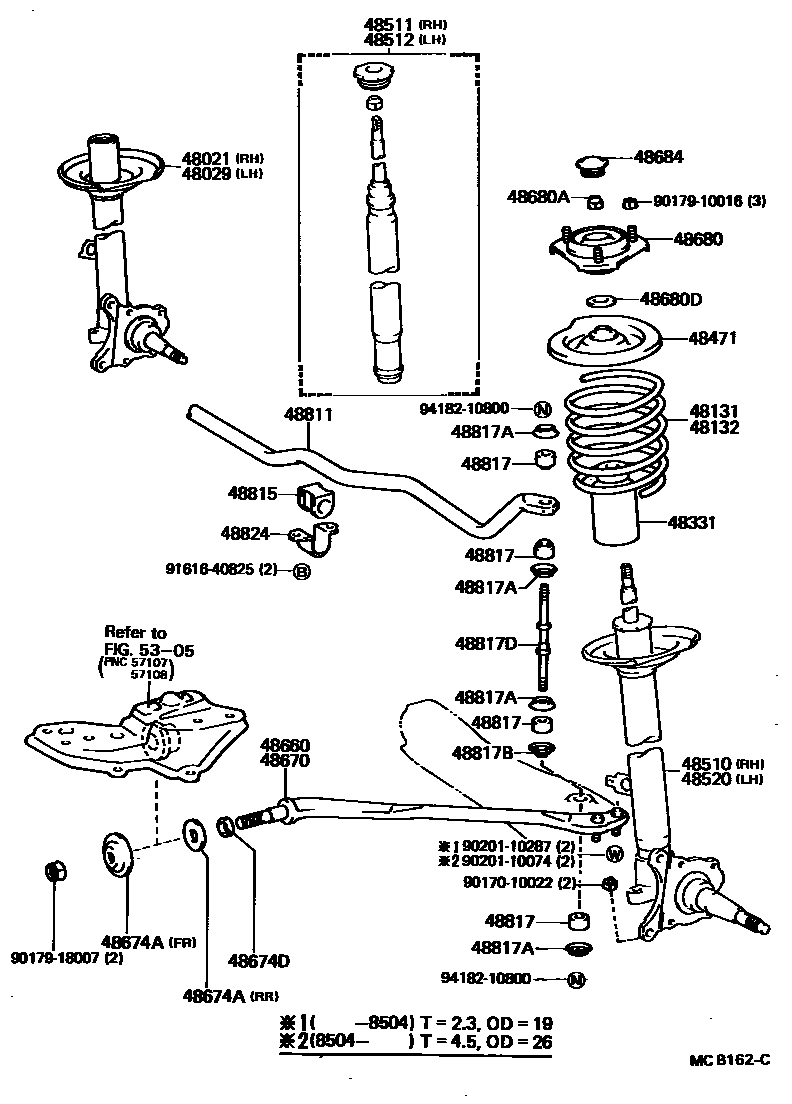

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-22070iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT198408-198808

main48021-22090iGX71..TWC198408-198808

main48021-22100iGX71..4FC..TWC198408-198808

W/ESC

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-22070iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT198408-198808

main48029-22090iGX71..TWC198408-198808

main48029-22100iGX71..4FC..TWC198408-198808

W/ESC

48131SPRING, FRONT COIL, RH

main48131-2A210iGX71..SDX¥9,200198408-198808

main48131-2A220iGX71..SLU¥10,000198408-198808

main48131-2A240iLX70..TD¥10,800198408-198808

main48131-2A260iMX71¥10,000198408-198808

main48131-2A340iLX70..DSL¥10,200198408-198808

main48131-2A390iSX70¥10,800198408-198808

48132SPRING, FRONT COIL, LH

main48131-2A210iGX71..SDX¥9,200198408-198808

main48131-2A220iGX71..SLU¥10,000198608-198808

main48131-2A230iLX70..TD¥10,800198408-198808

main48131-2A250iGX71..TWT¥9,200198408-198608

main48131-2A260iGX71..TWT¥10,000198608-198808

main48131-2A310iGX71..SDX¥8,700198408-198608

sub48131-2A210¥9,200

main48131-2A330iLX70..DSL¥9,800198408-198808

main48131-2A380iSX70¥10,100198408-198808

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT¥1,000198408-198808

main48331-24010iGX71..TWC¥3,520198408-198808

48471SEAT, FRONT SPRING, UPPER

main48044-24010iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT¥3,280198408-198808

main48044-24020iGX71..TWC¥4,480198408-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-22210iGX71,LX70,SX70..CBR,DSL,EFI¥34,600198408-198808

sub48510-22211¥34,700

main48510-22230iGX71..TWC¥48,600198604-198808

sub48510-22281¥48,500

main48510-22230iGX71..TWC¥48,600198408-198604

KYB

sub48510-22281¥48,500

main48510-22250iGX71..TWC¥48,600198408-198604

W/ESC,KYB

sub48510-22260¥48,600

main48510-22260iGX71..4FC..TWC¥48,600198604-198808

W/ESC

sub48510-22261¥48,500

main48510-22260iGX71..TWC¥48,600198408-198604

W/ESC,TOKIKO

sub48510-22261¥48,500

main48510-22270iGX71..TWC¥48,600198408-198604

TOKICO

sub48510-22230¥48,600

main48510-22300iLX70,MX71..TBO,TD¥35,100198408-198808

sub48510-22210¥34,600

main48510-22310iGX71..TWT¥34,700198510-198808

sub48510-22220¥34,600

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-29215iGX71..TWC¥28,900198408-198808

main48511-29255iLX70,MX71,SX70..CBR,TBO,TD¥14,600198408-198808

sub48511-29265¥14,700

main48511-29265iGX71,LX70..DSL,EFI¥14,700198408-198808

main48511-29275iGX71..TWT¥14,400198510-198601

sub48511-29265¥14,700

main48511-29335iGX71..TWT¥14,700198601-198808

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-29215iGX71..TWC¥28,900198408-198808

main48511-29255iLX70,MX71,SX70..CBR,TBO,TD¥14,600198408-198808

sub48511-29265¥14,700

main48511-29265iGX71,LX70..DSL,EFI¥14,700198408-198808

main48511-29275iGX71..TWT¥14,400198510-198601

sub48511-29265¥14,700

main48511-29335iGX71..TWT¥14,700198601-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-22210iGX71,LX70,SX70..CBR,DSL,EFI¥34,600198408-198808

sub48520-22211¥34,700

main48520-22230iGX71..TWC¥48,600198408-198604

KYB

sub48520-22281¥48,500

main48520-22230iGX71..TWC¥48,600198604-198808

sub48520-22281¥48,500

main48520-22250iGX71..TWC¥48,600198408-198604

W/ESC,KYB

sub48520-22260¥48,600

main48520-22260iGX71..TWC¥48,600198408-198604

W/ESC,TOKIKO

sub48520-22261¥48,500

main48520-22260iGX71..4FC..TWC¥48,600198604-198808

W/ESC

sub48520-22261¥48,500

main48520-22270iGX71..TWC¥48,600198408-198604

TOKICO

sub48520-22230¥48,600

main48520-22300iLX70,MX71..TBO,TD¥35,100198408-198808

sub48520-22210¥34,600

main48520-22310iGX71..TWT¥34,700198510-198808

sub48520-22220¥34,600

48660BAR ASSY, STRUT, RH

main48660-22060iGX71,LX70,MX71,SX70¥4,680198408-198504

sub48660-22070¥4,680

main48660-22070iGX71,LX70,MX71,SX70¥4,680198504-198808

48670BAR ASSY, STRUT, LH

main48670-22060iGX71,LX70,MX71,SX70¥4,680198408-198504

sub48670-22070¥4,680

main48670-22070iGX71,LX70,MX71,SX70¥4,680198504-198808

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02079iGX71,LX70,MX71,SX70¥670198408-198808

T=3.8(FR)

main90948-02080iGX71,LX70,MX71,SX70¥400198408-198808

T=3.2(RR)

48674DSPACER(FOR STRUT BAR CUSHION)

main90560-18006iGX71,LX70,MX71,SX70¥230198408-198808

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-22070iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT¥4,770198408-198808

main48609-24020iGX71..TWC¥7,400198408-198808

sub48609-22080¥7,400

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iGX71,LX70,MX71,SX70¥310198408-198808

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT¥260198408-198808

48684COVER, BEARING DUST

main48684-14020iGX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT¥230198408-198808

48811BAR, STABILIZER, FRONT

main48811-22230iGX71..TWC¥9,800198408-198808

main48811-22240iSX70..KYO¥8,900198408-198808

main48811-22250iLX70..KYO¥9,200198408-198808

W/POWER STEERING

main48811-22260iGX71..EFI¥10,000198408-198808

W/POWER STEERING

main48811-22270iMX71¥10,200198408-198808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22040iSX70..KYO¥820198408-198808

main48815-22050iLX70..KYO¥820198408-198808

W/POWER STEERING

main48815-22060iGX71..EFI¥800198408-198808

W/POWER STEERING

main48815-22070iGX71,MX71..TBO,TWC,TWT¥740198408-198808

sub48815-22150¥620

48817CUSHION, FRONT STABILIZER

main48817-22020iGX71,LX70,MX71,SX70¥510198408-198808

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iGX71,LX70,MX71,SX70¥200198408-198808

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iGX71,LX70,MX71,SX70¥90198408-198808

48817DBOLT(FOR FRONT STABILIZER)

main48819-24010iGX71,LX70,MX71,SX70¥510198408-198808

48824BRACKET, STABILIZER, FRONT

main48824-22060iGX71,LX70,MX71,SX70¥560198408-198808

5305

9017010022

main90170-10022¥140

9017910016

main90179-10016¥130

9017918007

main90179-18007¥310

9020110074

main90201-10074¥260

9020110287

main90201-10287¥170

9161640825

main91616-40825¥220

9418210800

main94182-10800¥230

33 parts on this diagram · 3 diagrams in section
