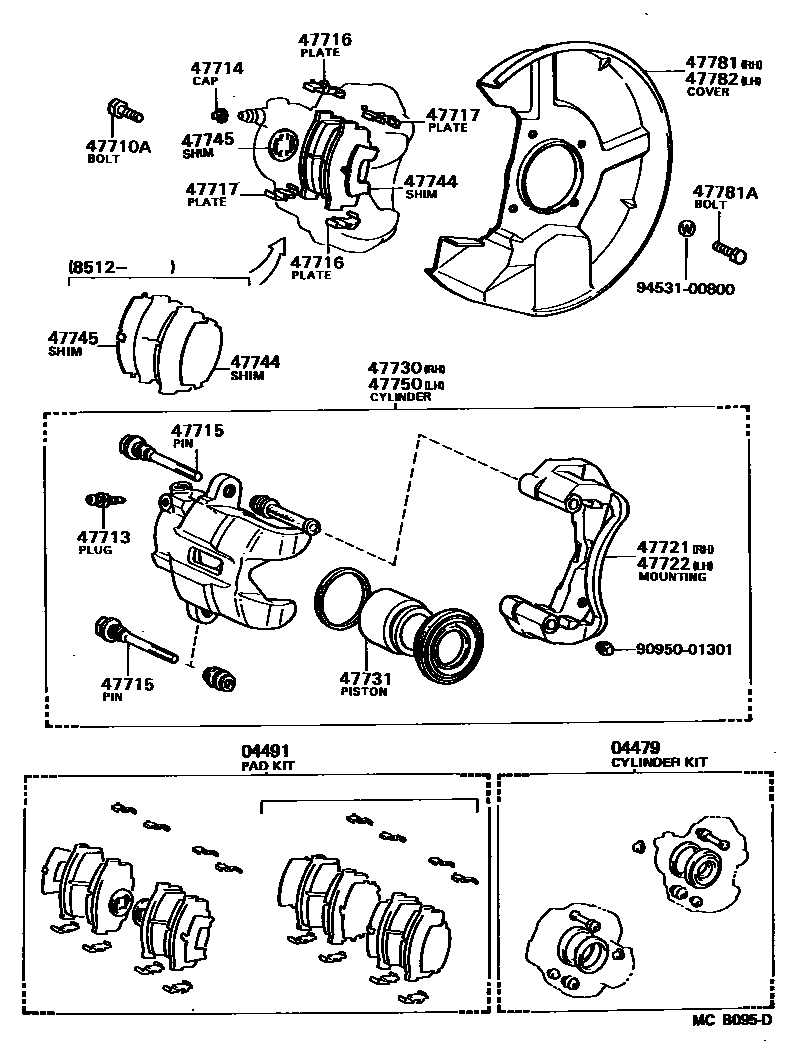

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iGX71,LX70,MX71,SX70198408-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-22161iGX71..EFI,TWC198408-198512

MARK=M2231

sub04491-22162

main04491-22162iGX71..EFI,TWC198604-198808

MARK=M2231

sub04465-22140

main04491-22181iGX71..TWT198604-198704

MARK=M2243

sub04465-22210

main04491-22190iGX71..TWT198510-198604

MARK=M2243

sub04491-22181

main04491-22200iGX71..EFI,TWC198512-198604

MARK=M2231

sub04491-22162

main04491-22220iGX71..TWT198704-198808

MARK=M2238

sub04465-22140

main04491-22230iGX71..SLU198701-198808

sub04465-22140

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iGX71,LX70,MX71,SX70198408-198808

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iGX71,LX70,MX71,SX70198408-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGX71,LX70,MX71,SX70198408-198808

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-22010iGX71,LX70,MX71,SX70198408-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010iGX71,LX70,MX71,SX70198408-198808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22010iGX71,LX70,MX71,SX70198408-198808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22050iGX71,LX70,SX70..CBR,DSL,EFI,TD198408-198808

main47721-22060iGX71..SLU198408-198808

main47721-22070iGX71..TWT198510-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22030iGX71,LX70,SX70..CBR,DSL,EFI,TD198408-198808

main47722-22040iGX71..SLU198408-198808

main47722-22050iGX71..TWT198510-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22150iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

sub47730-22151

main47730-22160iGX71,MX71..TBO,TWC198408-198808

main47730-22170iGX71..TWT198510-198808

47731PISTON, FRONT DISC BRAKE

main47731-22010iGX71,LX70,MX71,SX70198408-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22040iGX71,LX70,MX71,SX70198408-198512

main47744-22070iGX71,LX70,SX70198512-198704

main47744-22071iGX71..GT,SDX198701-198808

main47744-22081iGX71..SLU198701-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-22050iGX71,LX70,MX71,SX70198408-198512

main47745-22040iGX71,LX70,SX70198512-198701

main47745-22041iGX71,LX70,SX70198701-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22150iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

sub47750-22151

main47750-22160iGX71,MX71..TBO,TWC198408-198808

main47750-22170iGX71..TWT198510-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-22010iGX71..4FC..TWC198408-198808

W/ESC

main47781-22100iGX71..TWT198510-198808

main47781-24010iGX71,LX70,MX71,SX70..KYO,SCM,SDX,SLU198408-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iGX71,LX70,MX71,SX70198408-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-22010iGX71..4FC..TWC198408-198808

W/ESC

main47782-22100iGX71..TWT198510-198808

main47782-24010iGX71,LX70,MX71,SX70..KYO,SCM,SDX,SLU198408-198808

9095001301

main90950-01301

9453100800

main94531-00800

20 parts on this diagram · 2 diagrams in section
