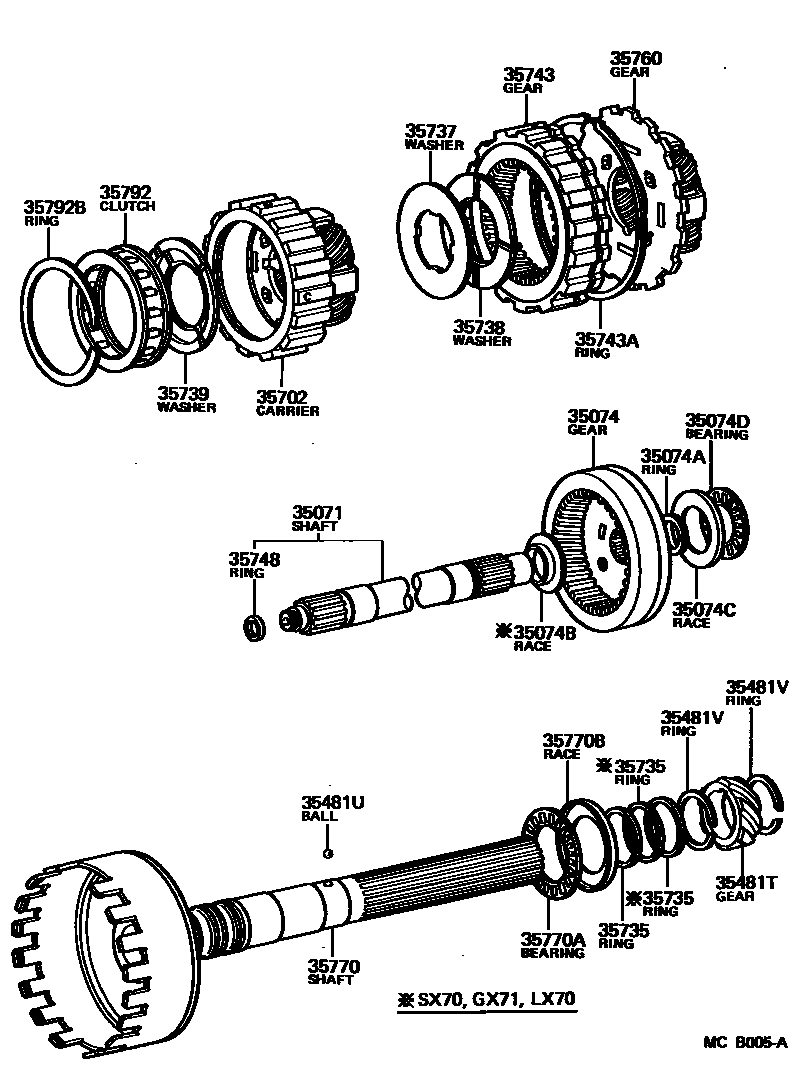

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1 0002 1

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35708-30021iSX70..4FC198408-198808

main35708-30031iGX71..4FC..(EFI,TWC)198408-198808

main35708-30041iLX70,MX71..4FC198408-198808

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-30010iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198808

main35074-30030iLX70,MX71..4FC198408-198808

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iGX71,LX70,SX70..4FC..(SCM,SDX,SLU)198408-198808

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-25020iGX71..4FC..TWC198408-198607

main33481-25021iGX71..4FC..TWC198607-198808

main33481-26010iGX71,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD)198408-198607

main33481-26011iGX71,LX70,SX70..4FC..(CBR,EFI,TD)198607-198808

main33481-30070iGX71..4FC..TWT198510-198808

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iGX71,LX70,MX71,SX70..4FC198408-198808

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iGX71,LX70,MX71,SX70..4FC198408-198808

main90520-29004iGX71,MX71..4FC..(TBO,TWC)198408-198808

35702CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR

main35704-22030iGX71,SX70..4FC..(CBR,EFI,TWC)198601-198808

main35704-30020iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198601

sub35704-22030

main35704-30030iLX70..4FC198408-198808

main35704-30040iMX71198408-198510

35735RING, PLANETARY OUTPUT SNAP

main35735-22010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010iGX71,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

main35737-30020iLX70..4FC198408-198808

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198808

main35738-30010iLX70..4FC198408-198808

main35738-30030iMX71198408-198510

main35739-30030iGX71..4FC..TWT198510-198808

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-14010iGX71..4FC..TWC198408-198808

main35739-22011iGX71,SX70..4FC..(CBR,EFI)198408-198808

main35739-30010iLX70..4FC198408-198808

main35739-30020iMX71198408-198510

35743GEAR, FRONT PLANETARY RING

main35743-22010iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198808

main35743-30010iLX70,MX71..4FC198408-198808

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35760GEAR ASSY, REAR PLANETARY

main35705-30010iGX71..4FC..TWT198510-198808

main35760-30010iGX71,SX70..4FC198408-198508

sub35760-30020

main35760-30020iGX71,SX70..4FC..(CBR,EFI,TWC)198508-198808

main35760-30030iLX70..4FC198408-198808

main35760-30040iMX71198408-198510

35770SHAFT ASSY, OUTPUT

main35770-14010iGX71,SX70..4FC..(CBR,EFI)198408-198508

sub35770-14020

main35770-14020iGX71,SX70..4FC..(CBR,EFI)198508-198808

main35770-24010iGX71..4FC..TWC198408-198508

sub35770-30030

main35770-30010iLX70..4FC198408-198808

main35770-30030iMX71198408-198808

sub35770-53010

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35792CLUTCH, 1 WAY, NO.2

main35792-20010iGX71,SX70..4FC..(CBR,EFI)198408-198808

sub35792-30011

sub35739-14010

main35792-30011iGX71,LX70..4FC..(TD,TWC)198408-198808

main35792-30030iMX71198408-198510

main35792-30040iGX71..4FC..TWT198510-198601

sub35792-30042

main35792-30042iGX71..4FC..TWT198601-198808

sub35792-14020

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

main90521-87001iGX71..4FC..TWT198510-198808

23 parts on this diagram · 2 diagrams in section
