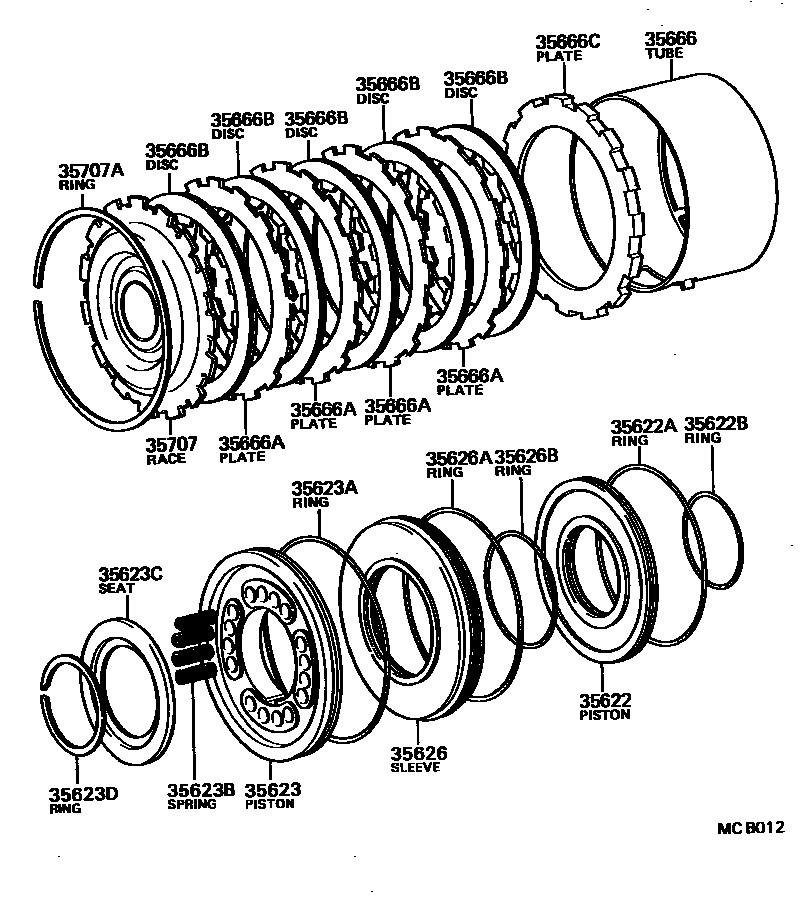

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1 0002 1

35622PISTON, BRAKE, NO.2

main35622-22010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35623PISTON, BRAKE, NO.3

main35623-22010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35626SLEEVE, BRAKE REACTION

main35626-22010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

main35626-30020iGX71..4FC..TWT198510-198808

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iGX71,LX70,MX71,SX70..4FC198408-198808

sub90301-67005

35666TUBE, BRAKE APPLY

main35666-26010iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198808

main35666-30010iLX70,MX71..4FC198408-198808

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22080iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198703

main35647-22010iGX71,LX70,SX70..4FC..(SCM,SDX,SLU)198703-198808

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30030iSX70..4FC198408-198708

sub35633-30050

main35633-30050iSX70..4FC198708-198808

sub35633-30060

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30010iGX71,SX70..4FC198408-198508

sub35707-30020

main35707-30020iGX71,SX70..4FC..(CBR,EFI,TWC)198508-198808

main35707-30030iLX70..4FC198408-198808

main35707-30040iMX71198408-198510

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

17 parts on this diagram · 2 diagrams in section
