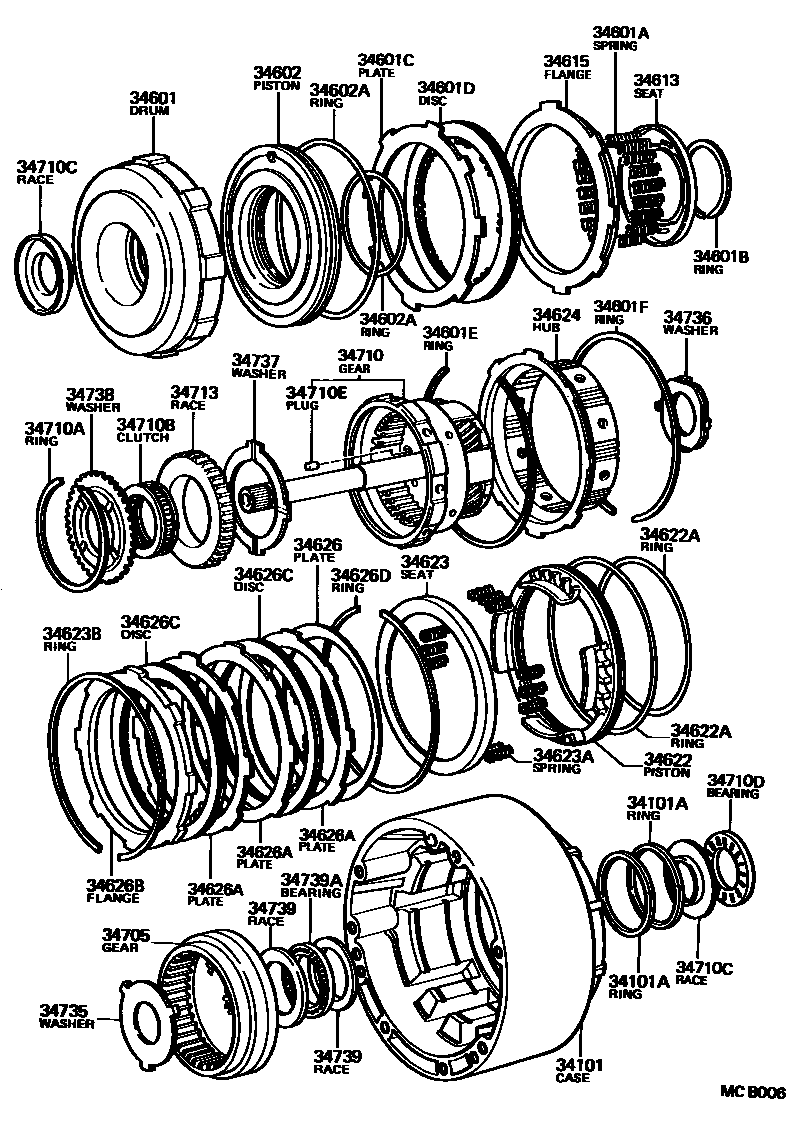

OVERDRIVE GEAR (ATM)

0001 1 0002 1 0003 1

34101CASE SUB-ASSY, OVERDRIVE

main34101-30042iSX70..4FC198408-198808

main34101-30062iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

sub34101-22020

sub35617-43010

34101ARING, OIL SEAL (FOR OVERDRIVE CASE)

main35617-16010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30011iSX70..4FC198408-198808

main34601-30022iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

main34601-30030iGX71..4FC..TWT198510-198808

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34601CPLATE, CLUTCH (FOR OVERDRIVE)

main34618-30010iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198508-198808

main35634-30070iGX71,LX70,MX71,SX70..4FC198408-198808

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30030iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

sub35677-30160

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30011iGX71,LX70,MX71,SX70..4FC198408-198808

main34602-30020iGX71..4FC..TWT198510-198808

main34602-30030iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198508-198808

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

INNER

main90301-65005iGX71..4FC..TWT198510-198808

INNER

sub90301-65006

main90301-99016iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

OUTER

main90301-99036iGX71..4FC..TWT198510-198808

OUTER

sub90301-99086

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34615FLANGE, OVERDRIVE CLUTCH

main34615-30010iSX70..4FC198408-198808

main34615-30020iGX71..4FC..TWT198510-198808

sub34615-50050

main34615-30030iGX71..4FC..TWT198510-198808

sub34615-50040

main34615-30040iGX71..4FC..TWT198510-198808

sub34615-50030

main34615-30050iGX71..4FC..TWT198510-198808

sub34615-22030

main34615-30060iGX71..4FC..TWT198510-198808

sub34615-22020

main34615-30070iGX71..4FC..TWT198510-198808

sub34615-22010

main35675-22010iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198508-198808

sub35675-22140

34622PISTON, OVERDRIVE BRAKE

main34622-30010iSX70..4FC198408-198808

main34622-30020iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198605

sub34622-30040

main34622-30030iGX71..4FC..TWT198510-198808

main34622-30040iGX71,LX70..4FC..(EFI,TD,TWC)198605-198808

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

INNER

sub90301-99103

main90301-99009iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

OUTER

sub90301-99111

main90301-99015iSX70..4FC198408-198808

INNER

main90301-99035iGX71..4FC..TWT198510-198808

INNER,ID=131.6

sub90301-99087

main90301-99037iGX71..4FC..TWT198510-198808

0UTER,ID=145.6

main90301-99192iSX70..4FC198408-198808

OUTER

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30010iSX70..4FC198408-198808

main34623-30020iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671iGX71,LX70,SX70..4FC..(CBR,EFI,TD)198408-198808

main90501-11023iGX71..4FC..EFI198408-198808

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

main90521-99139iSX70..4FC198408-198808

34624HUB, OVERDRIVE BRAKE

main34624-30010iSX70..4FC198408-198808

main34624-32010iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

sub34624-26010

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30020iSX70..4FC198408-198808

main34626-30050iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

34626APLATE, CLUTCH (FOR OVERDRIVE)

main34634-30010iGX71,MX71..4FC..(TBO,TWC)198408-198808

T=2.3

main35634-22060iSX70..4FC198408-198808

main35634-30080iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

T=2.0

34626BFLANGE, REAR CLUTCH (FOR OVERDRIVE)

main34625-26010iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

sub34625-22020

main35675-22010iSX70..4FC198408-198808

sub35675-22140

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-30030iSX70..4FC198408-198808

sub35677-30160

main35677-30040iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

sub35677-43010

34626DRING, HOLE SNAP (FOR OVERDRIVE)

main90521-99004iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

main90521-99139iSX70..4FC198408-198808

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-14010iSX70..4FC198508-198808

main34705-30010iSX70..4FC198408-198508

sub34705-14010

main34705-30020iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198607

sub34705-30021

main34705-30021iGX71,LX70..4FC..(EFI,TD,TWC)198607-198808

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iGX71,MX71..4FC..(SDX,SLU)198408-198808

main34710-22010iSX70..4FC198408-198808

main34710-30022iLX70..4FC198408-198808

main34710-30030iGX71..4FC..TWT198510-198808

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-79148iSX70..4FC198408-198808

main90521-99003iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)

main35791-30020iSX70..4FC198408-198808

main35791-30030iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30010iSX70..4FC198408-198808

FR

main34739-30031iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

CTR

main34739-30041iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

FR

main35789-22010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

RR

main35789-30050iGX71..4FC..TWT198510-198808

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

RR

main90374-24001iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

CTR

main90374-25005iGX71..4FC..TWT198510-198808

RR

main90374-28008iGX71..4FC..TWT198510-198808

FR

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30010iSX70..4FC198408-198808

main34713-30020iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

main34713-32010iGX71..4FC..TWT198510-198808

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30010iSX70..4FC198408-198808

main34737-30020iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

main34737-30030iGX71..4FC..TWT198510-198808

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30010iSX70..4FC198408-198808

main34738-30020iGX71,LX70,MX71..4FC..(SCM,SDX,SLU)198408-198808

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

FR

main35789-22030iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

RR

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGX71,LX70,MX71,SX70..4FC..(SCM,SDX,SLU)198408-198808

38 parts on this diagram · 3 diagrams in section
