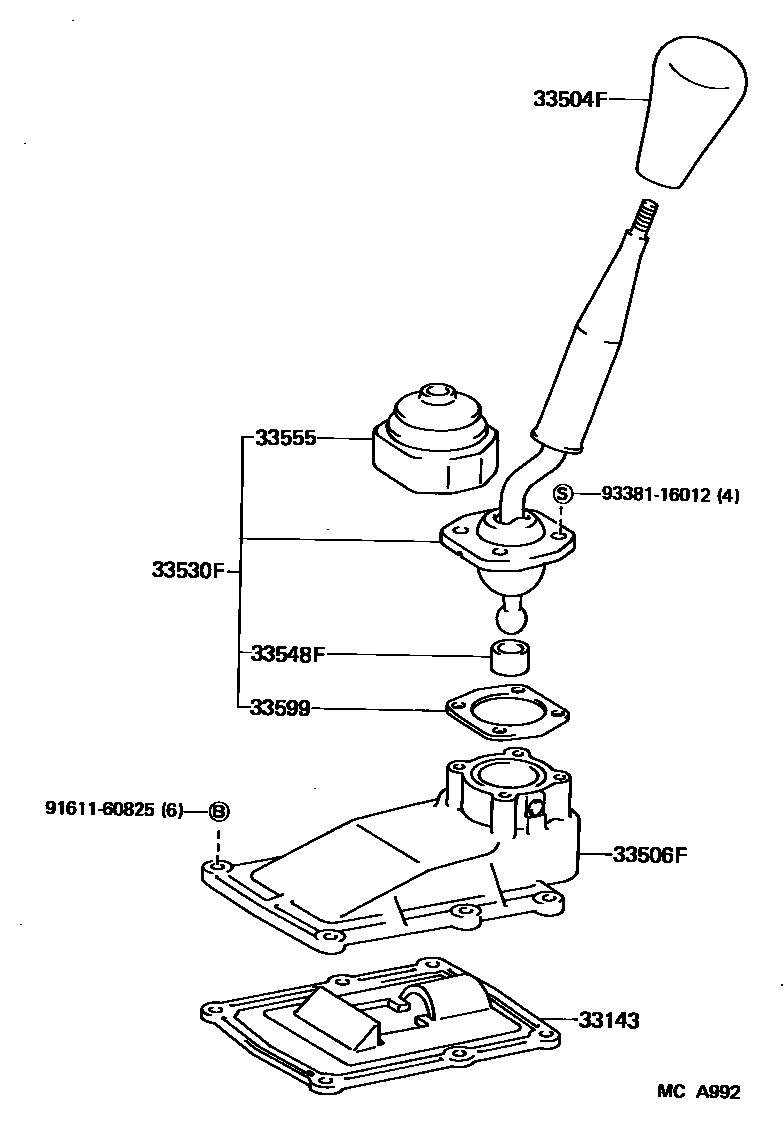

SHIFT LEVER & RETAINER

0001 1 0002 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGX71,LX70,SX70..5F198408-198808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-25iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD)198408-198605

BEIGE,BEIGE,TRIM4#

main33504-24010-32iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD)198408-198608

MAROON,MAROON,TRIM3#

main33504-24010-40iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD)198605-198608

BEIGE,BEIGE,TRIM4#

main33504-24010-52iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD)198608-198711

MAROON,MAROON,TRIM3#

main33504-24010-53iGX71,LX70,SX70..5F..(CBR,DSL,EFI,TD)198408-198608

GRAY,COOL GRAY,TRIM1#

main33504-24010-54iGX71,LX70,SX70..5F..(CBR,DSL,EFI,TD)198608-198711

BLUE,DARK BLUE,TRIM8#

main33504-24010-55iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD)198608-198711

BEIGE,DARK BEIGE,TRIM4#

main33504-24020-15iGX71..5F..SLU..EFI198504-198608

BEIGE,EXCEED,BEIGE,TRIM4#

sub33504-22140

main33504-24020-22iGX71..5F..SLU..EFI198504-198608

MAROON,EXCEED,MAROON,TRIM3#

sub33504-22140

main33504-24020-23iGX71..5F..SLU..EFI198504-198608

GRAY,EXCEED,COOL GRAY,TRIM1#

sub33504-22140

main33504-24020-24iGX71..5F..(TWC,TWT)198608-198808

BLUE,DARK BLUE,TRIM8#

sub33504-22140

main33504-24020-25iGX71..SLU..EFI198711-198806

sub33504-22140

main33504-24020-42iGX71..5F..(TWC,TWT)198608-198808

MAROON,MAROON,TRIM3#

sub33504-22140

main33542-30130-03iGX71,LX70,MX71,SX70..4FC198408-198608

GRAY,COOL GRAY,TRIM1#

main33542-30130-12iGX71,LX70,MX71,SX70..4FC198408-198608

MAROON,MAROON,TRIM3#

main33542-30130-15iGX71,LX70,MX71,SX70..4FC198408-198608

BEIGE,BEIGE,TRIM4#

main33542-30130-22iGX71,LX70,SX70..4FC198608-198808

MAROON,MAROON,TRIM3#

main33542-30130-24iGX71,LX70,SX70..4FC198608-198808

BLUE,DARK BLUE,TRIM8#

main33542-30130-25iGX71,LX70,SX70..4FC198608-198808

BEIGE,BEIGE,TRIM4#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-22070iGX71..5F198408-198808

sub33570-30010

main33570-22080iLX70,SX70..5F198408-198808

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-22180iGX71..5F198408-198808

sub33530-22181

main33530-22230iLX70,SX70..5F198408-198808

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGX71,LX70,SX70..5F198408-198808

33555BOOT, SHIFT LEVER

main33555-22050iGX71,LX70,SX70..5F198408-198808

main33555-22070iGX71,LX70,MX71,SX70..4FC198408-198808

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGX71,LX70,SX70..5F198408-198808

9161160825

main91611-60825

9338116012

main93381-16012

9 parts on this diagram · 2 diagrams in section
