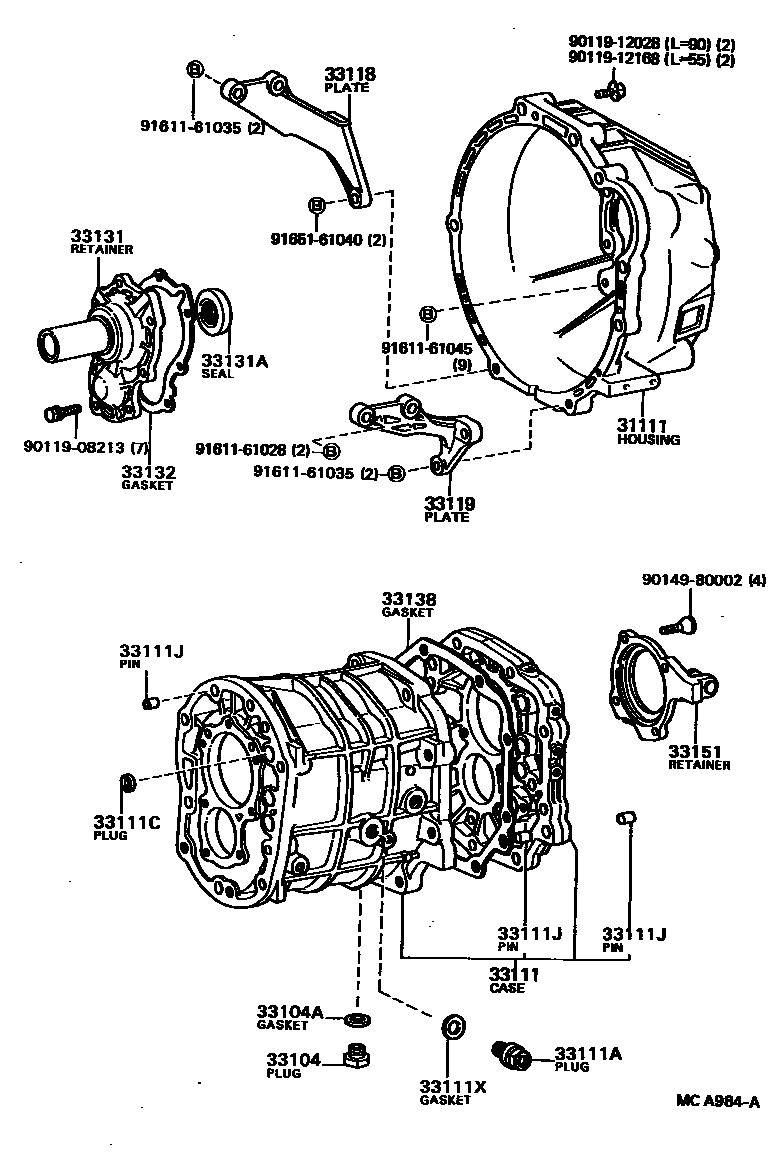

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111XGASKET, TRANSMISSION CASE PLUG
33131RETAINER, BEARING, FRONT(MTM)
sub33131-22021
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33138GASKET, INTERMEDIATE PLATE
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908213
main90119-08213
9011912028
main90119-12028
9011912168
main90119-12168
9014980002
main90149-80002
9161161028
main91611-61028
9161161035
main91611-61035
9161161045
main91611-61045
9165161040
main91651-61040
23 parts on this diagram · 3 diagrams in section
