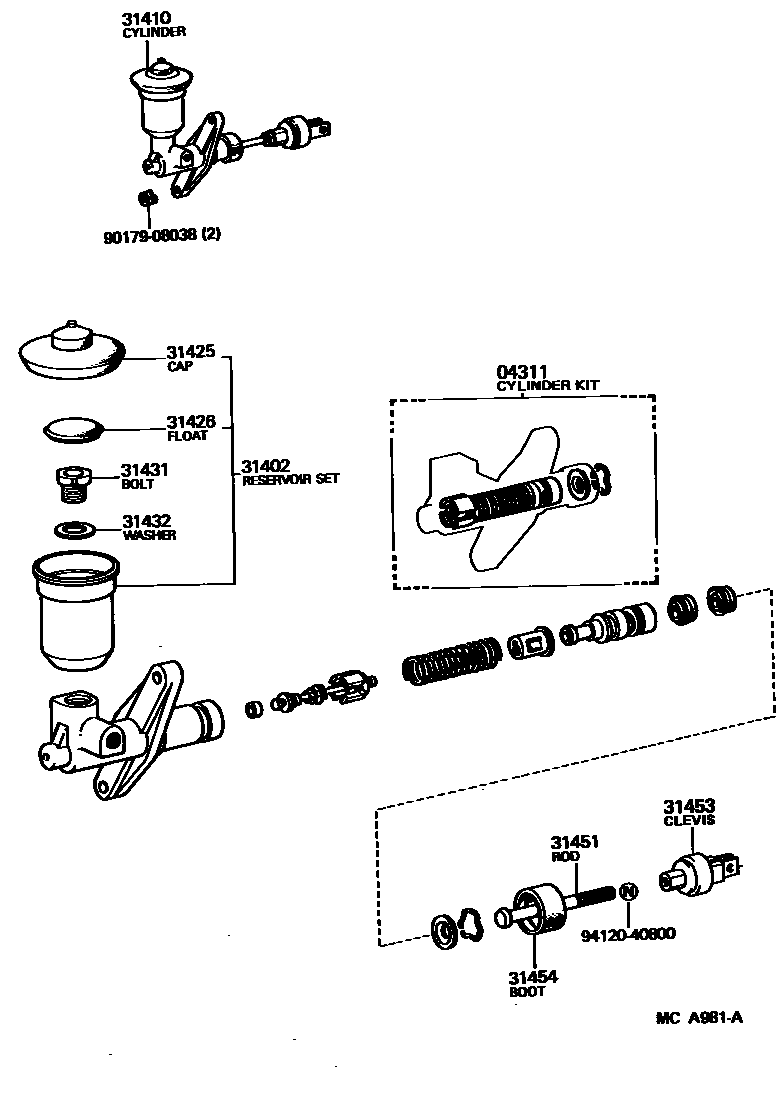

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-14021iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198704-198808

sub04311-14022

main04311-14031iGX71,LX70..5F..(TD,TWC,TWT)198704-198808

sub04311-14032

main04311-22030iGX71,LX70..5F..(TD,TWC,TWT)198408-198704

sub04311-14030

main04311-30080iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198408-198704

sub04311-14020

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-24010iGX71..5F..TWT198510-198808

main31402-30030iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198408-198808

main47202-12050iGX71,LX70..5F..(TD,TWC)198408-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22120iGX71,LX70..5F..(TD,TWC)198408-198502

sub31410-22121

main31410-22121iGX71,LX70..5F..(TD,TWC)198502-198701

sub31410-22122

main31410-22122iGX71,LX70..5F..(TD,TWC)198701-198704

sub31410-22123

main31410-22123iGX71,LX70..5F..(TD,TWC)198704-198808

sub31410-35241

main31410-22130iGX71..5F..TWT198510-198701

sub31410-22131

main31410-22131iGX71..5F..TWT198701-198704

sub31410-22132

main31410-22132iGX71..5F..TWT198704-198808

main31410-22140iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198502-198701

main31410-22141iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198701-198704

sub31410-22142

main31410-22142iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198704-198808

sub31410-22240

main31410-24012iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198408-198502

sub31410-22140

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGX71,LX70,SX70..5F198408-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGX71,LX70,SX70..5F198408-198808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main31427-22010iGX71,LX70..5F..(TD,TWC)198409-198808

main47231-20010iGX71..5F..TWT198510-198808

main47231-30010iGX71,LX70,SX70..5F198408-198808

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iGX71,LX70,SX70..5F198408-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGX71,LX70..5F..(TD,TWC,TWT)198408-198808

main31451-30060iGX71,LX70,SX70..5F..(CBR,DSL,EFI)198408-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iGX71,LX70,SX70..5F..(KYO,SCM,SDX,SLU)198502-198808

sub31404-28012

main31404-30041iGX71,LX70,SX70..5F198408-198502

main31404-36020iGX71..5F..TWT198510-198808

sub31404-36021

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iGX71,LX70,SX70..5F198408-198808

9017908038

main90179-08038

9412040800

main94120-40800

12 parts on this diagram · 2 diagrams in section
