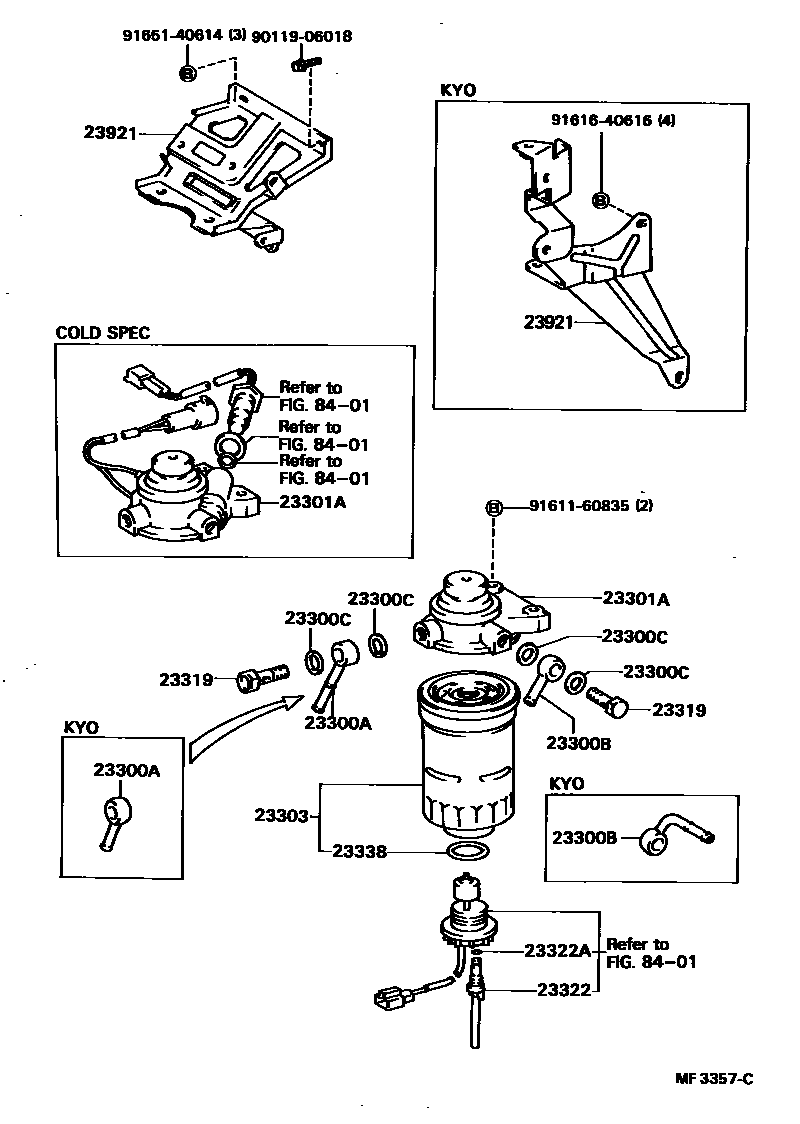

FUEL FILTER

0001 1 0002 1 0003 1

23300FILTER ASSY, FUEL

main23300-26060i1SU..SX70198408-198808

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-54170i2L#..LX70..SCM198408-198606

main90405-08016i2L..LX70..KYO198408-198606

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-54150i2L..LX70..KYO198408-198606

main90405-08016i2L#..LX70..SCM198408-198606

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i2L#..LX70198408-198606

23301ACAP ASSY, FUEL FILTER

main23301-54030i2L#..LX70198408-198606

COLD SPEC

main23301-54060i2L#..LX70..SCM198409-198606

COLD SPEC

main23301-54200i2L#..LX70..SCM198606-198808

COLD SPEC

main23301-54220i2L..LX70..KYO198606-198808

COLD SPEC

main23301-54270i2L#..LX70..SCM198606-198808

main23301-54290i2L..LX70..KYO198606-198808

main23301-64010i2L#..LX70198408-198606

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L#..LX70198408-198808

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i2L#..LX70198408-198606

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L#..LX70198408-198808

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L#..LX70198408-198808

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L#..LX70198408-198808

23921SUPPORT, FUEL FILTER

main23904-54010i2L..LX70..KYO198408-198808

main23921-54140i2L#..LX70..SCM198408-198808

main90461-10007i1SU..SX70198408-198808

8401

9011906018

main90119-06018

9161160835

main91611-60835

9161640616

main91616-40616

9165140614

main91651-40614

16 parts on this diagram · 3 diagrams in section
