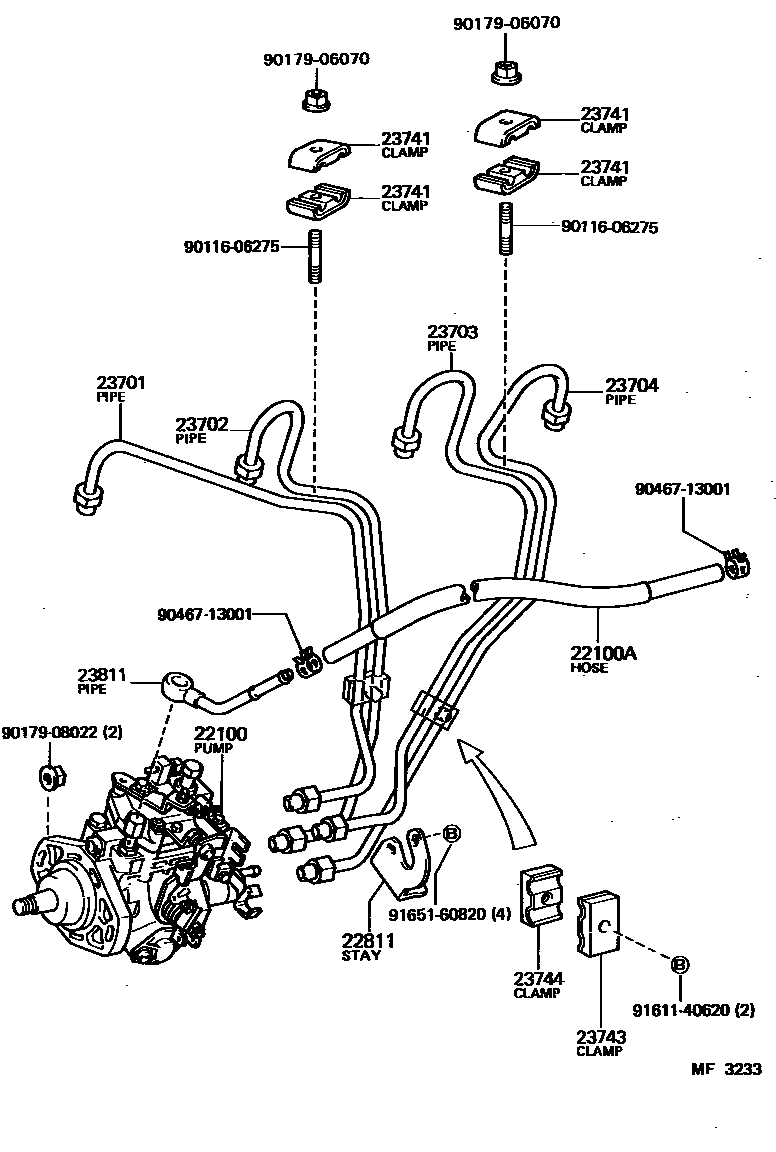

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54450i2L..LX70198408-198607

main22100-54451i2L..LX70198607-198709

main22100-54470i2LT..LX70198408-198607

main22100-54471i2LT..LX70..4FC198607-198808

main22100-54680i2L..LX70198709-198808

main22100-54690i2LT..LX70..5F198709-198808

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14020i2L#..LX70..SCM198408-198808

main90447-14023i2L..LX70..KYO198408-198808

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L#..LX70198408-198607

sub22811-54041

main22811-54060i2L#..LX70198607-198808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54082i2L#..LX70198408-198808

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54081i2L#..LX70198408-198808

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54082i2L#..LX70198408-198808

sub23703-54072

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54082i2L#..LX70198408-198808

sub23704-54072

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2L#..LX70198408-198808

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010i2L#..LX70198408-198808

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010i2L#..LX70198408-198808

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54100i2L#..LX70198408-198808

9011606275

main90116-06275

9017906070

main90179-06070

9017908022

main90179-08022

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

17 parts on this diagram · 1 diagram in section
