STARTER

0001 1 0002 1 0003 1 0004 1 0005 1

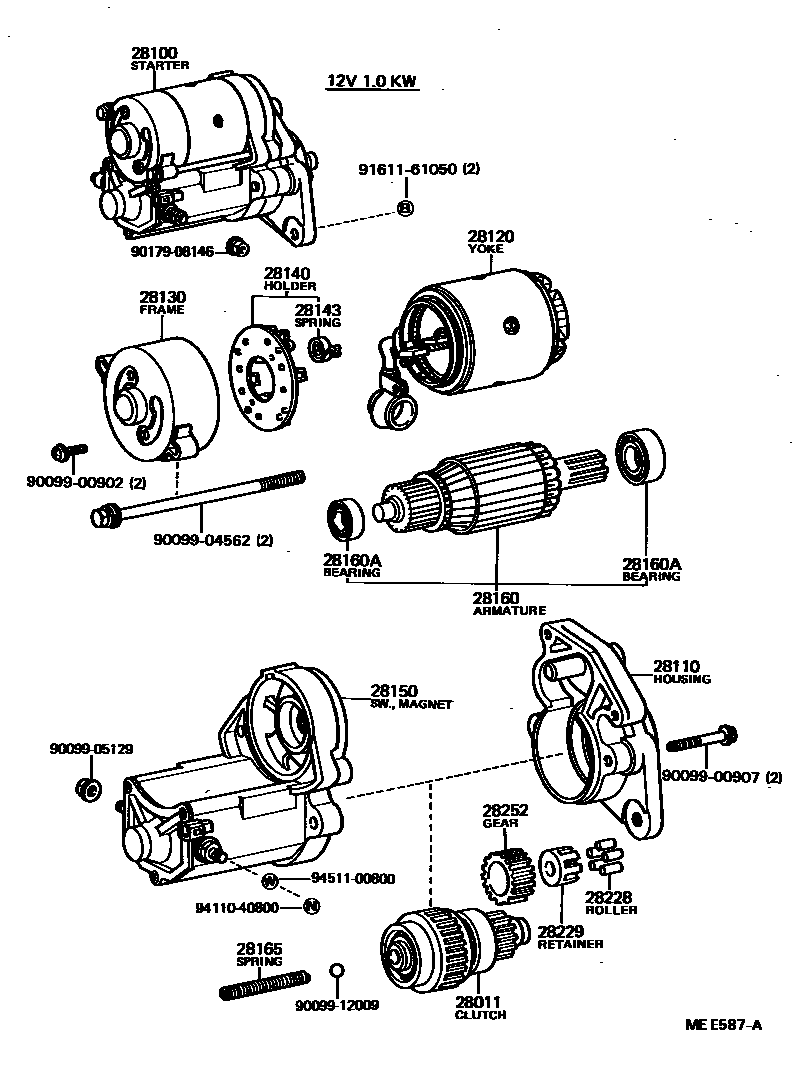

28011CLUTCH SUB-ASSY, STARTER

main28011-15010iMTEU..MX71198408-198510

12V 0.8KW

main28011-26042i1GEU,1GG#,1SU,MTEU..GX71,MX71,SX70198408-198808

12V 1.0KW,1.4KW

main28011-54010i2L#..LX70198408-198808

12V 2.5KW

main28011-54070i2L#..LX70..5F198408-198808

12V 2.0KW

28100STARTER ASSY

main28100-15040i1GEU,1GG#..GX71198408-198808

main28100-41050iMTEU..MX71198408-198510

main28100-45050iMTEU..MX71198408-198510

main28100-54052i2LT..LX70..4FC198408-198808

sub28100-54220

main28100-54061i2L#..LX70198408-198808

sub28100-54220

main28100-54070i2L#..LX70..5F198408-198808

sub28100-54180

main28100-63020i1SU..SX70198408-198808

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GEU,1GG#..GX71198408-198808

12V 1.0KW

main28110-41050iMTEU..MX71198408-198510

12V 0.8KW

main28110-45050iMTEU..MX71198408-198510

12V 1.4KW

main28110-63020i1SU..SX70198408-198808

12V 1.0KW

main28115-54011i2L#..LX70198408-198808

12V 2.5KW

main28115-54070i2L#..LX70..5F198408-198808

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-15010iMTEU..MX71198408-198510

12V 0.8KW

main28120-15090iMTEU..MX71198408-198510

12V 1.4KW

main28120-26071i1GEU,1GG#,1SU..GX71,SX70198408-198808

12V 1.0KW

main28120-54070i2L#..LX70..5F198408-198808

12V 2.0KW

main28120-56081i2L#..LX70198408-198808

12V 2.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15010iMTEU..MX71198408-198510

12V 0.8KW

main28130-15040i1GEU,1GG#..GX71198408-198808

12V 1.0KW

main28130-15090iMTEU..MX71198408-198510

12V 1.4KW

main28130-54060i2L#..LX70198408-198808

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

main28130-63020i1SU..SX70198408-198808

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010iMTEU..MX71198408-198510

12V 0.8KW

main28140-15090iMTEU..MX71198408-198510

12V 1.4KW

main28140-26070i1GEU,1GG#,1SU..GX71,SX70198408-198808

12V 1.0KW

main28140-54070i2L#..LX70..5F198408-198808

12V 2.0KW

main28140-77090i2L#..LX70198408-198808

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112i1GEU,1GG#,1SU,MTEU..GX71,MX71,SX70198408-198808

12V 1.0KW,1.4KW

main90099-17115i2L#..LX70..5F198408-198808

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15070i1GEU,1GG#..GX71198408-198808

12V 1.0KW

main28150-37010iMTEU..MX71198408-198510

12V 0.8KW

sub28150-37011

main28150-45050iMTEU..MX71198408-198510

12V 1.4KW

main28150-54011i2L#..LX70198408-198808

12V 2.5KW

sub28150-54190

main28150-54051i2LT..LX70..4FC198408-198808

12V 2.5KW,COLD SPEC

sub28150-54221

main28150-54070i2L#..LX70..5F198408-198808

12V 2.0KW

sub28150-54110

main28150-63021i1SU..SX70198408-198808

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-15010iMTEU..MX71198408-198510

12V 0.8KW

main28160-15090iMTEU..MX71198408-198510

12V 1.4KW

sub28160-15091

main28160-26070i1GEU,1GG#,1SU..GX71,SX70198408-198808

12V 1.0KW

sub28160-26071

main28160-47040i2L#..LX70198408-198808

12V 2.5KW

sub28160-54140

main28160-54070i2L#..LX70..5F198408-198808

12V 2.0KW

sub28160-54071

28160ABEARING, STARTER ARMATURE

main28253-45020i1GEU,1GG#,1SU..GX71,SX70198408-198808

12V 1.0KW,SMALL TYPE

main28253-54070i2L#..LX70..5F198408-198808

12V 2.0KW,SMALL TYPE

main90099-10107i2L#..LX70198408-198808

12V 2.5KW,LARGE TYPE

main90099-10113i1GEU,1GG#,1SU..GX71,SX70198408-198808

12V 1.0KW,LARGE TYPE

main90099-10119i2L#..LX70198408-198808

12V 2.5KW,SMALL TYPE

main90099-10131i2L#..LX70..5F198408-198808

12V 2.0KW,LARGE TYPE

main90099-10143iMTEU..MX71198408-198510

12V 1.4KW,LARGE TYPE

main90099-10144iMTEU..MX71198408-198510

12V 1.4KW,SMALL TYPE

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1GEU,1GG#,2L,1SU,MTEU..GX71,LX70,MX71,SX70198408-198808

12V 1.0KW,1.4KW,2.0KW

main28165-77090i2L#..LX70198408-198808

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2L#..LX70..5F198408-198808

12V 2.0KW

main28228-26040i2L#..LX70..5F198408-198808

12V 1.0KW,1.4KW

main28228-56080i2L#..LX70198408-198808

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2L#..LX70..5F198408-198808

12V 2.0KW

main28229-26040i2L#..LX70..5F198408-198808

12V 1.0KW,1.4KW

main28229-56080i2L#..LX70198408-198808

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i1GEU,1GG#,1SU,MTEU..GX71,MX71,SX70198408-198808

12V 1.0KW,1.4KW

main28254-54070i2L#..LX70..5F198408-198808

12V 2.0KW

main28254-77090i2L#..LX70198408-198808

12V 2.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 5 diagrams in section
