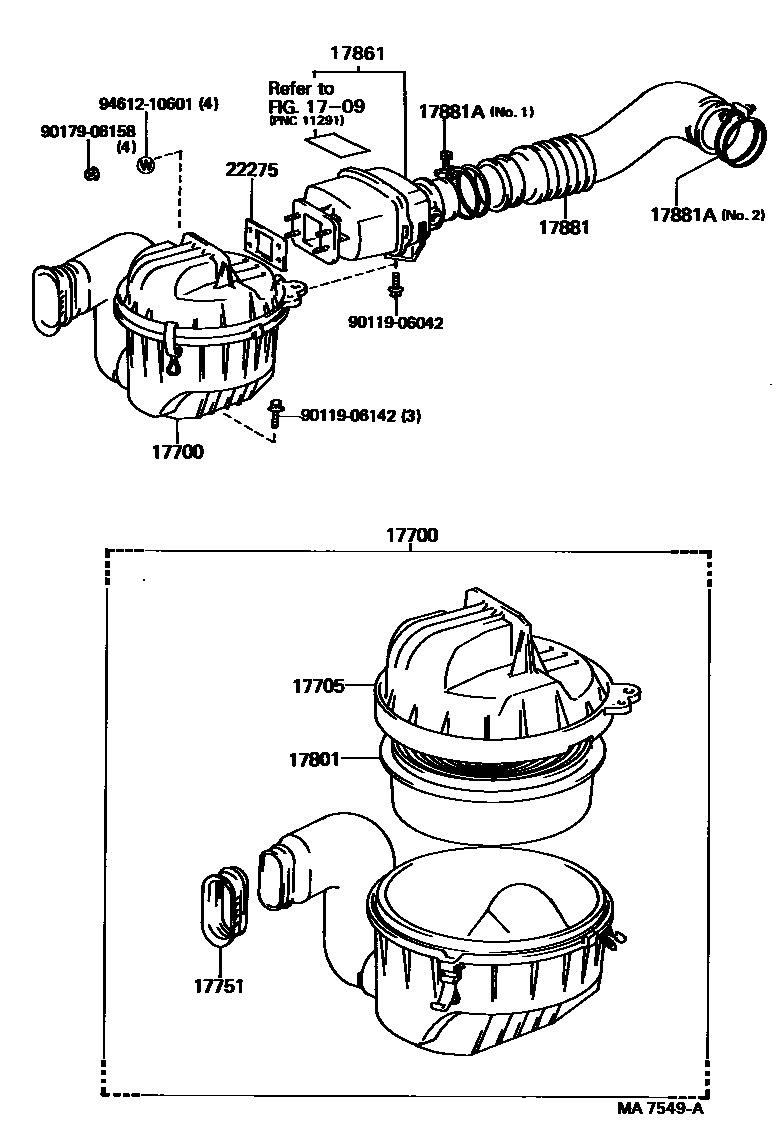

AIR CLEANER
1709
17700CLEANER ASSY, AIR
17751INLET, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
sub90460-65002
FLANGE SIDE,NO.1
PIPE SIDE,NO.1
NO.2
NO.1
ENGINE SIDE
NO.2
PIPE SIDE
PIPE SIDE
ENGINE SIDE
22275GASKET, AIR FLOW METER
9011906042
main90119-06042
9011906142
main90119-06142
9017906158
main90179-06158
9461210601
main94612-10601
13 parts on this diagram · 6 diagrams in section
