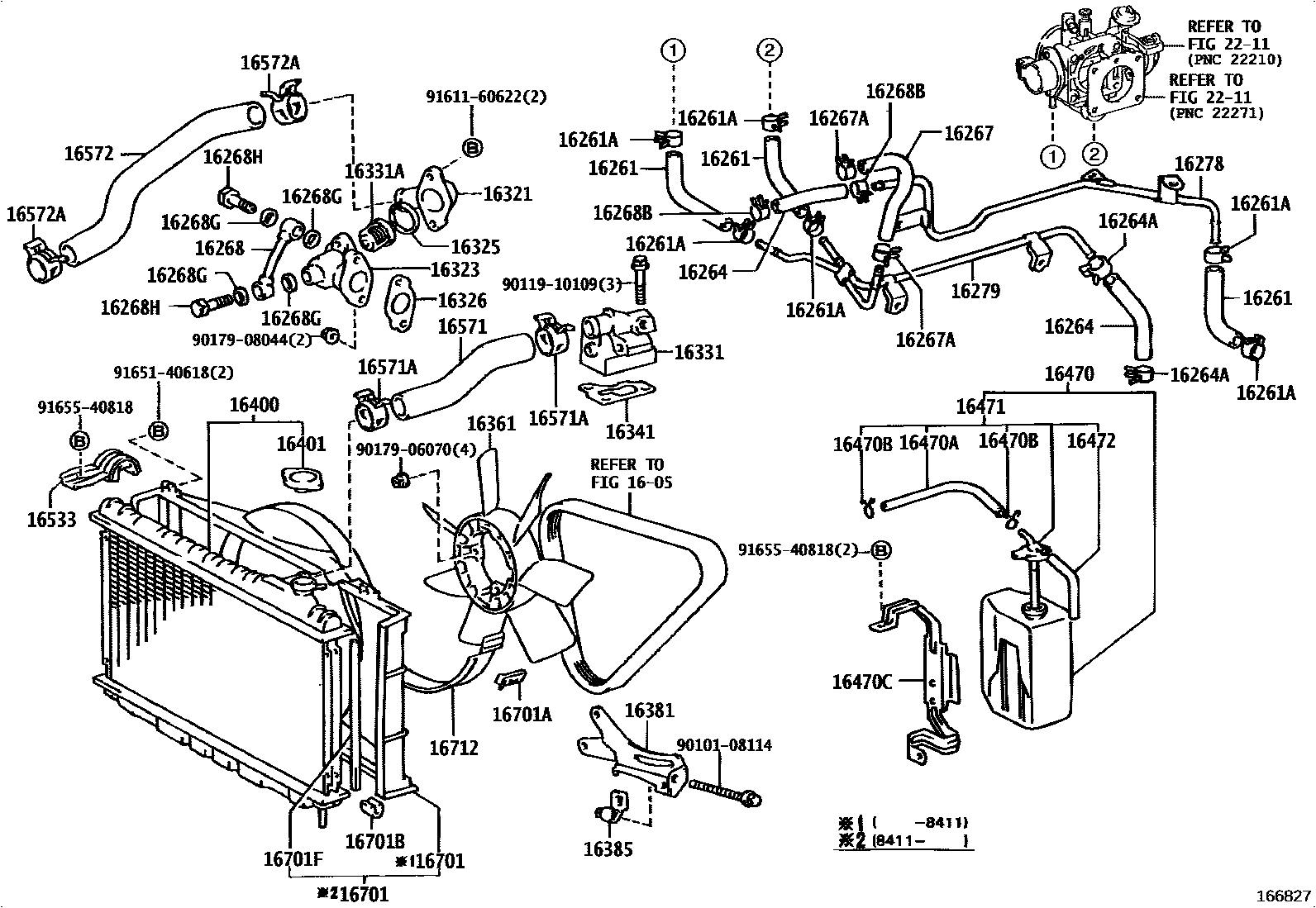

RADIATOR & WATER OUTLET
1605
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51100
sub90467-11009
sub96135-51300
sub96135-51400
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51100
sub90467-11009
sub96135-51300
sub96135-51400
16268GGASKET(FOR WATER BY-PASS PIPE)
WATER PUMP & INTAKE MANIFOLD
TURBO SIDE
16268HBOLT, UNION(FOR WATER BY-PASS PIPE)
WATER PUMP & INTAKE MANIFOLD
TURBO SIDE
16279PIPE, WATER BY-PASS, NO.3
16321INLET, WATER
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16326GASKET, WATER INLET HOUSING, NO.2
sub16326-70012
16385SLIDER, FAN BELT ADJUSTING
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-33003
16572HOSE, RADIATOR, OUTLET
16701ACLIP(FOR FAN SHROUD)
W/COOLER
16701BCUSHION, FAN SHROUD
16701FSEAL(FOR FAN SHROUD)
16712SHROUD, FAN, NO.2
W/COOLER
W/COOLER
2211
9010108114
main90101-08114
9011910109
main90119-10109
9017906070
main90179-06070
9017908044
main90179-08044
9161160622
main91611-60622
9165140618
main91651-40618
9165540818
main91655-40818
49 parts on this diagram · 10 diagrams in section
