HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

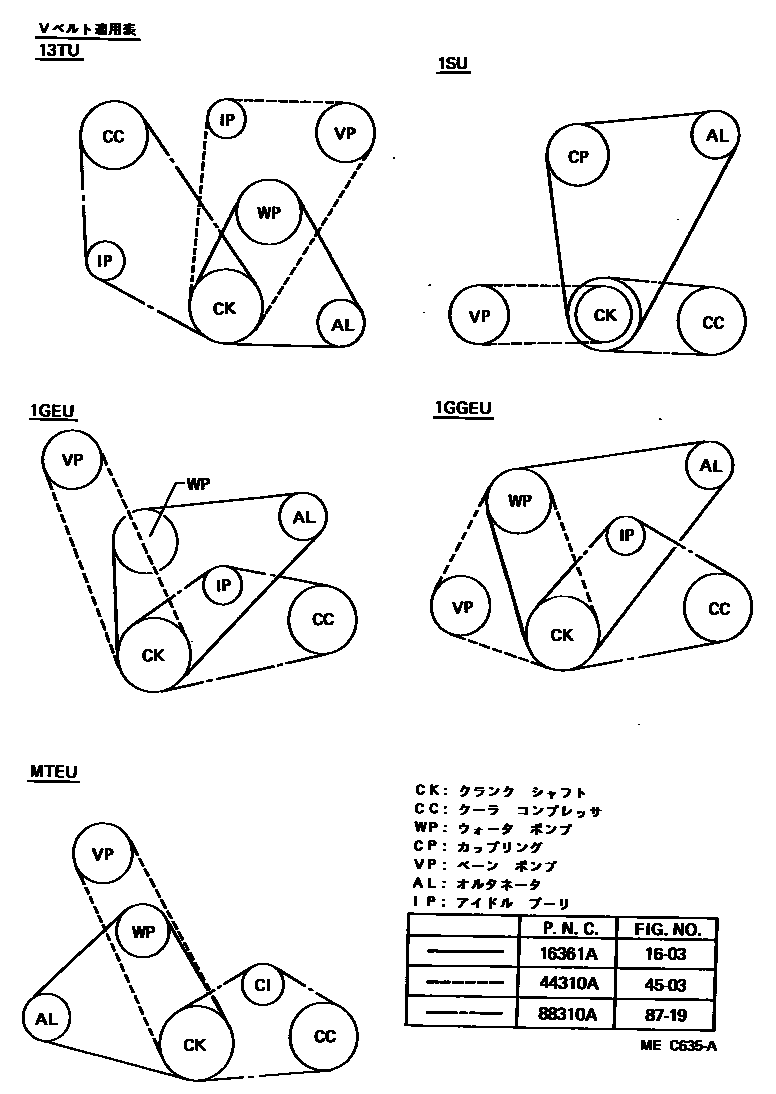

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076iMTEU..MX51,61198110-198308

DOBLE V BELTS,L=925

main90916-02133iL..LX60198308-198407

main99321-00885i13TU..TX50198003-198208

main99332-51130i1GEU..GX5#,61198003-198308

main99363-01150i1SU..SX60198208-198407

sub99363-31150

main99364-01100i1GEU..GX61198308-198407

sub99364-81100

main99364-51160i1GGEU..GX61198208-198407

sub99364-81160

main99367-00920iMTEU..MX61198308-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02080iLX60198308-198407

main90916-02092iGX5#,61..EFI198003-198407

main90916-02107iMX51,61198110-198407

main99332-01080iTX50198003-198208

main99363-00770iSX60198208-198407

main99363-00960iGX61..TWC198208-198407

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00880iGX5#..SDX,STR198003-198109

sub99332-00880

main99322-00890iGX51..SLU198003-198109

main99322-00900iMX51..STR198110-198208

sub99332-10900

main99322-00910iGX61..EFI198208-198308

sub99332-00910

main99322-00920iGX5#198109-198208

main99322-01270iLX60198308-198407

sub99322-11270

main99322-50950iMX61198003-198407

main99332-00910iMX51..SLU198110-198208

main99364-00850iGX61..EFI198308-198407

sub99364-20850

main99364-00860iGX61..TWC198208-198407

sub90916-02354

main99364-50810iSX60198208-198407

sub99364-80810

6 parts on this diagram · 6 diagrams in section
