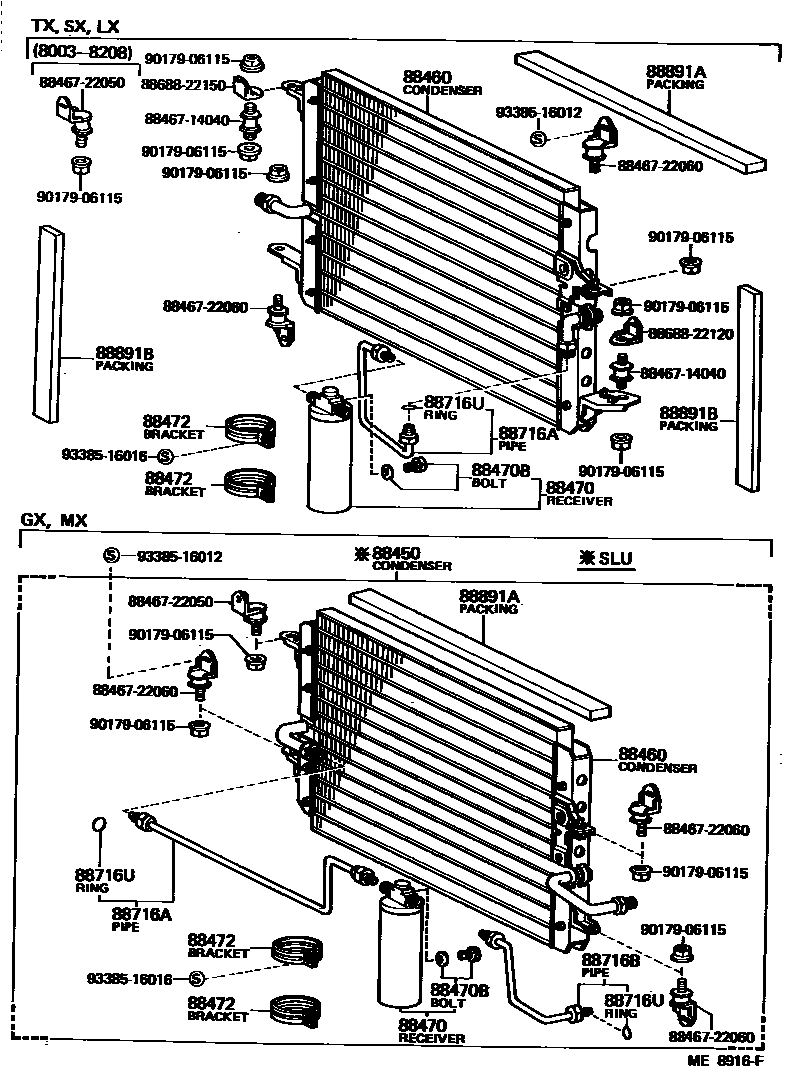

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88450CONDENSER ASSY, W/RECEIVER

main88460-22150iGX51,MX51..SLU198003-198208

main88460-22190iGX61,MX61..SLU198208-198407

88460CONDENSER ASSY, COOLER

main88460-22160iTX50198003-198208

main88460-22170iGX5#,MX51198003-198208

main88460-22210iGX61,MX61198208-198407

main88460-22220iLX60,SX60198208-198407

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

88470BBOLT, FUSE

main90099-04579iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22330iGX5#,MX51..SDX,STR198003-198407

main88716-22350iLX60,SX60,TX50198003-198407

main88716-22360iGX51,61,MX51,61..SLU198003-198407

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-22340iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

main90099-14044iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

88891APACKING A (FOR COOLER)

main88578-22080iLX60,SX60,TX50198003-198407

main88578-22100iGX5#,61,MX51,61198003-198407

88891BPACKING B (FOR COOLER)

main88578-22090iLX60,SX60,TX50198003-198407

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846722050CUSHION, COOLER CONDENSER, NO.1

main88467-22050

8846722060CUSHION, COOLER CONDENSER, NO.1

main88467-22060

8868822120BRACKET, COOLER DIAPHRAGM

main88688-22120

8868822150BRACKET, COOLER DIAPHRAGM

main88688-22150

9017906115

main90179-06115

9338516012

main93385-16012

9338516016

main93385-16016

18 parts on this diagram · 5 diagrams in section
