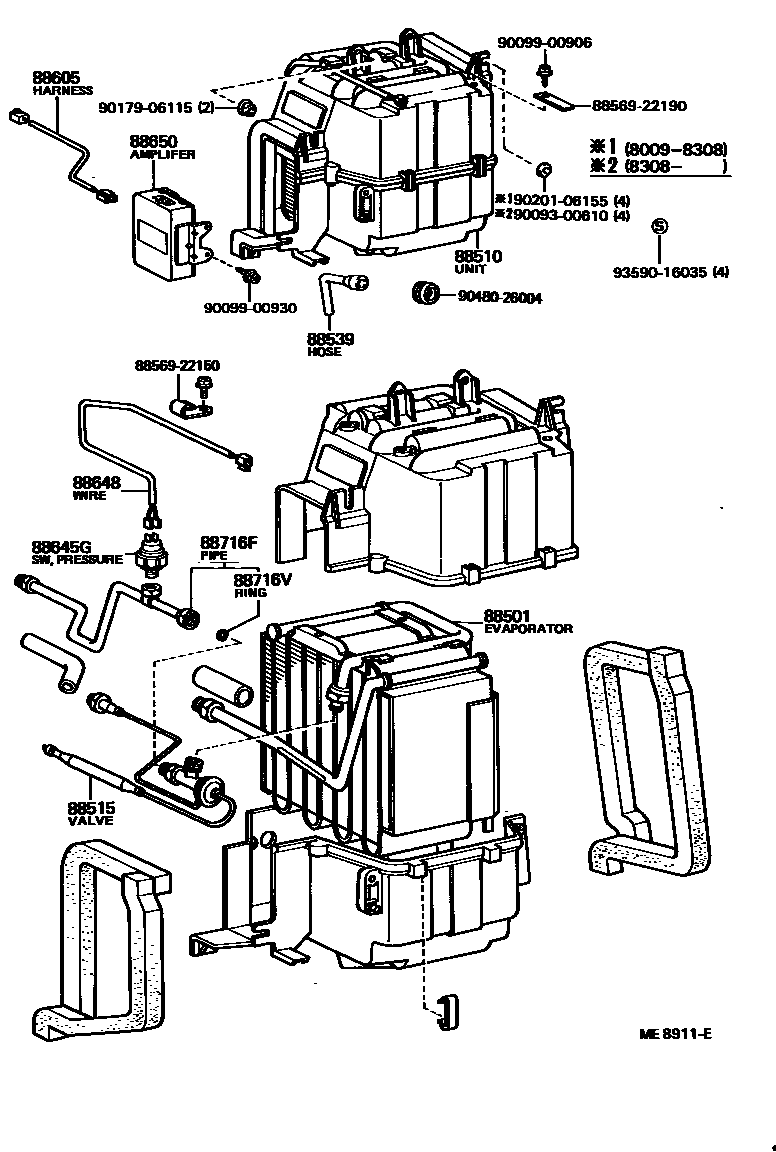

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22130iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

88510UNIT ASSY, COOLER

main88510-22170iGX51,MX51..SLU198003-198208

main88510-22171iGX61,MX61..SLU198208-198407

main88510-22180iGX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

88515VALVE, COOLER EXPANSION

main88515-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub88515-22071

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22080iGX5#,61,MX51,61,SX60,TX50198003-198407

main88539-22090iGX61,MX61..SLU198211-198407

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22210iGX5#,MX51198003-198208

W/AUTOMATIC AIR CONDITIONER

main88605-22211iGX61,MX61198208-198407

W/AUTOMATIC AIR CONDITIONER

main88605-22220iSX60,TX50198003-198407

88645GSWITCH, PRESSURE

main88645-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

TOKAIRIKA

sub88645-30250

main88645-30250iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

DENSO

88648WIRING, COOLER, NO.1

main88648-22060iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-22090iGX5#198003-198010

W/AUTOMATIC AIR CONDITIONER

main88650-22091iGX5#,61,MX51,61198010-198407

W/AUTOMATIC AIR CONDITIONER

main88650-22100iTX50198003-198208

main88650-22120iSX60198208-198407

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-22320iGX5#,MX51,TX50198003-198208

sub88716-22321

main88716-22321iGX61,LX60,MX61,SX60198208-198407

88716VRING, O(FOR COOLER UNIT)

main90099-14044iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

8856922150CLAMP (FOR COOLER RELAY)

main88569-22150

8856922190CLAMP (FOR COOLER RELAY)

main88569-22190

9009300610

main90093-00610

9009900906

main90099-00906

9009900930

main90099-00930

9017906115

main90179-06115

9020106155

main90201-06155

9048026004

main90480-26004

9359016035

main93590-16035

19 parts on this diagram · 3 diagrams in section
