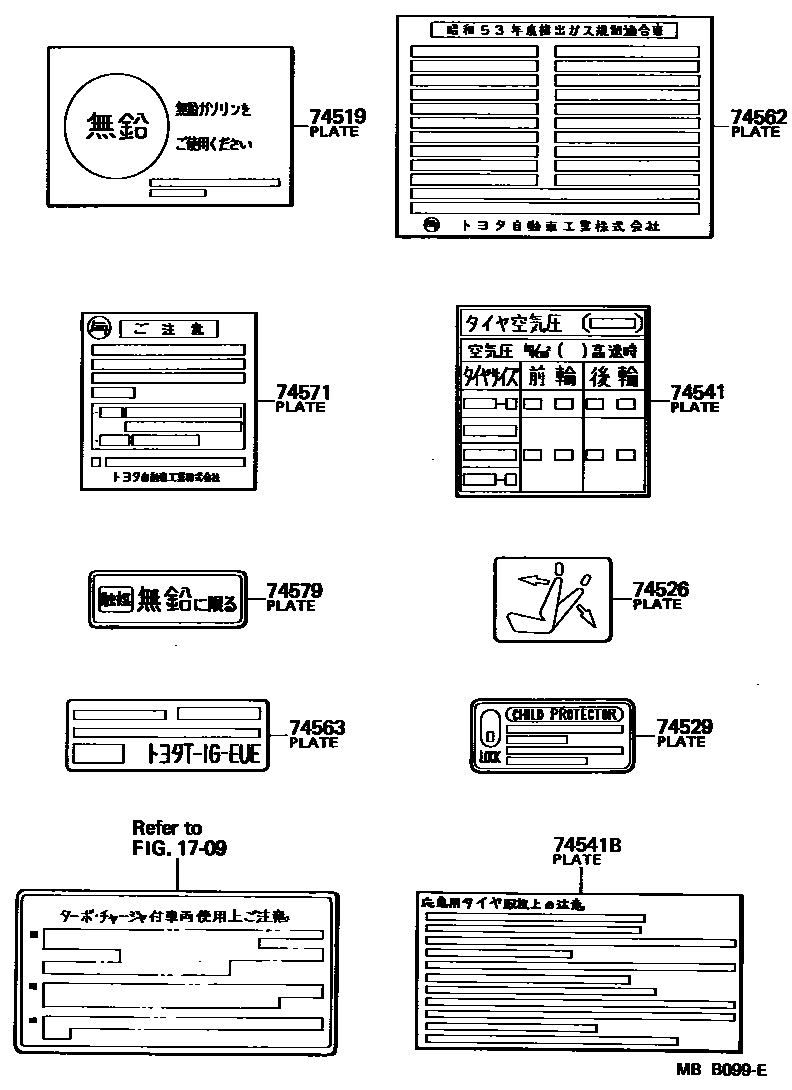

CAUTION PLATE (EXTERIOR & INTERIOR)

1709

74519PLATE, FUEL CAUTION

main74559-14010iGX5#,61,MX51,61,SX60,TX50198003-198407

main74559-14030iLX60198308-198407

74526PLATE, RECLINING ADJUSTER CAUTION

main72547-20010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-20030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

74541PLATE, TIRE PRESSURE CAUTION

main42661-22160iGX5#,TX50198003-198208

sub42661-22190

main42661-22190iMX51198110-198208

main42661-22250iGX61,MX61,SX60198208-198407

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-40010iGX61,MX61,SX60198208-198407

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-12270iTX50198003-198004

main74562-22250iGX5#198003-198107

sub74562-22251

main74562-22251iGX5#198107-198208

main74562-22252iGX61..EFI198208-198308

sub74562-22253

main74562-22253iGX61..EFI198308-198407

main74562-22260iTX50198004-198208

main74562-22300iMX51,61198110-198308

main74562-22310iSX60198208-198308

sub74562-22311

main74562-22311iSX60198308-198407

main74562-22320iGX61..TWC198208-198308

sub74562-22321

main74562-22321iGX61..TWC198308-198407

main74562-22331iLX60198308-198407

sub74562-25070

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-14140iSX60198208-198407

main74563-30190iGX61..EFI198208-198407

74571PLATE, BRAKE FLUID CAUTION

main74571-27011iGX5#,61,MX51,61,SX60,TX50198003-198306

sub74571-27021

main74571-27021iGX61,LX60,MX61,SX60198306-198407

74579PLATE, UNLEADED FUEL CAUTION

main74579-30011iGX5#,61,MX51,61,SX60,TX50198003-198407

10 parts on this diagram · 1 diagram in section
