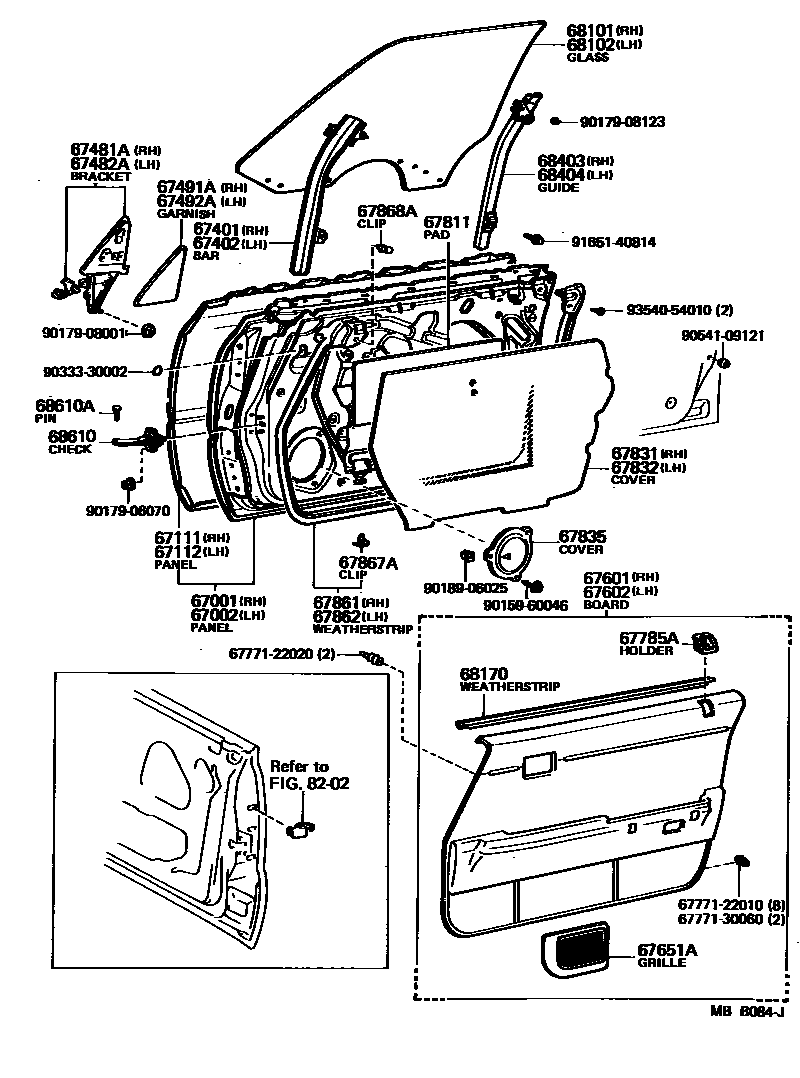

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22160iGX5#,MX51,TX50198003-198203

sub67001-22161

sub82711-30400

sub82817-22360

main67001-22161iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22160iGX5#,MX51,TX50198003-198203

sub67002-22161

sub82817-22360

main67002-22161iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

67111PANEL, FRONT DOOR, OUTER RH

main67111-22090iGX5#,MX51,TX50198003-198208

sub67111-22091

main67111-22091iGX61,LX60,MX61,SX60198208-198407

67112PANEL, FRONT DOOR, OUTER LH

main67112-22090iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-22050iGX61,LX60,MX61,SX60198401-198407

W/*DM

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-22030iGX61,LX60,MX61,SX60198401-198407

W/*DM

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22030iGX61,LX60,MX61,SX60198401-198407

W/*DM

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22030iGX61,LX60,MX61,SX60198401-198407

W/*DM

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-22650-01iTX50..CTM198003-198104

BLACK & GRAY,BLACK,TRIM2#

main67610-22650-04iTX50..CTM198003-198104

BLUE,BLUE,TRIM8#

main67610-22650-06iTX50..CTM198003-198104

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22660-01iGX50,TX50..SCM,SDX198003-198208

BLACK & GRAY,BLACK,TRIM2#

main67610-22660-04iTX50..CTM198003-198208

BLUE,BLUE,TRIM8#

main67610-22660-06iGX50,TX50..SCM,SDX198003-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22661-02iMX61,SX60..CTM,STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub67610-2AH91

main67610-22661-04iMX61,SX60..CTM,STR198208-198407

BLUE,BLUE,TRIM8#

sub67610-2AH91

main67610-22661-06iMX61,SX60..CTM,STR198208-198407

D-BROWN,BROWN,TRIM4#

sub67610-2AH91

main67610-22680-01iGX51,MX51..SLU198003-198208

BLACK & GRAY,BLACK,TRIM2#

main67610-22680-04iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main67610-22680-06iGX51,MX51..SLU198003-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22681-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67610-22681-04iGX61,MX61..SLU..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67610-22681-06iGX61,MX61..SLU..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67610-22681-14iGX61,MX61..SLU..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67610-22681-16iGX61,MX61..SLU..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67610-22690-01iGX51..STR198003-198110

BLACK & GRAY,BLACK,TRIM2#

main67610-22690-04iGX51..STR198003-198110

BLUE,BLUE,TRIM8#

main67610-22690-06iGX51..STR198003-198110

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22691-01iGX51,MX51..STR198110-198208

BLACK & GRAY,BLACK,TRIM2#

main67610-22691-04iGX51,MX51..STR198110-198208

BLUE,BLUE,TRIM8#

main67610-22691-06iGX51,MX51..STR198110-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22700-01iGX51..STR198003-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67610-22700-04iGX51..STR198003-198110

W/*PW,BLUE,BLUE,TRIM8#

main67610-22700-06iGX51..STR198003-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22701-01iGX51,MX51..STR198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67610-22701-04iGX51,MX51..STR198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67610-22701-06iGX51,MX51..STR198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67610-2A220-04iTX50..SCM198108-198208

EXTRA,BLUE,BLUE,TRIM8#

sub67610-2A220

main67610-2A220-06iTX50..SCM198011-198208

EXTRA,BROWN,BROWN,TRIM4#

sub67610-2A220

main67610-2A230-01iGX50,TX50..SCM,SDX198104-198208

BLACK & GRAY,BLACK,TRIM2#

main67610-2A230-04iGX50,TX50..SCM,SDX198104-198208

BLUE,BLUE,TRIM8#

main67610-2A230-06iGX50,TX50..SCM,SDX198104-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-2A231-02iGX61,SX60..SCM,SDX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67610-2A231-04iGX61,SX60..SCM,SDX198208-198407

BLUE,BLUE,TRIM8#

main67610-2A231-06iGX61,SX60..SCM,SDX198208-198407

D-BROWN,BROWN,TRIM4#

main67610-2A260iGX51..SLU198106-198107

SUPER WHITE

main67610-2A260-06iGX51..SLU198108-198207

EXCEED,BROWN,BROWN,TRIM4#

sub67610-2A260

main67650-22030-02iGX61..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

sub67650-22031

main67650-22030-04iGX61..TWC198208-198308

BLUE,BLUE,TRIM8#

sub67650-22031

main67650-22030-06iGX61..TWC198208-198308

D-BROWN,BROWN,TRIM4#

sub67650-22031

main67650-22030-12iGX61..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

sub67650-22031

main67650-22030-14iGX61..TWC198308-198402

BLUE,BLUE,TRIM8#

sub67650-22031

main67650-22030-16iGX61..TWC198308-198402

D-BROWN,BROWN,TRIM4#

sub67650-22031

main67650-22031-02iGX61..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67650-22031-04iGX61..TWC198402-198407

BLUE,BLUE,TRIM8#

main67650-22031-06iGX61..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

main67650-22080-02iGX61..SDX198208-198407

W/*PW, DEEP MAROON,RED/MAROON,TRIM3#

sub67610-22H99

main67650-22080-04iGX61..SDX198208-198407

W/*PW,BLUE,BLUE,TRIM8#

sub67610-22H99

main67650-22080-06iGX61..SDX198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

sub67610-22H99

main67650-22100-04iGX61,LX60,SX60..SCM,SDX198302-198407

EXTRA,BLUE,BLUE,TRIM8#

sub67610-2AH93

main67650-22100-06iGX61..SDX198302-198407

EXTRA,BROWN,BROWN,TRIM4#

sub67610-2AH93

main67650-22120-02iLX60..CTM198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub67610-2AH91

main67650-22120-04iLX60..CTM198308-198407

BLUE,BLUE,TRIM8#

sub67610-2AH91

main67650-22120-06iLX60..CTM198308-198407

D-BROWN,BROWN,TRIM4#

sub67610-2AH91

main67650-22130-02iLX60..SCM198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub67610-22H99

main67650-22130-04iLX60..SCM198308-198407

BLUE,BLUE,TRIM8#

sub67610-22H99

main67650-22130-06iLX60..SCM198308-198407

D-BROWN,BROWN,TRIM4#

sub67610-22H99

main67650-22140-04iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main67650-22140-06iGX61..SLU..EFI198305-198401

EXCEED,D-BROWN,BROWN,TRIM4#

main67650-22150iGX61..TWC198305-198401

EXCEED

main67650-22170-02iSX60..5F;MX61..STR198401-198407

W/*DM &LUMBER SUPPORT,D-MAROON,RED/MAROON,TRIM3#

sub67610-2AH92

main67650-22170-04iSX60..5F;MX61..STR198401-198407

W/*DM & LUMBER SUPPORT,BLUE,BLUE,TRIM8#

sub67610-2AH92

main67650-22170-06iSX60..5F;MX61..STR198401-198407

W/*DM & LUMBER SUPPORT,D-BROWN,BROWN,TRIM4#

sub67610-2AH92

main67650-22180-02iGX61,SX60..SCM,SDX198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67650-22180-04iGX61,SX60..SCM,SDX198401-198407

W/*DM,BLUE,BLUE,TRIM8#

main67650-22180-06iGX61,SX60..SCM,SDX198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

main67650-22190-02iGX61,MX61..SLU..(EFI,TBO)198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67650-22190-04iGX61,MX61..SLU..(EFI,TBO)198401-198407

W/*DM,BLUE,BLUE,TRIM8#

main67650-22190-06iGX61,MX61..SLU..(EFI,TBO)198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

main67650-22200-02iGX61..TWC198401-198402

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

sub67650-22201

main67650-22200-04iGX61..TWC198401-198402

W/*DM,BLUE,BLUE,TRIM8#

sub67650-22201

main67650-22200-06iGX61..TWC198401-198402

W/*DM,D-BROWN,BROWN,TRIM4#

sub67650-22201

main67650-22201-02iGX61..TWC198402-198407

W/*DM,DEEP MAROON,DEEP MAROON,TRIM3#

main67650-22201-04iGX61..TWC198402-198407

W/*DM,BLUE,BLUE,TRIM8#

main67650-22201-06iGX61..TWC198402-198407

W/*DM,D-BROWN,DARK BROWN,TRIM4#

main67650-22210-02iGX61..SDX198401-198407

W/*PW & *DM,DEEP MAROON,RED/MAROON,TRIM3#

sub67610-2AH90

main67650-22210-04iGX61..SDX198401-198407

W/*PW & *DM,BLUE,BLUE,TRIM8#

sub67610-2AH90

main67650-22210-06iGX61..SDX198401-198407

W/*PW & *DM,D-BROWN,BROWN,TRIM4#

sub67610-2AH90

main67650-22220-02iLX60..CTM198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

sub67610-2AH92

main67650-22220-04iLX60..CTM198401-198407

W/*DM,BLUE,BLUE,TRIM8#

sub67610-2AH92

main67650-22220-06iLX60..CTM198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

sub67610-2AH92

main67650-22230-02iLX60..SCM198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

sub67610-2AH90

main67650-22230-04iLX60..SCM198401-198407

W/*DM,BLUE,BLUE,TRIM8#

sub67610-2AH90

main67650-22230-06iLX60..SCM198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

sub67610-2AH90

main67650-22760-04iSX60..SCM198402-198407

EXTRA W/*DM,BLUE,BLUE,TRIM8#

sub67610-2AH94

main67650-22760-04iGX61..SDX198401-198407

EXTRA,W/*DM,BLUE,BLUE,TRIM8#

sub67610-2AH94

main67650-22760-06iGX61..SDX198401-198407

EXTRA,W/*DM,D-BROWN,BROWN,TRIM4#

sub67610-2AH94

main67650-22780iGX61..TWC198402-198407

EXCEED

main67650-22790iGX61..TWC198402-198407

EXCEED,W/*DM

main67650-22800iLX60..SCM198402-198407

EXTRA

sub67610-2AH93

main67650-22810iLX60..SCM198402-198407

EXTRA

sub67610-2AH94

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-22350-01iTX50..CTM198003-198104

BLACK & GRAY,BLACK,TRIM2#

main67620-22350-04iTX50..CTM198003-198104

BLUE,BLUE,TRIM8#

main67620-22350-06iTX50..CTM198003-198104

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22540-01iTX50..CTM198003-198208

BLACK & GRAY,BLACK,TRIM2#

main67620-22540-04iTX50..CTM198003-198208

BLUE,BLUE,TRIM8#

main67620-22540-06iTX50..CTM198003-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22541-02iLX60,MX61,SX60..CTM,STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67620-22541-04iLX60,MX61,SX60..CTM,STR198208-198407

BLUE,BLUE,TRIM8#

main67620-22541-06iLX60,MX61,SX60..CTM,STR198208-198407

D-BROWN,BROWN,TRIM4#

main67620-22560-01iGX51,MX51..SLU198003-198208

BLACK & GRAY,BLACK,TRIM2#

main67620-22560-04iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main67620-22560-06iGX51,MX51..SLU198003-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22561-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67620-22561-04iGX61,MX61..SLU..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67620-22561-06iGX61,MX61..SLU..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67620-22561-14iGX61,MX61..SLU..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67620-22561-16iGX61,MX61..SLU..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67620-22570-01iGX51..STR198003-198110

BLACK & GRAY,BLACK,TRIM2#

main67620-22570-04iGX51..STR198003-198110

BLUE,BLUE,TRIM8#

main67620-22570-06iGX51..STR198003-198110

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22571-01iGX51,MX51..STR198110-198208

BLACK & GRAY,BLACK,TRIM2#

main67620-22571-04iGX51,MX51..STR198110-198208

BLUE,BLUE,TRIM8#

main67620-22571-06iGX51,MX51..STR198110-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22580-01iGX51..STR198003-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67620-22580-04iGX51..STR198003-198110

W/*PW,BLUE,BLUE,TRIM8#

main67620-22580-06iGX51..STR198003-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22581-01iGX51,MX51..STR198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67620-22581-04iGX51,MX51..STR198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67620-22581-06iGX51,MX51..STR198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22800-02iGX61..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

sub67620-22801

main67620-22800-04iGX61..TWC198208-198308

BLUE,BLUE,TRIM8#

sub67620-22801

main67620-22800-06iGX61..TWC198208-198308

D-BROWN,BROWN,TRIM4#

sub67620-22801

main67620-22800-12iGX61..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

sub67620-22801

main67620-22800-14iGX61..TWC198308-198402

BLUE,BLUE,TRIM8#

sub67620-22801

main67620-22800-16iGX61..TWC198308-198402

D-BROWN,BROWN,TRIM4#

sub67620-22801

main67620-22801-02iGX61..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67620-22801-04iGX61..TWC198402-198407

BLUE,BLUE,TRIM8#

main67620-22801-06iGX61..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

main67620-2A040-04iTX50..SCM198108-198208

EXTRA,BLUE,BLUE,TRIM8#

sub67620-2A040

main67620-2A040-06iGX50198011-198208

EXTRA,BROWN,BROWN,TRIM4#

sub67620-2A040

main67620-2A050-01iGX50,TX50..SCM,SDX198104-198208

BLACK & GRAY,BLACK,TRIM2#

main67620-2A050-04iGX50,TX50..SCM,SDX198104-198208

BLUE,BLUE,TRIM8#

main67620-2A050-06iGX50,TX50..SCM,SDX198104-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-2A051-02iGX61,SX60..SCM,SDX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A051-04iGX61,SX60..SCM,SDX198208-198407

BLUE,BLUE,TRIM8#

main67620-2A051-06iGX61,SX60..SCM,SDX198208-198407

D-BROWN,BROWN,TRIM4#

main67620-2A080iGX51..SLU198106-198107

SUPER WHITE

main67620-2A080-06iGX51,MX51..SLU198108-198207

EXCEED,BROWN,BROWN,TRIM4#

sub67620-2A080

main67620-2A110-02iGX61,LX60..SCM,SDX198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A110-04iGX61,LX60..SCM,SDX198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main67620-2A110-06iGX61,LX60..SCM,SDX198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main67620-2A130-04iGX61,LX60,SX60..SCM,SDX198302-198407

EXTRA,BLUE,BLUE,TRIM8#

main67620-2A130-06iGX61..SDX198302-198407

EXTRA,BROWN,BROWN,TRIM4#

main67620-2A150-04iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main67620-2A150-06iGX61..SLU..EFI198305-198401

EXCEED,D-BROWN,BROWN,TRIM4#

main67620-2A160iGX61..TWC198305-198401

EXCEED

main67620-2A180-02iLX60..CTM198401-198407

W/*DM &LUMBER SUPPORT,D-MAROON,RED/MAROON,TRIM3#

main67620-2A180-02iLX60..CTM198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A180-04iLX60..CTM198401-198407

W/*DM & LUMBER SUPPORT,BLUE,BLUE,TRIM8#

main67620-2A180-04iSX60..5F;MX61..STR198401-198407

W/*DM,BLUE,BLUE,TRIM8#

main67620-2A180-06iLX60..CTM198401-198407

W/*DM & LUMBER SUPPORT,D-BROWN,BROWN,TRIM4#

main67620-2A180-06iLX60..CTM198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

main67620-2A190-02iGX61,SX60..SCM,SDX198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A190-04iGX61,SX60..SCM,SDX198401-198407

W/*DM,BLUE,BLUE,TRIM8#

main67620-2A190-06iGX61,SX60..SCM,SDX198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

main67620-2A200-02iGX61,MX61..SLU..(EFI,TBO)198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A200-04iGX61,MX61..SLU..(EFI,TBO)198401-198407

W/*DM,BLUE,BLUE,TRIM8#

main67620-2A200-06iGX61,MX61..SLU..(EFI,TBO)198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

main67620-2A210-02iGX61..TWC198401-198402

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

sub67620-2A211

main67620-2A210-04iGX61..TWC198401-198402

W/*DM,BLUE,BLUE,TRIM8#

sub67620-2A211

main67620-2A210-06iGX61..TWC198401-198402

W/*DM,D-BROWN,BROWN,TRIM4#

sub67620-2A211

main67620-2A211-02iGX61..TWC198402-198407

W/*DM,DEEP MAROON,DEEP MAROON,TRIM3#

main67620-2A211-04iGX61..TWC198402-198407

W/*DM,BLUE,BLUE,TRIM8#

main67620-2A211-06iGX61..TWC198402-198407

W/*DM,D-BROWN,DARK BROWN,TRIM4#

main67620-2A220-02iGX61..SDX198401-198407

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A220-02iGX61..SDX198401-198407

W/*PW & *DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A220-04iGX61..SDX198401-198407

W/*DM,BLUE,BLUE,TRIM8#

main67620-2A220-04iGX61..SDX198401-198407

W/*PW & *DM,BLUE,BLUE,TRIM8#

main67620-2A220-06iGX61..SDX198401-198407

W/*DM,D-BROWN,BROWN,TRIM4#

main67620-2A220-06iGX61..SDX198401-198407

W/*PW & *DM,D-BROWN,BROWN,TRIM4#

main67620-2A630-04iGX61,LX60,SX60..SCM,SDX198402-198407

EXTRA,W/*DM,BLUE,BLUE,TRIM8#

main67620-2A630-06iGX61..SDX198402-198407

EXTRA,W/*DM,DARK BROWN,BROWN,TRIM4#

main67620-2A650iGX61..TWC198402-198407

EXCEED

main67620-2A660iGX61..TWC198402-198407

EXCEED,W/*DM

67651AGRILLE, SPEAKER DOOR

main67651-22010-01iGX5#,MX51,TX50198003-198208

RH,BLACK,BLACK,TRIM2#

sub67651-22010

main67651-22010-02iGX61,LX60,MX61,SX60198208-198407

RH,DEEP MAROON,RED/MAROON,TRIM3#

sub67651-22010

main67651-22010-04iGX5#,MX51,TX50198003-198208

RH,BLUE,BLUE,TRIM8#

sub67651-22010

main67651-22010-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH,D-BROWN,BROWN,TRIM4#

sub67651-22010

main67651-22010-14iGX61,LX60,MX61,SX60198208-198407

RH,BLUE,BLUE,TRIM8#

sub67651-22010

main67652-22010-01iGX5#,MX51,TX50198003-198208

LH,BLACK,BLACK,TRIM2#

sub67652-22010

main67652-22010-02iGX61,LX60,MX61,SX60198208-198407

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub67652-22010

main67652-22010-04iGX5#,MX51,TX50198003-198208

LH,BLUE,BLUE,TRIM8#

sub67652-22010

main67652-22010-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH,D-BROWN,BROWN,TRIM4#

sub67652-22010

main67652-22010-14iGX61,LX60,MX61,SX60198208-198407

LH,BLUE,BLUE,TRIM8#

sub67652-22010

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main67785-22020-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub67785-22020

main67785-22020-02iSX60..5F;MX61..STR198401-198407

W/*DM&LUMBER SUPPORT,D-MAROON,RED/MAROON,TRIM3#

sub67785-22020

main67785-22020-02iGX61,LX60,MX61,SX60198208-198407

D-MAROON,RED/MAROON,TRIM3#

sub67785-22020

main67785-22020-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub67785-22020

main67785-22020-06iSX60..5F;MX61..STR198401-198407

W/*DM&LUMBER SUPPORT,D-BROWN,BROWN,TRIM4#

sub67785-22020

main67785-22020-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

sub67785-22020

main67785-22020-14iSX60..5F;MX61..STR198401-198407

W/*DM&LUMBER SUPPORT,BLUE,BLUE,TRIM8#

sub67785-22020

main67785-22020-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub67785-22020

67811PAD, FRONT DOOR SILENCER

main67812-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub67812-12010

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67835COVER, FRONT DOOR SPEAKER HOLE

main67803-22060iSX60..5F;MX61,TX50..(4F,4FC)..(CTM,SCM,STR)198109-198407

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main67861-22120iGX61,LX60,MX61,SX60198401-198407

W/*DM

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main67862-22120iGX61,LX60,MX61,SX60198401-198407

W/*DM

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67869-30020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

*TT,T=5.0

main68111-22120iGX51,MX51..SLU198201-198207

EXCEED

main68111-22120iGX61,MX51,61..SLU198110-198407

*TEM,T=5.0,BRONZE

main68111-22160iGX61,LX60,MX61,SX60198401-198407

*TEM,T=5.0,W/*DM

main68111-22170iGX61,MX61..SLU198401-198407

*TEM,T=5.0,BRONZE,W/*DM

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

*TT,T=5.0

main68112-22120iGX61,MX51,61..SLU198110-198407

*TEM,T=5.0,BRONZE

main68112-22120iGX51,MX51..SLU198201-198207

EXCEED

main68112-22160iGX61,LX60,MX61,SX60198401-198407

*TEM,T=5.0,W/*DM

main68112-22170iGX61,MX61..SLU198401-198407

*TEM,T=5.0,BRONZE,W/*DM

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH

main68170-22080iGX61,LX60,MX61,SX60198401-198407

RH,W/*DM

main68220-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH

main68220-22030iGX61,LX60,MX61,SX60198401-198407

LH,W/*DM

68403GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH

main67403-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

68404GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH

main67404-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

68610CHECK ASSY, FRONT DOOR

main68610-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iGX61,LX60,MX61,SX60198406-198407

sub68617-90A00

main68617-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198406

sub68617-12010

8202

6777122010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22010

6777122020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22020

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9015960046

main90159-60046

9017906070

main90179-06070

9017908001

main90179-08001

9017908123

main90179-08123

9018906025

main90189-06025

9033330002

main90333-30002

9054109121

main90541-09121

9165140814

main91651-40814

9354054010

main93540-54010

42 parts on this diagram · 1 diagram in section
