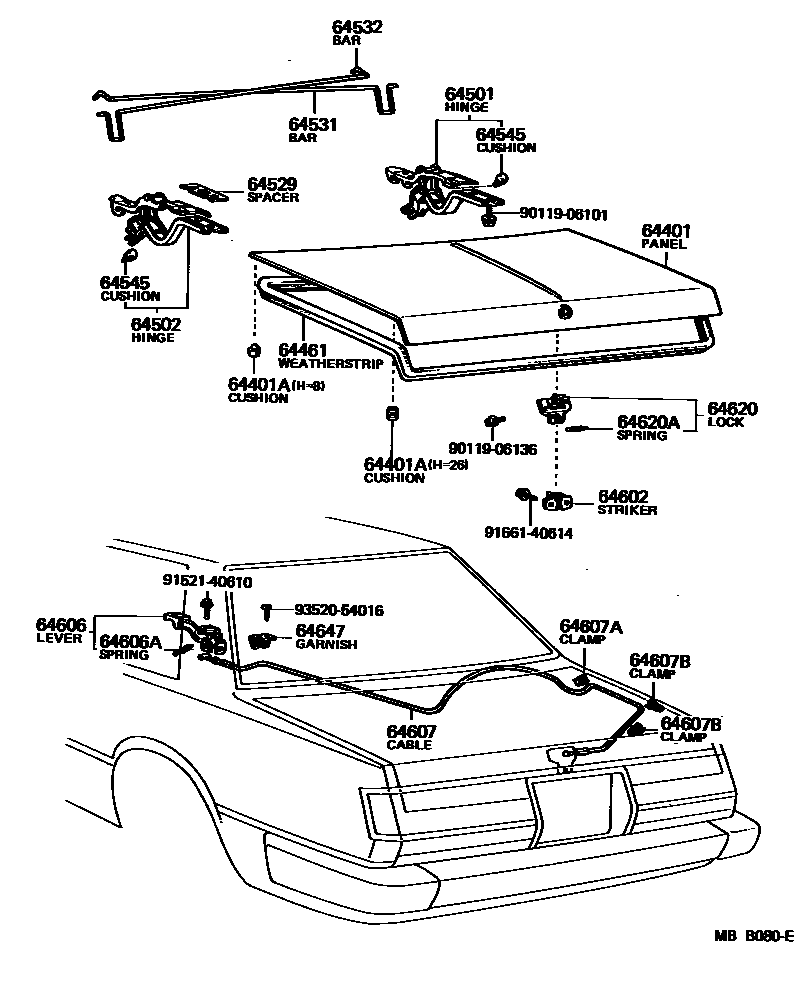

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22140iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09017iGX5#,61,LX60,MX51,61,SX60,TX50198012-198407

H=8,FR

sub90541-09151

main90541-09151iGX5#,TX50198003-198012

H=8,FR

main90541-15111iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

H=26,RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-22060iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22060iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22060iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09013iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-22040-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub64606-22040

main64606-22040-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub64606-22040

main64606-22040-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub64606-22040

main64606-22040-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

sub64606-22040

main64606-22040-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub64606-22040

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub64607-91D01

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12020iLX60,SX60,TX50..CTM198109-198407

*30

main64610-20030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-09001iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64647GARNISH, LUGGAGE LOCK CONTROL LEVER

main64647-22020-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub64647-22020

main64647-22020-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub64647-22020

main64647-22020-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

sub64647-22020

9011906101

main90119-06101

9011906136

main90119-06136

9152140610

main91521-40610

9166140614

main91661-40614

9352054016

main93520-54016

23 parts on this diagram · 1 diagram in section
