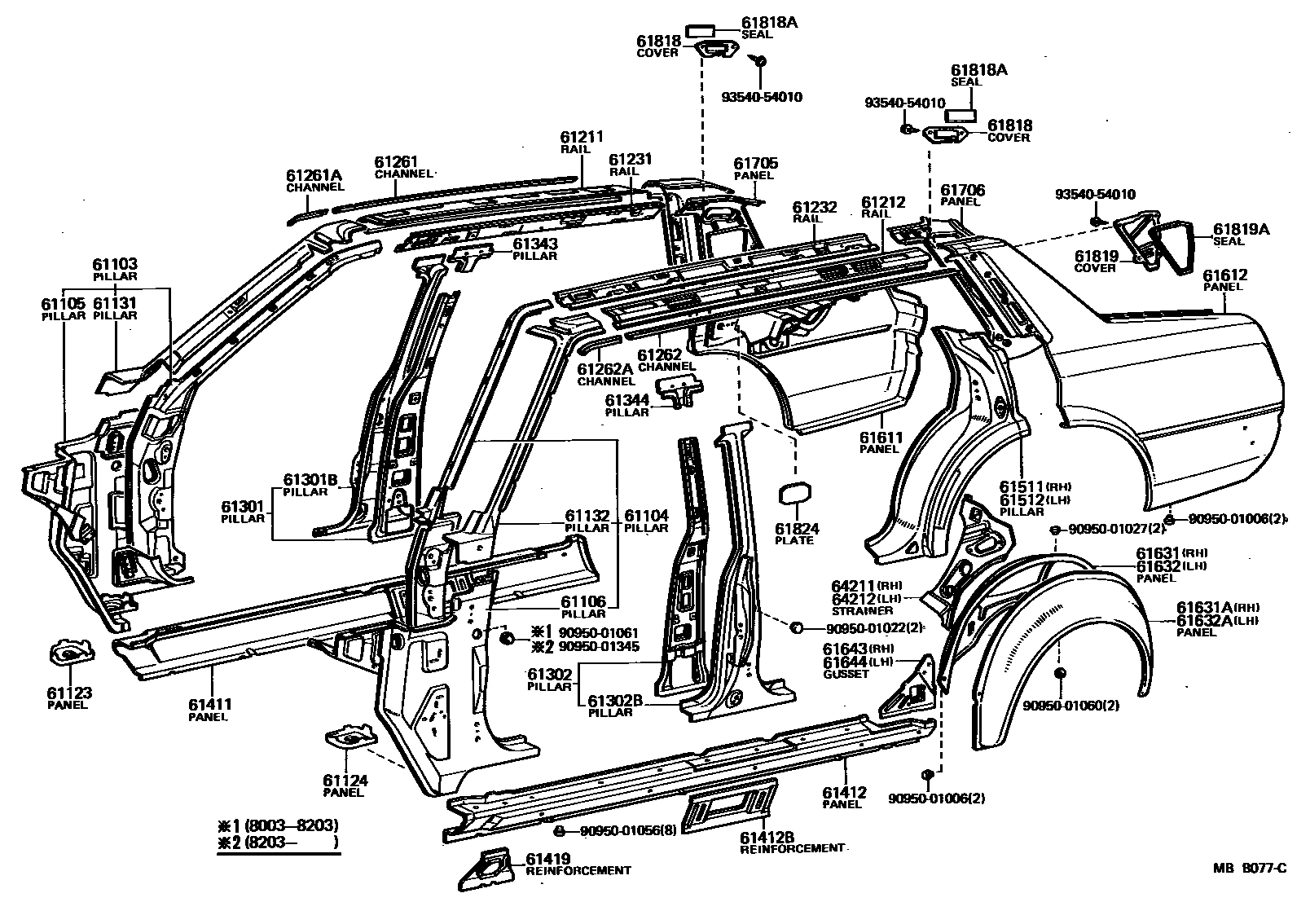

SIDE MEMBER

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-22901iGX5#,MX51,TX50198003-198203

sub61021-22902

sub90950-01345

main61021-22902iGX5#,MX51,TX50198203-198407

sub61021-22903

sub91611-61016

main61021-22903iGX61,MX61..SLU198208-198407

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-22902iGX5#,MX51,TX50198003-198203

sub61022-22903

sub90950-01345

main61022-22903iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

sub61022-22011

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61025-22901iGX5#,MX51,TX50198003-198203

sub61025-22905

sub90950-01345

main61025-22905iGX5#,MX51,TX50198203-198407

sub61025-22909

sub91611-61016

main61025-22909iGX61,MX61..SLU198208-198407

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61026-22901iGX5#,MX51,TX50198003-198203

sub61026-22906

sub90950-01345

main61026-22906iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

61123PANEL, COWL SIDE LOWER, RH

main61123-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61124PANEL, COWL SIDE LOWER, LH

main61124-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61211RAIL, ROOF SIDE, OUTER RH

main61211-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61212RAIL, ROOF SIDE, OUTER LH

main61212-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61231RAIL, ROOF SIDE, INNER RH

main61231-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61232RAIL, ROOF SIDE, INNER LH

main61232-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61261CHANNEL, ROOF DRIP, RH

main61261-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-22010iGX5#,TX50198003-198104

61262CHANNEL, ROOF DRIP, LH

main61262-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-22010iGX5#,TX50198003-198104

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-22200iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61301BPILLAR, CENTER BODY, OUTER RH

main61301-22901iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-22230iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61302BPILLAR, CENTER BODY, OUTER LH

main61302-22901iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61411PANEL, ROCKER, OUTER RH

main61411-22100iGX5#,TX50198003-198010

sub61411-22101

sub75867-22030

sub75867-22040

main61411-22101iGX5#,61,LX60,MX51,61,SX60,TX50198010-198407

sub61411-22111

61412PANEL, ROCKER, OUTER LH

main61412-22100iGX5#,TX50198003-198010

sub61412-22101

sub75867-22030

sub75867-22040

main61412-22101iGX5#,61,LX60,MX51,61,SX60,TX50198010-198407

sub61412-22111

61412BREINFORCEMENT, ROCKER PANEL, NO.2

main61414-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61419REINFORCEMENT, ROCKER OUTER PANEL

main61418-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61511PILLAR, QUARTER LOCK, RH

main61511-22902iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61512PILLAR, QUARTER LOCK, LH

main61512-22902iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61611PANEL, QUARTER, RH

main61601-22330iLX60,SX60198208-198407

main61601-22340iGX61,MX61198208-198407

main61601-22935iGX5#,MX51,TX50198003-198208

61612PANEL, QUARTER, LH

main61602-22330iLX60,SX60198208-198407

main61602-22340iGX61,MX61198208-198407

main61602-22911iGX5#,MX51,TX50198003-198208

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-22906iGX50,LX60,SX60,TX50198003-198407

main61607-22907iGX51,61,MX51,61198003-198407

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61603-22905iGX5#,MX51,TX50198003-198203

sub61603-22907

sub77201-22121

sub77201-22130

main61603-22907iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-22905iGX50,LX60,SX60,TX50198003-198407

main61608-22906iGX51,61,MX51,61198003-198407

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub61632-22080

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61641-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61642-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61818COVER, ROOF SIDE, INNER UPPER

main61815-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61818ASEAL, ROOF SIDE INNER UPPER COVER

main61827-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61819COVER, ROOF SIDE, INNER LOWER

main61817-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH

main61818-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH

61819ASEAL, ROOF SIDE INNER LOWER COVER

main61819-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

61824PLATE, NOISE CONTROL, NO.1

main61824-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

9095001006

main90950-01006

9095001022

main90950-01022

9095001027

main90950-01027

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001345

main90950-01345

9354054010

main93540-54010

53 parts on this diagram · 1 diagram in section
