MAT & CARPET

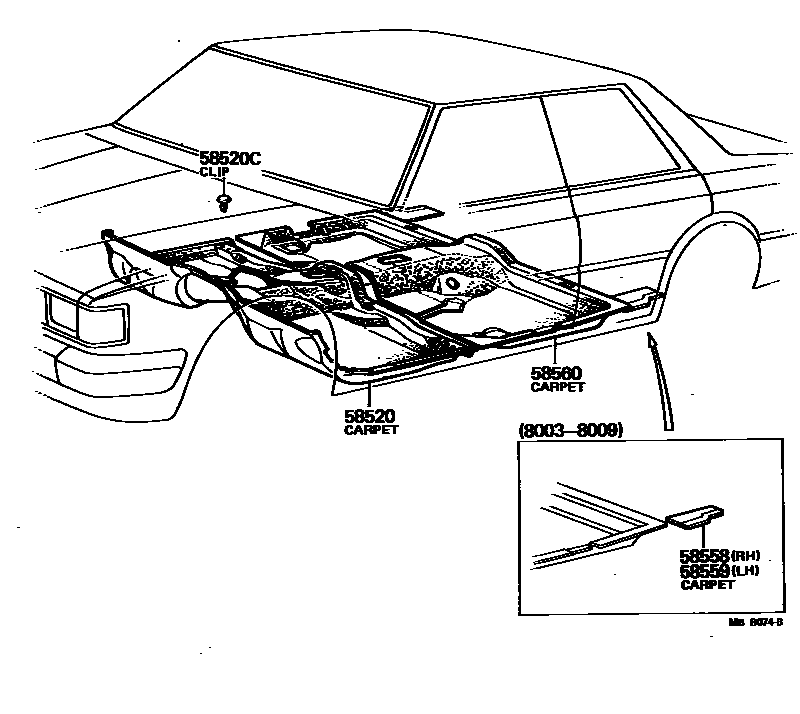

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-22560-03i198003-198010
GRAY,GRAY,TRIM2#
main58510-22560-04i198003-198010
BLUE,BLUE,TRIM8#
main58510-22560-05i198003-198010
GREIGE,BEIGE,TRIM4#
main58510-22561-03i198010-198208
GRAY,GRAY,TRIM2#
main58510-22561-04i198010-198208
BLUE,BLUE,TRIM8#
main58510-22561-05i198010-198208
GREIGE,BEIGE,TRIM4#
main58510-22562-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58510-22562-04i198208-198407
BLUE,BLUE,TRIM8#
main58510-22562-06i198208-198407
DARK BROWN,BROWN,TRIM4#
main58510-22570-03i198003-198010
GRAY,GRAY,TRIM2#
main58510-22570-04i198003-198010
BLUE,BLUE,TRIM8#
main58510-22570-05i198003-198010
GREIGE,BEIGE,TRIM4#
main58510-22571-03i198010-198108
GRAY,GRAY,TRIM2#
sub58510-22680
main58510-22571-04i198010-198108
BLUE,BLUE,TRIM8#
sub58510-22680
main58510-22571-05i198010-198108
GREIGE,BEIGE,TRIM4#
sub58510-22680
main58510-22572-03i198108-198208
GRAY,GRAY,TRIM2#
main58510-22572-04i198108-198208
BLUE,BLUE,TRIM8#
main58510-22572-05i198108-198208
GREIGE,BEIGE,TRIM4#
main58510-22573-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
sub58510-22681
main58510-22573-04i198208-198308
BLUE,BLUE,TRIM8#
sub58510-22681
main58510-22573-06i198208-198308
DARK BROWN,BROWN,TRIM4#
sub58510-22681
main58510-22573-14i198308-198407
BLUE,BLUE,TRIM8#
sub58510-22681
main58510-22573-16i198308-198407
DARK BROWN,BROWN,TRIM4#
sub58510-22681
main58510-22680-03i198110-198208
GRAY,GRAY,TRIM2#
main58510-22680-04i198110-198208
BLUE,BLUE,TRIM8#
main58510-22680-05i198110-198208
GREIGE,BEIGE,TRIM4#
main58510-22681-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58510-22681-04i198208-198308
BLUE,BLUE,TRIM8#
main58510-22681-06i198208-198308
DARK BROWN,BROWN,TRIM4#
main58510-22681-14i198308-198407
BLUE,BLUE,TRIM8#
main58510-22681-16i198308-198407
DARK BROWN,BROWN,TRIM4#
main58510-22811-02i198308-198407
DEEP MAROON,RED/MAROON,TRIM3#
sub58510-22562
main58510-22811-04i198308-198407
BLUE,BLUE,TRIM8#
sub58510-22562
main58510-22811-06i198308-198407
DARK BROWN,BROWN,TRIM4#
sub58510-22562
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-07158-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
sub90467-07158
main90467-07158-03i198110-198208
GRAY,GRAY,TRIM2#
sub90467-07158
main90467-07158-04i198110-198407
BLUE,BLUE,TRIM8#
sub90467-07158
main90467-07158-05i198110-198208
GREIGE,BEIGE,TRIM4#
sub90467-07158
main90467-07158-06i198208-198407
DARK BROWN,BROWN,TRIM4#
sub90467-07158
58558CARPET, REAR SEAT SIDE, RH
main58553-22030-03i198003-198009
GRAY,GRAY,TRIM2#
main58553-22030-04i198003-198009
BLUE,BLUE,TRIM8#
main58553-22030-05i198003-198009
GREIGE,BEIGE,TRIM4#
main58553-22040-03i198003-198009
GRAY,GRAY,TRIM2#
main58553-22040-04i198003-198009
BLUE,BLUE,TRIM8#
main58553-22040-05i198003-198009
GREIGE,BEIGE,TRIM4#
58559CARPET, REAR SEAT SIDE, LH
main58554-22030-03i198003-198009
GRAY,GRAY,TRIM2#
main58554-22030-04i198003-198009
BLUE,BLUE,TRIM8#
main58554-22030-05i198003-198009
GREIGE,BEIGE,TRIM4#
main58554-22040-03i198003-198009
GRAY,GRAY,TRIM2#
main58554-22040-04i198003-198009
BLUE,BLUE,TRIM8#
main58554-22040-05i198003-198009
GREIGE,BEIGE,TRIM4#
58560CARPET ASSY, FLOOR, REAR
main58540-22240-03i198003-198208
GRAY,GRAY,TRIM2#
main58540-22240-04i198003-198208
BLUE,BLUE,TRIM8#
main58540-22240-05i198003-198208
GREIGE,BEIGE,TRIM4#
main58540-22241-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58540-22241-04i198208-198407
BLUE,BLUE,TRIM8#
main58540-22241-06i198208-198407
DARK BROWN,BROWN,TRIM4#
main58540-22250-03i198003-198208
GRAY,GRAY,TRIM2#
main58540-22250-04i198003-198208
BLUE,BLUE,TRIM8#
main58540-22250-05i198003-198208
GREIGE,BEIGE,TRIM4#
main58540-22251-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
sub58540-22251
main58540-22251-04i198208-198308
BLUE,BLUE,TRIM8#
sub58540-22251
main58540-22251-06i198208-198308
DARK BROWN,BROWN,TRIM4#
sub58540-22251
main58540-22251-14i198308-198407
BLUE,BLUE,TRIM8#
sub58540-22251
main58540-22251-16i198308-198407
DARK BROWN,BROWN,TRIM4#
sub58540-22251

5 parts on this diagram · 1 diagram in section
