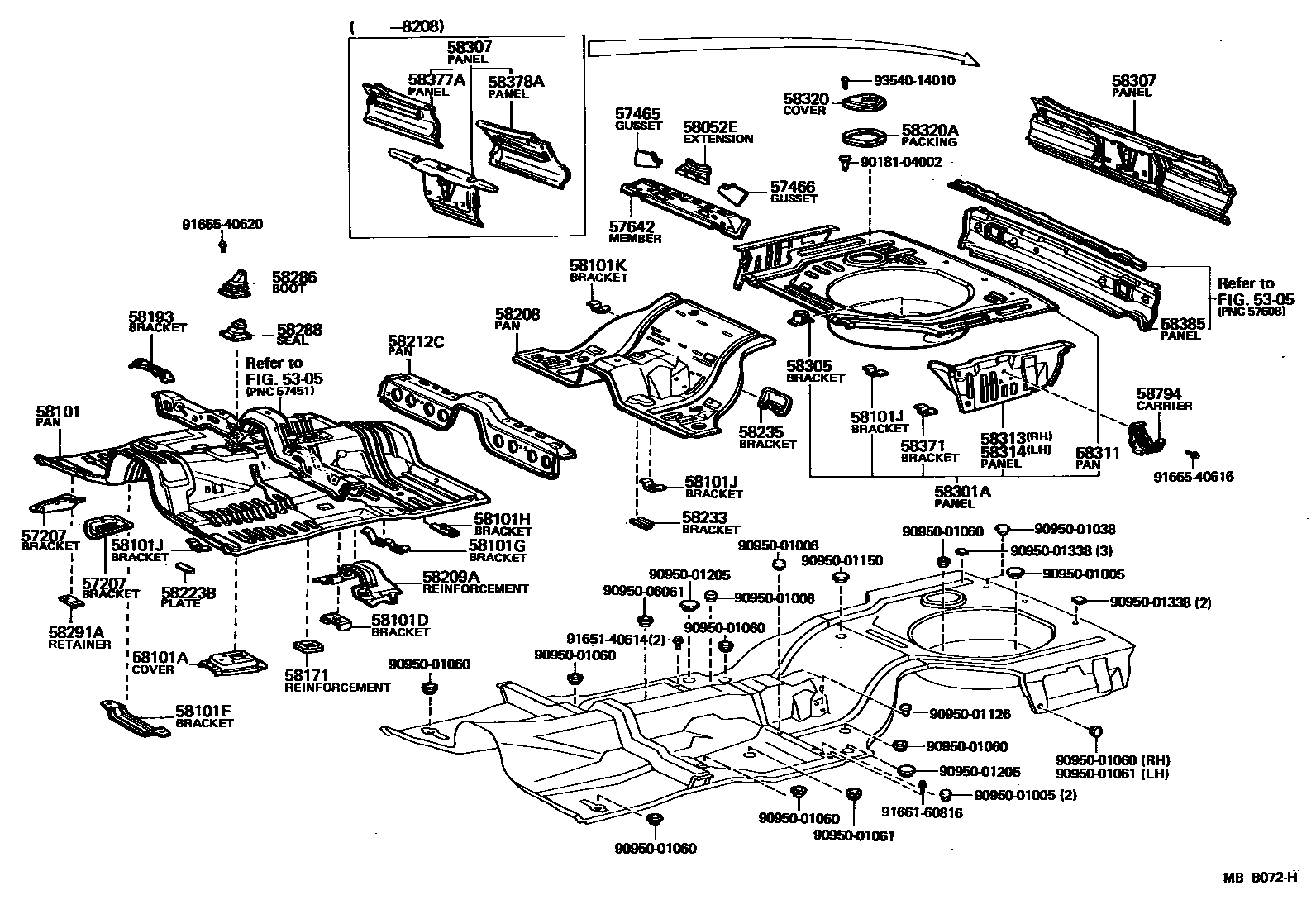

FLOOR PAN & LOWER BACK PANEL

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-22021iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH

main57208-22011iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH

57465GUSSET, CENTER FLOOR CROSSMEMBER, REAR, RH

main57465-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

57466GUSSET, CENTER FLOOR CROSSMEMBER, REAR, LH

main57466-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

57642MEMBER, CENTER FLOOR CROSS, NO.2

main57462-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58052EEXTENSION, CENTER FLOOR TO BRACE

main64227-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58101PAN SUB-ASSY, FRONT FLOOR

main58111-22070iGX5#,MX51,TX50198003-198204

sub58111-22100

sub58261-22130

sub58261-22140

main58111-22100iGX5#,MX51,TX50198204-198407

main58111-22110iGX61,LX60,MX61,SX60..4FC198208-198407

58101ACOVER, TRANSMISSION AUXILIARY

main58261-22090iGX5#,MX51,TX50..3FC,4FC,5F198003-198204

main58261-22100iTX50..4F198003-198204

main58261-22120iSX60..5F198208-198407

main58261-22130iGX61,LX60..5F198204-198407

main58261-22140iTX50..4F198204-198208

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58207-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58101FBRACKET, MOUNTING, FLOOR, NO.1

main58131-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58101GBRACKET, MOUNTING, FLOOR, NO.2

main58132-22021iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58101HBRACKET, MOUNTING, FLOOR, NO.3

main58133-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58101JBRACKET, MOUNTING, FLOOR, NO.4

main58236-14010iGX61,LX60,MX61,SX60198003-198407

58101KBRACKET, MOUNTING, FLOOR, NO.5

main58231-22020iGX5#,61,MX51,61,SX60,TX50198003-198407

58171REINFORCEMENT, PARKING BRAKE BASE

main58029-22022iGX61,LX60,MX61,SX60..4FC198208-198407

main58171-12030iGX5#,TX50198003-198008

main58171-22030iGX5#,MX51,TX50198008-198407

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58208PAN, CENTER FLOOR

main58211-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58212CPAN, CENTER FLOOR, FRONT

main58212-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58223BPLATE, ACCELERATOR PEDAL

main58223-20020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-22011iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING

main58235-22010iGX50,LX60,SX60,TX50198003-198407

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-22060iGX5#,TX50..MTM198003-198208

sub58280-22061

main58280-22061iGX61,LX60,SX60..5F198208-198407

58288SEAL, SHIFT LEVER BOOT

main58288-22021iGX5#,61,LX60,SX60,TX50..MTM198003-198407

58291ARETAINER, ACCELERATOR PEDAL

main58291-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58301APANEL SUB-ASSY, REAR FLOOR

main58301-22902iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-22230iGX5#,MX51,TX50198003-198208

main58307-22430iGX61,LX60,MX61,SX60198208-198407

58311PAN, REAR FLOOR

main58311-22090iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58313PANEL, REAR FLOOR SIDE, RH

main58313-22901iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub58313-22902

58314PANEL, REAR FLOOR SIDE, LH

main58314-22901iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub58314-22902

58320COVER, REAR FLOOR SERVICE HOLE

main58325-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58320APACKING, REAR FLOOR SERVICE HOLE

main58339-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58371BRACKET, FUEL PUMP SUPPORT

main58369-22031iGX5#,61,MX51,61,SX60,TX50198003-198407

58377APANEL, BODY LOWER BACK, RH

main58377-22010iGX5#,MX51,TX50198003-198208

58378APANEL, BODY LOWER BACK, LH

main58378-22020iGX5#,MX51,TX50198003-198208

58385PANEL, REAR VALANCE

main58381-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

58794CARRIER, JACK

main58791-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

9018104002

main90181-04002

9095001005

main90950-01005

9095001006

main90950-01006

9095001038

main90950-01038

9095001060

main90950-01060

9095001061

main90950-01061

9095001126

main90950-01126

9095001150

main90950-01150

9095001205

main90950-01205

9095001338

main90950-01338

9095006061

main90950-06061

9165140614

main91651-40614

9165540620

main91655-40620

9166160816

main91661-60816

9166540616

main91665-40616

9354014010

main93540-14010

54 parts on this diagram · 1 diagram in section
