COWL PANEL & WINDSHIELD GLASS

55076COVER, HEATER AIR DUCT HOLE

main55792-22030iGX61,LX60,MX61,SX60198208-198407

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-12010iGX5#,61,LX60,MX51,61,SX60,TX50198102-198407

main55457-22030iGX5#,TX50198003-198102

55701PANEL SUB-ASSY, COWL

main55700-22250iGX5#,MX51,TX50198003-198208

sub55700-22310

main55700-22390iGX61,MX61,SX60..CBR,EFI,TBO198208-198407

sub55700-22760

sub91651-40612

sub91651-40812

main55700-22410iLX60198308-198407

sub55700-22760

sub91651-40612

main55700-22520iGX61..TWC198208-198407

sub55700-22760

sub91651-40612

sub91651-40812

55713APANEL, COWL TOP SIDE, RH

main55713-22030iGX5#,MX51,TX50198003-198205

sub55713-22031

main55713-22031iGX5#,61,LX60,MX51,61,SX60,TX50198205-198407

55714APANEL, COWL TOP SIDE, LH

main55714-22030iGX5#,MX51,TX50198003-198205

sub55714-22031

main55714-22031iGX5#,61,LX60,MX51,61,SX60,TX50198205-198407

55755SCREEN, HEATER AIR DUCT

main55731-22020iGX5#,MX51,TX50198003-198208

main55731-22030iGX61,LX60,MX61,SX60198208-198407

55758COVER, HEATER AIR DUCT

main55077-22040iGX5#,MX51,TX50198003-198208

main55077-22050iGX61,LX60,MX61,SX60198208-198407

55781LOUVER, COWL VENTILATOR

main55708-22020iGX61,LX60,MX61,SX60198208-198407

main55781-22090iGX5#,MX51,TX50198003-198208

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55788-22060iGX61,LX60,MX61,SX60198208-198407

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55788-22060iGX61,LX60,MX61,SX60198208-198407

55784PAD, COWL OUTER PANEL, NO.1

main55783-22030iGX5#,MX51,TX50198003-198208

RH

main55783-22040iGX61,LX60,MX61,SX60198208-198407

RH

main55784-22030iGX5#,MX51,TX50198003-198208

LH

main55784-22040iGX61,LX60,MX61,SX60198208-198407

LH

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-22020iGX5#,MX51,TX50198003-198208

main53383-22030iGX61,LX60,MX61,SX60198208-198407

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-22030iGX61,LX60,MX61,SX60198208-198407

55950NOZZLE ASSY, DEFROSTER

main55950-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55971-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

56111GLASS, WINDSHIELD

main56111-22160iGX5#,TX50198003-198208

*TT,T=5.0

sub56111-95804

main56111-22220iMX51..SLU198110-198208

*LAM,T=5.3,BRONZE

main56111-22220iGX51,MX51..SLU198201-198207

EXCEED

main56111-22240iGX61,LX60,MX61,SX60..CTM,SCM,SDX,STR198208-198407

sub56111-22250

main56111-22250iGX61,MX61..SLU198208-198407

*TL,T=5.3,W/SUN SHADE

main56111-22260iGX61,MX61..SLU198208-198407

*LAM,T=5.3,BRONZE

main56111-95804iGX51,MX51..SLU198104-198208

*TL,T=5.3,W/SUN SHADE

56116SPACER, WINDSHIELD GLASS

main56116-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub56116-32040

56121KDAM KIT, WINDSHIELD GLASS

main04562-30030iGX5#,61,MX51,61,SX60,TX50198003-198308

sub04562-30040

main04562-30040iGX61,LX60,MX61,SX60198308-198407

9015940009

main90159-40009

9015950050

main90159-50050

9015950105

main90159-50105

9018904054

main90189-04054

9018905009

main90189-05009

9046706005

main90467-06005

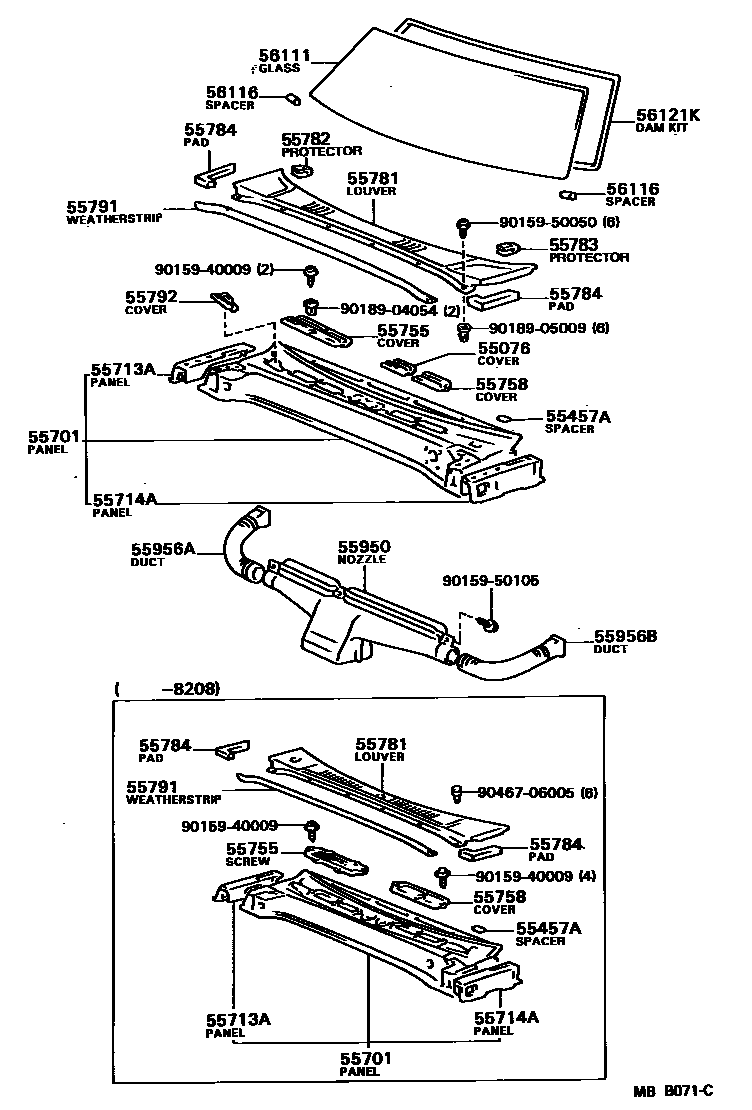

25 parts on this diagram · 1 diagram in section
