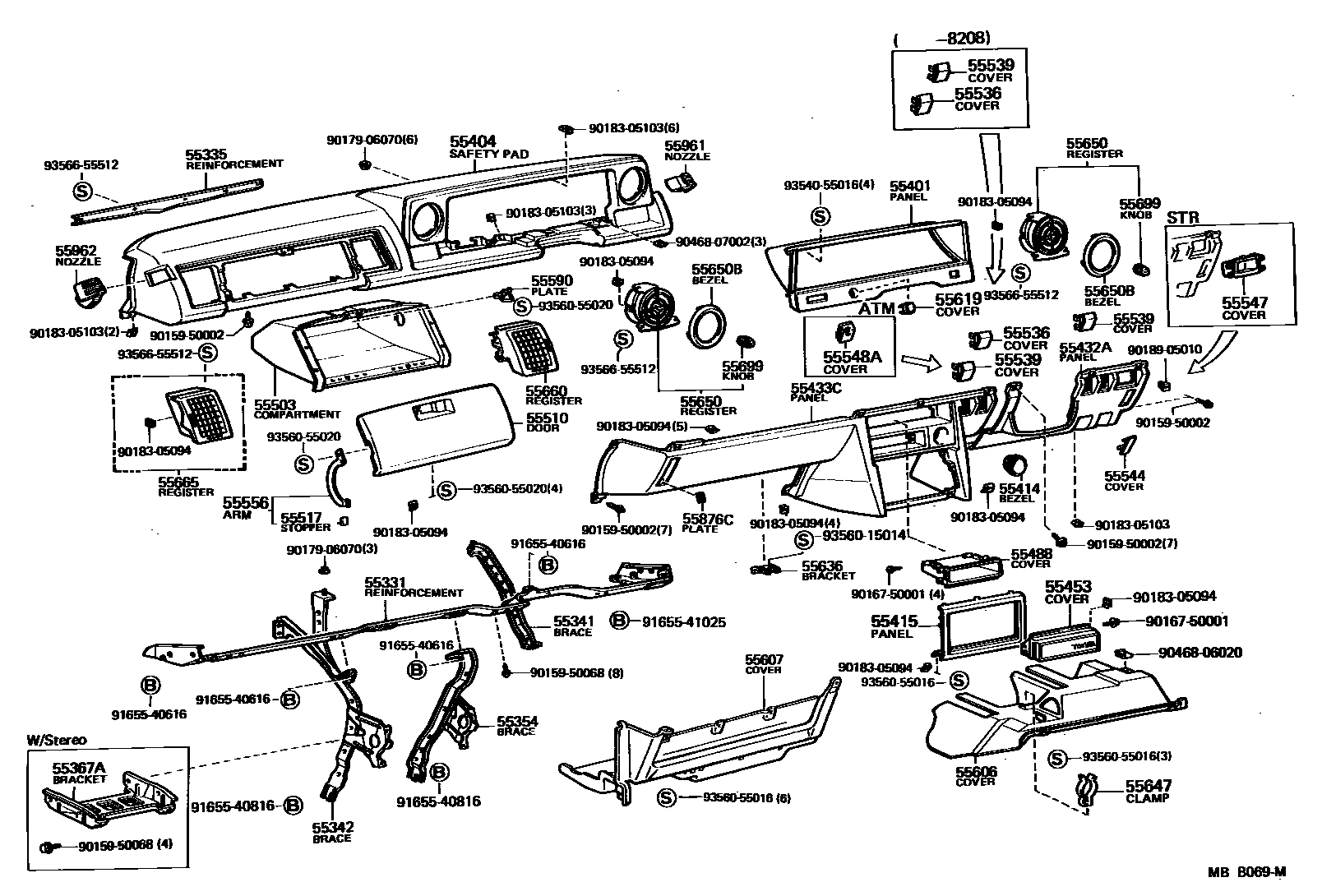

INSTRUMENT PANEL & GLOVE COMPARTMENT

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55335REINFORCEMENT, INSTRUMENT PANEL, UPPER

main55334-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-22060iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55309-22010iGX5#,MX51,TX50198003-198203

sub55309-22060

main55309-22060iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

55367ABRACKET, STEREO MOUNTING

main55367-22030iGX5#,61,LX60,MX51,61,SX60,TX50198010-198407

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-22130iTX50..CTM198003-198208

main55411-22140iGX5#,MX51,TX50..SCM,SDX,SLU,STR198003-198208

sub55411-22200

main55411-22190iLX60,SX60..CTM198208-198407

main55411-22200iGX61,LX60,MX61,SX60..SCM,SDX,SLU,STR198208-198407

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-22180-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main55401-22180-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55401-22180-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main55401-22180-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main55401-22180-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub55477-24020

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-22070-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main55432-22070-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55432-22070-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main55432-22070-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

main55432-22070-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main55432-22070-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main55433-22010-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55433-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main55433-22010-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

main55433-22010-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main55433-22010-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

55453COVER, RADIO TUNER OPENING

main55522-14080iLX60,SX60,TX50..MTM198109-198407

*30

sub55522-20070

main55522-14080iMX61..STR198208-198407

sub55522-20070

55488COVER, STEREO OPENING

main55521-22020iGX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22030-01iGX5#,MX51,TX50198003-198203

BLACK,BLACK,TRIM2#

sub55550-22060

main55550-22030-04iGX5#,MX51,TX50198003-198203

BLUE,BLUE,TRIM8#

sub55550-22060

main55550-22030-06iGX5#,MX51,TX50198003-198203

D-BROWN,BROWN,TRIM4#

sub55550-22060

main55550-22060-01iGX5#,MX51,TX50198203-198208

BLACK,BLACK,TRIM2#

sub55550-22060

main55550-22060-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55550-22060

main55550-22060-04iGX5#,MX51,TX50198203-198208

BLUE,BLUE,TRIM8#

sub55550-22060

main55550-22060-06iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

D-BROWN,BROWN,TRIM4#

sub55550-22060

main55550-22060-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55550-22060

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX5#,TX50198003-198109

55536COVER, REAR WINDOW WIPER SWITCH HOLE

main55539-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55539-22010

main55539-22010-02iGX61,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55539-22010

main55539-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55539-22010

main55539-22010-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

sub55539-22010

main55539-22010-06iGX61,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

sub55539-22010

main55539-22010-14iGX61,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55539-22010

55539COVER, SPARE SWITCH HOLE

main55539-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55539-22010

main55539-22010-02iGX61,LX60,MX61,SX60198208-198407

BLACK,RED/MAROON,TRIM2#

sub55539-22010

main55539-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55539-22010

main55539-22010-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

sub55539-22010

main55539-22010-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

sub55539-22010

main55539-22010-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55539-22010

55544COVER, INSTRUMENT PANEL REGISTER HOLE

main55544-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55544-22010

main55544-22010-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55544-22010

main55544-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55544-22010

main55544-22010-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

sub55544-22010

main55544-22010-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

sub55544-22010

main55544-22010-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55544-22010

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-22010-02iMX61..STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55547-22010

main55547-22010-06iMX61..STR198208-198407

D-BROWN,BROWN,TRIM4#

sub55547-22010

main55547-22010-14iMX61..STR198208-198407

BLUE,BLUE,TRIM8#

sub55547-22010

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-22030-02iGX61,LX60,MX61,SX60..4FC198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55548-22030-06iGX61,LX60,MX61,SX60..4FC198208-198407

D-BROWN,BROWN,TRIM4#

main55548-22030-14iGX61,LX60,MX61,SX60..4FC198208-198407

BLUE,BLUE,TRIM8#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22020iGX5#,MX51,TX50198003-198204

sub55606-22070

main55606-22070iGX5#,MX51,TX50198204-198302

sub55606-22071

main55606-22071iGX61,LX60,SX60..5F198302-198407

main55606-22080iGX61,MX61,SX60..4FC198208-198302

sub55606-22081

main55606-22081iGX61,LX60,MX61,SX60..4FC198302-198407

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55607-22010

main55607-22010-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55607-22010

main55607-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55607-22010

main55607-22010-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

sub55607-22010

main55607-22010-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

sub55607-22010

main55607-22010-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55607-22010

55619COVER, SWITCH HOLE

main55617-14010iGX50,61,LX60,MX61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGX5#,61,MX51,61,SX60,TX50198204-198407

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55650BBEZEL, INSTRUMENT PANEL REGISTER

main55661-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22030-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55660-22030

main55660-22030-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55660-22030

main55660-22030-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55660-22030

main55660-22030-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

sub55660-22030

main55660-22030-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55660-22030

55665REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22050-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55670-22050

main55670-22050-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55670-22050

main55670-22050-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55670-22050

main55670-22050-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

sub55670-22050

main55670-22050-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55670-22050

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55699-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55876CPLATE,SIDE VENTILATOR CONTROL NAME, NO.2

main55876-20010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22020-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55961-22020

main55961-22020-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55961-22020

main55961-22020-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55961-22020

main55961-22020-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

sub55961-22020

main55961-22020-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55961-22020

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22020-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub55962-22020

main55962-22020-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub55962-22020

main55962-22020-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub55962-22020

main55962-22020-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

sub55962-22020

main55962-22020-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub55962-22020

9015950002

main90159-50002

9015950068

main90159-50068

9016750001

main90167-50001

9017906070

main90179-06070

9018305094

main90183-05094

9018305103

main90183-05103

9018905010

main90189-05010

9046806020

main90468-06020

9046807002

main90468-07002

9165540616

main91655-40616

9165540816

main91655-40816

9165541025

main91655-41025

9354055016

main93540-55016

9356015014

main93560-15014

9356055016

main93560-55016

9356055020

main93560-55020

9356655512

main93566-55512

54 parts on this diagram · 1 diagram in section
