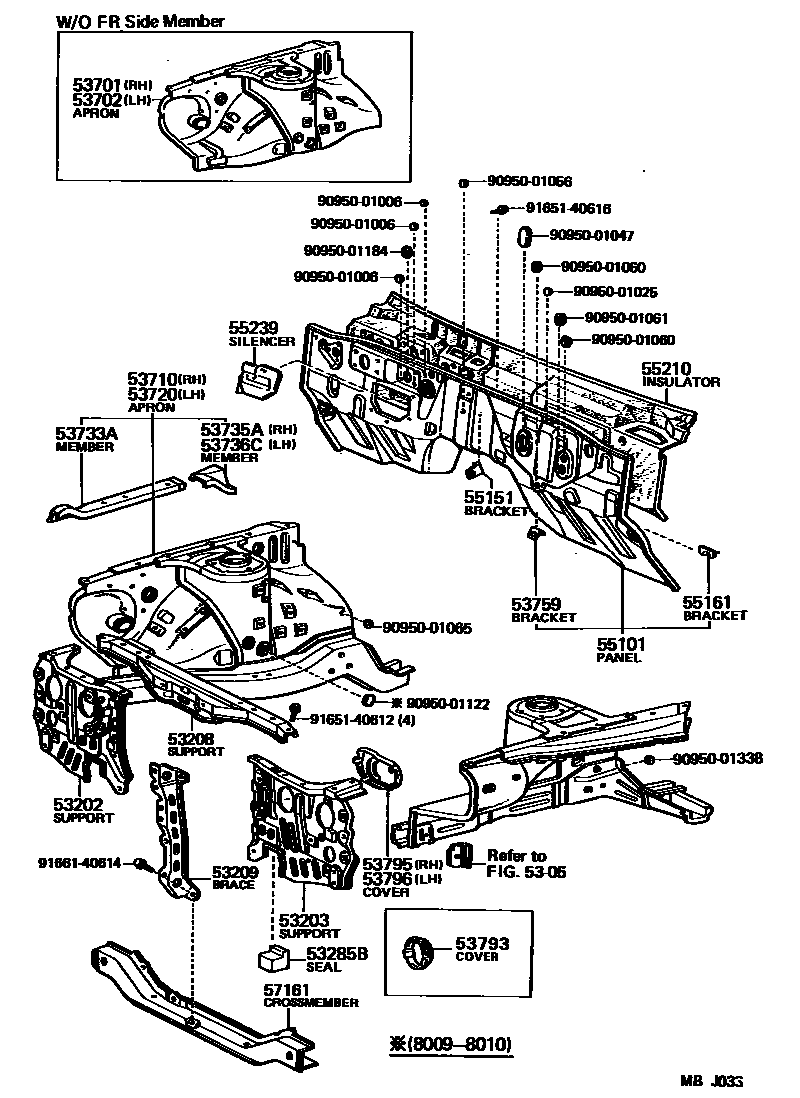

FRONT FENDER APRON & DASH PANEL

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-22060iGX5#,MX51198003-198208

sub53202-22080

main53202-22070iTX50198003-198208

main53202-22130iGX61,LX60,MX61198208-198407

main53202-22160iSX60198208-198407

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-22090iGX5#,MX51,TX50198003-198208

sub53203-22100

main53203-22140iGX61,LX60,MX61,SX60198208-198407

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

main53205-22020iGX5#,MX51,TX50198003-198208

sub53205-22021

main53205-22021iGX61,LX60,MX61,SX60198208-198407

53209BRACE SUB-ASSY, HOOD LOCK

main53217-22060iGX5#,TX50198003-198208

main53217-22071iMX51198110-198208

main53217-22080iGX61,LX60,SX60198208-198407

sub53217-22090

main53217-22090iMX61198208-198407

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-22010iMX61198402-198407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22903iGX5#,MX51198003-198208

sub53701-22916

sub48603-22030

sub57117-22050

main53701-22905iTX50198003-198208

sub53701-22917

sub48603-22030

sub57117-22050

main53701-22914iGX61..TWC198208-198407

main53701-22916iGX61,MX61,SX60..CBR,EFI,TBO198208-198407

main53701-22917iLX60198208-198407

main53701-22919iLX60198208-198407

COLD SPEC

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22905iGX5#,MX51198003-198208

sub53702-22916

sub48609-22050

sub57117-22050

sub94110-40600

main53702-22907iTX50198003-198208

sub53702-22919

sub48609-22050

sub57117-22050

sub94110-40600

main53702-22915iGX61,LX60,MX61,SX60198208-198407

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-22090iGX5#,MX51198003-198208

W/URETHANE BUMPER

sub53710-22901

sub48603-22030

main53710-22091iGX61..EFI198208-198407

sub53710-22310

main53710-22100iTX50..CTM198003-198208

W/STEEL BUMPER

sub53710-22902

sub48603-22030

sub57117-22050

main53710-22110iTX50198003-198208

W/URETHANE BUMPER

sub53710-22903

sub48603-22030

main53710-22111iLX60198308-198407

main53710-22131iLX60198308-198407

COLD SPEC

main53710-22310iMX61,SX60198208-198407

main53710-22330iGX61..TWC198208-198407

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-22150iGX5#,MX51198003-198208

W/URETHANE BUMPER

sub53720-22900

sub48609-22050

sub94110-40600

main53720-22151iGX61,MX61,SX60..CBR,EFI,TBO198208-198407

sub53720-22390

main53720-22230iTX50..CTM198003-198208

W/STEEL BUMPER

sub53720-22904

sub48609-22050

sub57117-22050

sub94110-40600

main53720-22240iTX50198003-198208

W/URETHANE BUMPER

sub53720-22901

sub48609-22050

sub94110-40600

main53720-22370iGX61..TWC198208-198407

sub53720-22390

main53720-22390iLX60198308-198407

53733AMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT

main53733-22040iGX5#,61,LX60,MX51,61,SX60,TX50198009-198407

RH

main53734-22040iGX5#,61,LX60,MX51,61,SX60,TX50198009-198407

LH

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-22030iGX5#,61,LX60,MX51,61,SX60,TX50198009-198407

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-22030iGX5#,61,LX60,MX51,61,SX60,TX50198009-198407

53759BRACKET, FLEXIBLE HOSE MOUNTING, NO.1

main53759-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

53793COVER, HEADLAMP WIRE HARNESS HOLE, NO.1

main53793-22010iMX51198110-198208

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-22010iGX61,MX61,SX60198208-198407

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-22010iGX61,MX61,SX60198208-198407

55101PANEL SUB-ASSY, DASH

main55101-22460iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55151BRACKET, FLEXIBLE HOSE MOUNTING, NO.2

main55151-22030iTX50..4F198003-198208

55161BRACKET, HEATER MOUNTING

main55164-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

55210INSULATOR ASSY, DASH PANEL

main55210-22090iGX5#,TX50198003-198008

main55210-22091iGX5#,61,LX60,MX51,61,SX60,TX50198008-198407

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

57161CROSSMEMBER, FRONT

main57104-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub57104-22080

9095001006

main90950-01006

9095001025

main90950-01025

9095001047

main90950-01047

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001122

main90950-01122

9095001184

main90950-01184

9095001338

main90950-01338

9165140612

main91651-40612

9165140616

main91651-40616

9166140614

main91661-40614

36 parts on this diagram · 1 diagram in section
