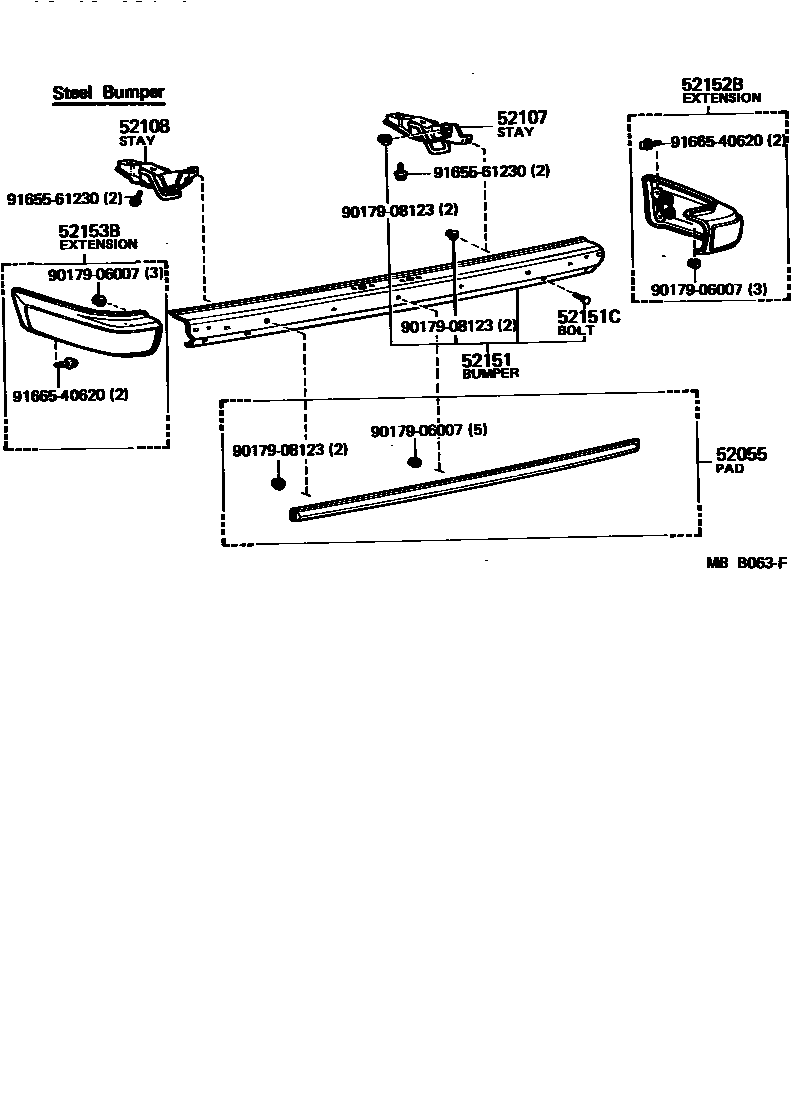

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-29065iTX50..CTM198003-198208

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-22010iTX50..CTM198003-198208

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-22010iTX50..CTM198003-198208

52151BUMPER ASSY, REAR

main52151-29385iTX50..CTM198003-198208

sub52151-29515

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08017iTX50..CTM198003-198208

52152BEXTENSION, REAR BUMPER, RH

main52106-29065iTX50..CTM198003-198208

main52152-22030iGX61,LX60,MX61,SX60198208-198407

main52152-22050-03iGX61,MX61..SLU198302-198407

GRAY,GRAY,2M7

sub52152-22901

main52152-22050-04iGX61,MX61..SDX,SLU198208-198407

D-BLUE,BLUE,8A4

sub52152-22901

main52152-22050-05iGX61,MX61..SLU198208-198407

L-BEIGE,BEIGE,4D2 ,2K2 ,037 ,2M5

sub52152-22901

main52152-22050-08iGX61,MX61..SLU198208-198407

SUPER WHITE,IVORY,035

sub52152-22901

main52152-22050-13iGX61..SLU198305-198401

EXCEED,SILVER-M,GRAY

sub52152-22901

main52152-22050-14iGX61,LX60,SX60..SCM,SDX198302-198407

EXTRA,BLUE,BLUE,869

sub52152-22901

main52152-22050-18iGX61,LX60,SX60..SCM,SDX198302-198407

EXTRA,WHITE,IVORY,033

sub52152-22901

52153BEXTENSION, REAR BUMPER, LH

main52107-29185iTX50..CTM198003-198208

main52153-22030iGX61,LX60,MX61,SX60198208-198407

main52153-22050-03iGX61,MX61..SLU198302-198407

GRAY,GRAY,2M7

sub52153-22901

main52153-22050-04iGX61,MX61..SDX,SLU198208-198407

D-BLUE,BLUE,8A4

sub52153-22901

main52153-22050-05iGX61,MX61..SLU198208-198407

L-BEIGE,BEIGE,4D2 ,2K2 ,037 ,2M5

sub52153-22901

main52153-22050-08iGX61,MX61..SLU198208-198407

SUPER WHITE,IVORY,035

sub52153-22901

main52153-22050-13iGX61..SLU198305-198401

EXCEED,SILVER-M,GRAY

sub52153-22901

main52153-22050-14iGX61,LX60,SX60..SCM,SDX198302-198407

EXTRA,BLUE,BLUE,869

sub52153-22901

main52153-22050-18iGX61,LX60,SX60..SCM,SDX198302-198407

EXTRA,WHITE,IVORY,033

sub52153-22901

9017906007

main90179-06007

9017908123

main90179-08123

9165561230

main91655-61230

9166540620

main91665-40620

11 parts on this diagram · 3 diagrams in section
