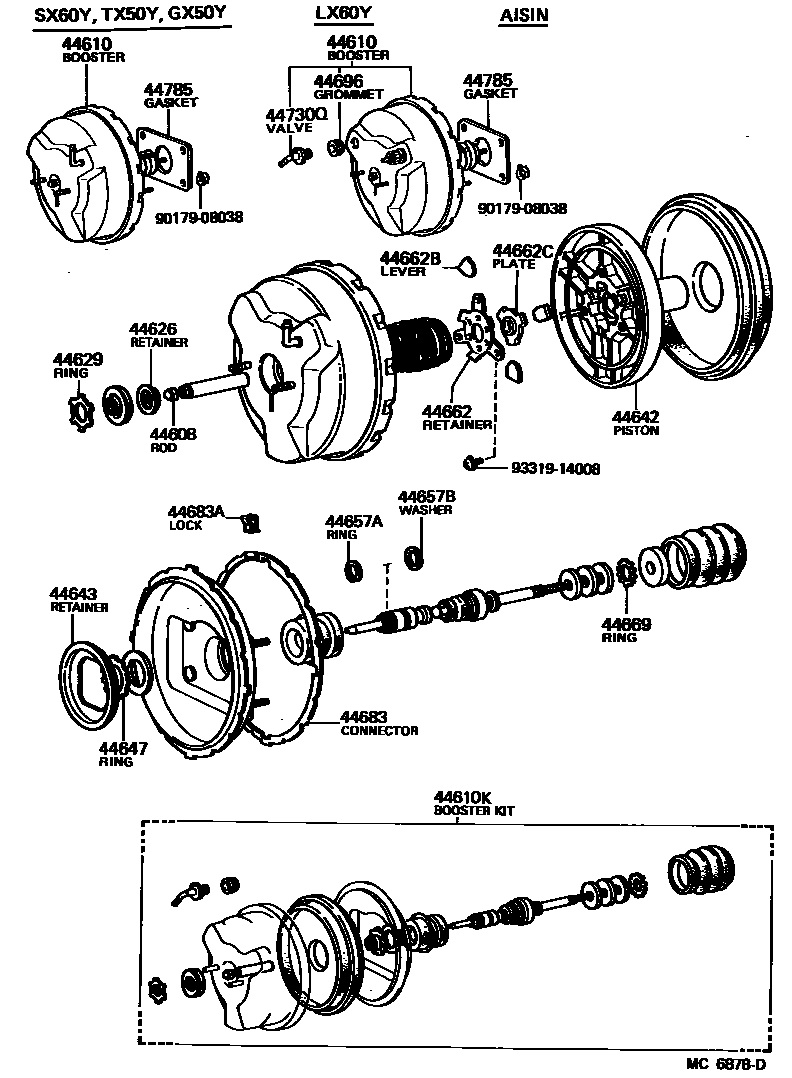

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iGX50,TX50198003-198407

main44608-22090iGX51,MX51198003-198407

44610BOOSTER ASSY, BRAKE

main44610-22330iGX50,SX60,TX50198003-198407

main44610-22340iGX51198003-198407

main44610-22350iLX60198308-198407

main44610-22400iGX61..SDX198208-198407

main44610-22410iMX51,61198110-198407

44610KBOOSTER KIT, BRAKE

main04443-14320iSX60198208-198407

main04443-22230iGX50,TX50198003-198208

main04443-22240iGX51198003-198208

main04443-22250iGX51,61..SLU198003-198407

W/ESC

main04443-22260iLX60198308-198407

main04443-22311iGX61..SDX198208-198407

main04443-22320iMX51,61198110-198407

main04443-22330iGX61..SLU198208-198407

44626RETAINER, BOOSTER ROD CUP

main44626-60010iGX61,LX60,SX60..CTM,SCM,SDX198003-198407

44629RING, CIRCULAR INTERNAL

main44628-60010iGX61,LX60,SX60..CTM,SCM,SDX198003-198407

44642PISTON, BRAKE BOOSTER

main44642-14170iGX50,LX60,SX60,TX50198003-198407

main44642-25080iGX51,MX51198003-198407

main44642-30030iGX61..SDX198208-198407

44643RETAINER, DIAPHRAGM

main44643-60010iGX50,TX50198003-198407

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iGX61,LX60,SX60..CTM,SCM,SDX198003-198407

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iGX50,TX50198003-198407

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iGX50,LX60,SX60,TX50198003-198407

44662RETAINER, REACTION, NO.1

main44662-20460iGX61..SDX198208-198407

main44662-35100iGX50,LX60,SX60,TX50198003-198407

44662BLEVER, REACTION

main44661-35100iGX50,TX50198003-198407

44662CPLATE, REACTION, NO.1

main44607-22330iGX50,LX60,SX60,TX50198003-198407

main44607-22380iGX61..SDX198208-198407

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iGX50,TX50198003-198407

44683CONNECTOR, BOOSTER BODY

main44682-20150iGX50,LX60,SX60,TX50198003-198407

44683ALOCK, CONNECTOR

main44683-20100iGX50,LX60,SX60,TX50198003-198407

44696GROMMET, CHECK VALVE

main90480-24439iLX60198308-198407

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-20030iLX60198308-198407

BOOSTER SIDE

44785GASKET, BRAKE BOOSTER

main44785-30020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

9017908038

main90179-08038

9331914008

main93319-14008

21 parts on this diagram · 8 diagrams in section
