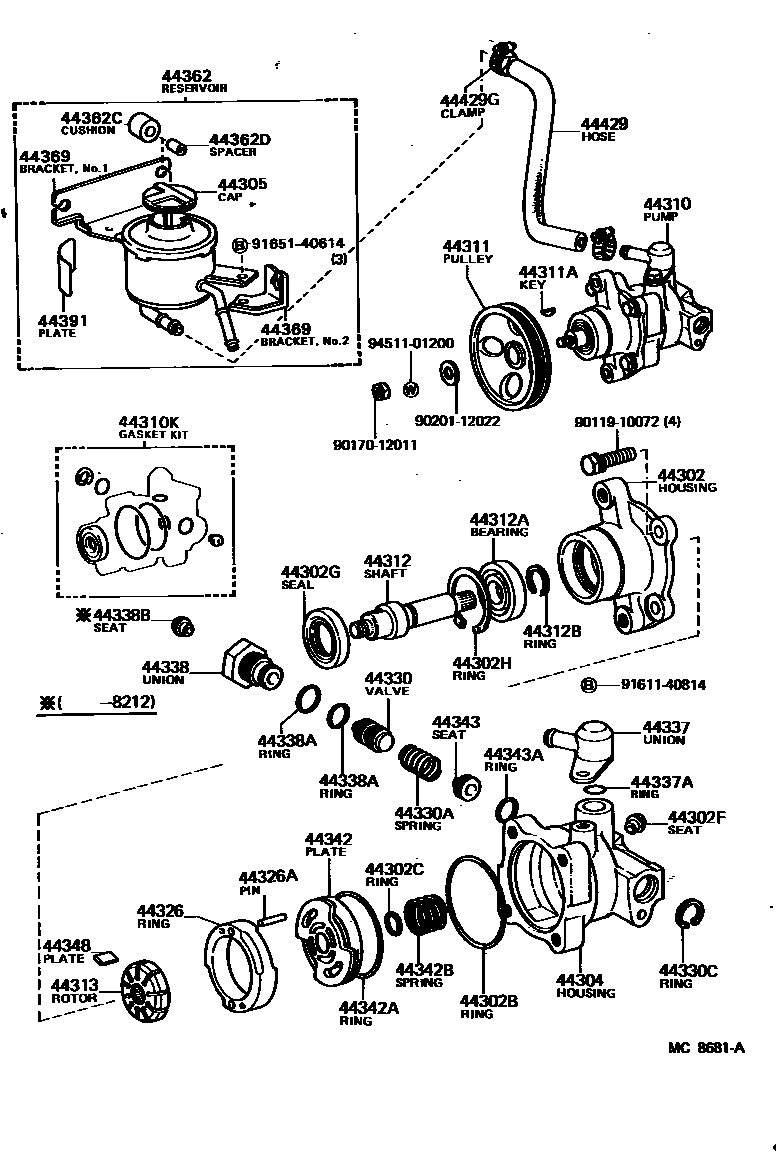

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iTX50198003-198208

main44302-14010iSX60198208-198407

main44302-22010iGX5#198003-198201

main44302-22020iGX5#,MX51198110-198407

main44302-22030iGX61..TWC198208-198407

sub44302-22031

main44302-30020iLX60198308-198407

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-27002iGX5#198003-198201

main90301-60001iMX51,TX50198003-198407

main90301-63002iGX61..TWC198208-198407

main90301-69170iLX60198308-198407

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main90301-15002iGX5#198003-198201

main96710-01016iMX51,TX50198003-198111

sub96711-19016

main96711-19016iGX61,MX61,SX60..CBR,EFI,TBO198111-198407

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05003iGX5#198003-198201

main90410-05035iTX50198003-198407

OD=11.8

main90410-06030iTX50198003-198208

OD=13

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17001iGX5#198003-198201

main90311-18003iGX61..TWC198208-198305

sub90311-18008

main90311-18008iGX61..TWC198305-198407

main90311-24001iGX5#,MX51,TX50198003-198407

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iGX61..TWC198208-198407

main90521-44002iMX51,TX50198003-198407

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-14010iTX50198003-198208

main44304-14030iSX60198208-198407

sub44304-14031

sub44343-12040

sub90501-12103

main44304-22010iGX5#,61..EFI198201-198311

sub44304-22011

sub90105-10092

main44304-22011iGX61..EFI198311-198407

sub44304-22012

sub44343-12040

sub90501-12103

main44304-30040iLX60198308-198407

main44304-30060iMX51,61198110-198311

sub44304-30061

sub90105-10092

main44304-30061iMX61198311-198407

sub44304-30062

sub44343-12040

sub90501-12103

main44324-22010iGX5#198003-198201

main44324-22030iGX61..TWC198312-198407

sub44324-22031

main44324-32010iGX61..TWC198208-198312

sub44324-22030

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22010iGX5#198003-198201

main44305-24010iMX51,61198110-198407

sub44305-22040

main44305-30020iTX50198003-198407

sub44305-22040

44310PUMP ASSY, VANE

main44320-14140iGX61..TWC198208-198305

sub44320-14141

main44320-14141iGX61..TWC198305-198407

main44320-22070iTX50198003-198208

main44320-22100iGX5#,61..EFI198201-198311

sub44320-22101

sub90105-10092

main44320-22101iGX61..EFI198311-198407

sub44320-24011

main44320-22131iLX60198308-198407

main44320-22180iSX60198208-198407

main44320-22901iGX5#198003-198201

main44320-24020iMX51,61198110-198311

sub44320-24021

sub90105-10092

main44320-24021iMX61198311-198407

44310KGASKET KIT, POWER STEERING PUMP

main04446-14010iMX51198003-198407

sub04446-14040

main04446-16010iGX61..TWC198208-198312

sub04446-16011

main04446-16011iGX61..TWC198312-198407

main04446-22010iLX60198308-198407

main04446-22020iTX50198003-198208

main04446-22030iGX5#198003-198201

44311PULLEY, VANE PUMP

main44311-12010iTX50198003-198208

main44311-14010iSX60198208-198407

main44311-22020iGX5#198003-198201

main44311-22030iMX51198110-198407

main44311-22040iGX61..TWC198208-198209

sub44311-22041

main44311-22041iGX61..TWC198209-198407

main44311-30030iGX61..EFI198308-198407

sub44311-30070

main44311-30040iLX60198308-198407

44311AKEY, VANE PUMP PULLEY

main90280-05002iGX5#198003-198201

main90280-05008iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

44312SHAFT, VANE PUMP

main44312-12010iMX51,TX50198003-198407

main44312-12020iGX61..TWC198208-198407

main44312-22010iGX5#198003-198201

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iGX5#,61,MX51,61,SX60,TX50..CBR,EFI,TBO198003-198407

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10002iGX5#198003-198201

main90520-10003iGX61..TWC198208-198407

main90520-15001iMX51,TX50198003-198407

44313ROTOR, VANE PUMP

main44313-12010iMX51,TX50198003-198407

sub44313-22040

main44313-12020iMX51,TX50198003-198407

sub44313-22050

main44313-12030iGX5#,61,MX51,61,SX60,TX50198003-198407

sub44313-22060

main44313-12040iMX51,TX50198003-198407

sub44313-22070

main44313-12050iMX51,TX50198003-198407

sub44313-22080

44326RING, CAM(FOR VANE PUMP)

main44325-12010iMX51,TX50198003-198407

main44325-12020iGX5#,61,MX51,61,SX60,TX50198003-198407

main44325-12030iMX51,TX50198003-198407

main44325-12040iMX51,TX50198003-198407

main44325-12050iMX51,TX50198003-198407

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04016iGX5#198003-198201

main90250-05008iMX51,TX50198003-198407

main90250-05008iGX61..TWC198208-198407

main90250-05017iGX61..TWC198208-198407

44330VALVE ASSY, FLOW CONTROL

main44330-12010iTX50198003-198207

sub44330-12130

main44330-12020iTX50198003-198207

sub44330-12140

main44330-12030iTX50198003-198207

sub44330-12150

main44330-12040iGX5#,TX50198003-198207

sub44330-12160

main44330-12050iTX50198003-198207

sub44330-12170

main44330-12060iTX50198003-198207

sub44330-12180

main44330-12130iGX5#,61,MX51,61,SX60,TX50198207-198407

sub44330-12131

main44330-12140iGX5#,61,MX51,61,SX60,TX50198207-198407

sub44330-12141

main44330-12150iGX5#,61,MX51,61,SX60,TX50198207-198407

sub44330-12151

main44330-12160iGX5#,61,MX51,61,SX60,TX50198207-198407

sub44330-12161

main44330-12170iGX5#,61,MX51,61,SX60,TX50198207-198407

sub44330-12171

main44330-12180iGX5#,61,MX51,61,SX60,TX50198207-198407

sub44330-12181

main44330-22010iGX5#198003-198201

MARK A

main44330-22020iGX5#198003-198201

MARK B

main44330-22030iGX5#198003-198201

MARK C

main44330-24010iMX51198110-198207

sub44330-12130

main44330-24020iMX51198110-198207

sub44330-12140

main44330-24030iMX51198110-198207

sub44330-12150

main44330-24040iMX51198110-198207

sub44330-12160

main44330-24050iMX51198110-198207

sub44330-12170

main44330-24060iMX51198110-198207

sub44330-12180

main44330-30041iLX60198308-198407

MARK A

main44330-30051iLX60198308-198407

MARK B

main44330-30061iLX60198308-198407

MARK C

main44330-30071iLX60198308-198407

MARK D

main44330-30081iLX60198308-198407

MARK E

main44330-30091iLX60198308-198407

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iMX51,TX50198003-198407

main90501-14044iGX5#198003-198201

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iMX51,TX50198003-198407

main96151-02200iGX61..TWC198208-198407

44337UNION, POWER STEERING SUCTION PORT

main44337-22030iGX61..TWC198208-198407

main44337-22040iLX60198308-198407

main90404-16017iSX60198208-198407

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19013iGX61,LX60,SX60..CBR,DSL,TWC198208-198407

44338UNION, PRESSURE PORT

main44308-14040iGX61..TWC198208-198407

sub44308-14041

main44308-22020iGX5#,61,MX51,61..EFI,TBO198110-198407

main44308-22030iLX60198308-198407

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iGX5#,61,MX51,61,SX60198110-198407

main96710-01014iMX51198110-198111

sub96711-19014

main96711-19014iMX51198111-198407

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06004iGX61,MX51,61,SX60..CBR,EFI,TBO198110-198212

main90410-06030iGX5#198201-198208

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iGX5#,MX51,TX50198003-198407

main44341-30020iLX60198308-198407

main44342-12010iGX61..TWC198208-198312

main44342-22010iGX61..TWC198312-198407

sub44342-30020

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iGX61..TWC198312-198407

ID=13.4

main90301-30004iGX61..TWC198312-198407

ID=30

main90301-37002iGX61..TWC198208-198312

ID=37.5

main90301-53002iMX51,TX50198003-198407

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iGX61,MX61,SX60..CBR,EFI,TBO198003-198407

44343SEAT, FLOW CONTROL SPRING

main44343-12010iMX51,TX50198003-198407

main44343-12030iGX61..TWC198208-198407

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iMX51,TX50198003-198111

sub96711-19014

main96711-19014iMX51,TX50198111-198407

main96711-19019iGX61..TWC198208-198407

44348PLATE, VANE PUMP

main44345-12010iMX51,TX50198003-198407

main44345-12020iMX51,TX50198003-198407

main44345-12030iMX51,TX50198003-198407

main44345-12040iGX5#,61,MX51,61,SX60,TX50198003-198407

main44345-12050iMX51,TX50198003-198407

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-22040iGX5#198003-198201

main44306-22070iTX50198003-198208

main44306-22100iGX5#,61..EFI198201-198407

sub44306-22200

main44306-24010iMX51,61198110-198407

sub44306-22200

sub44305-22040

main44360-22060iGX61,SX60..CBR,TWC198208-198407

main44360-22080iLX60198308-198407

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90540-09004iGX61,LX60,SX60..CBR,DSL,TWC198208-198407

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06014iGX61,LX60,SX60..CBR,DSL,TWC198208-198407

44369BRACKET, OIL RESERVOIR, NO.1

main44369-22030iGX61,SX60..CBR,TWC198208-198407

NO.1

main44379-22030iGX61,SX60..CBR,TWC198208-198407

NO.2

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-22010iGX5#198104-198201

main44391-30020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

44429HOSE, RESERVOIR TO OIL PUMP

main44348-22070iGX61..TWC198208-198407

main44348-22080iLX60198308-198407

main44348-22090iSX60198208-198407

44429GCLAMP, RESERVOIR TO OIL PUMP HOSE

main90460-26001iGX61,LX60,SX60..CBR,DSL,TWC198208-198407

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161140814

main91611-40814

9165140614

main91651-40614

9451101200

main94511-01200

45 parts on this diagram · 6 diagrams in section
