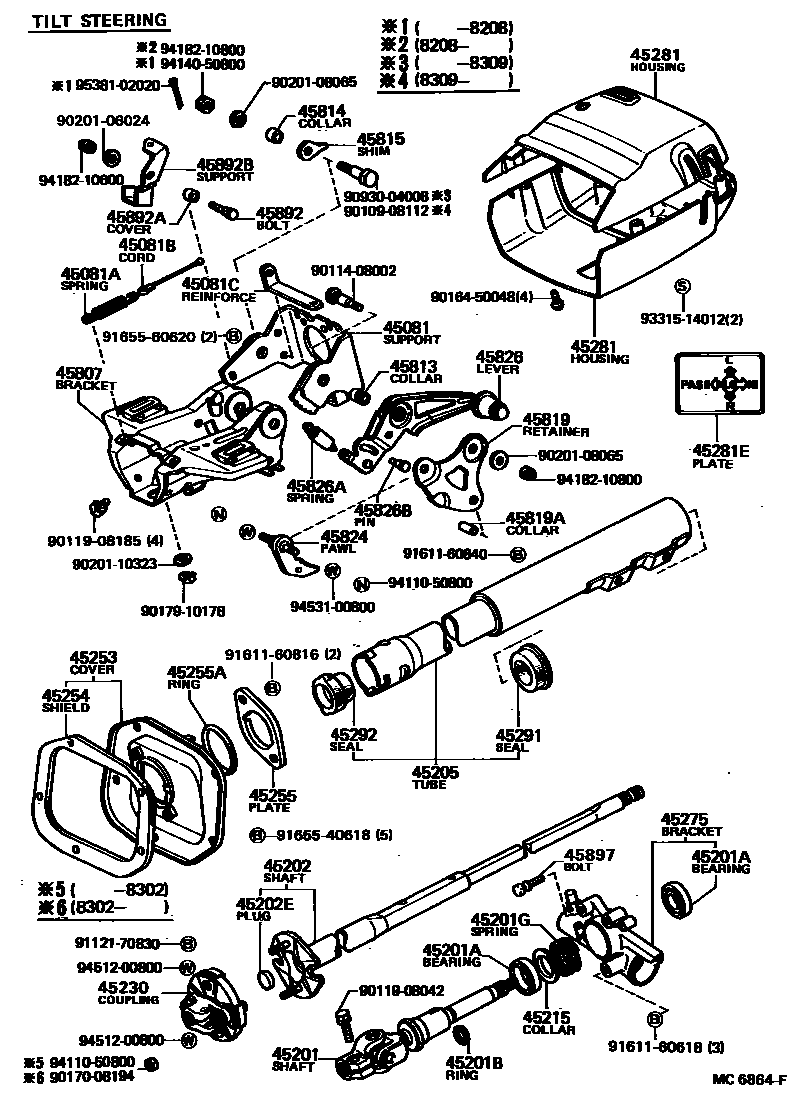

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

45081SUPPORT SUB-ASSY, TILT STEERING

main45081-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45081ASPRING, TENSION(FOR TILT STEERING)

main90506-23009iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45081BCORD(FOR TILT STEERING)

main90945-02034iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45081CREINFORCE, TILT STEERING SUPPORT

main45821-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

UPR

main90363-28001iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45220-22030iGX50,LX60,MX61,SX60,TX50..CTM,SDX,STR198003-198407

main45220-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

W/POWER STEERING

45202EPLUG, PLATE(FOR STEERING INTERMEDIATE SHAFT)

main90333-21008iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-22090iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45230COUPLING ASSY, FLEXIBLE

main45230-14020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45253COVER, STEERING COLUMN HOLE

main45025-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45254SHIELD, STEERING COLUMN HOLE

main45254-22031iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45275BRACKET, STEERING COLUMN, UPPER

main45280-22210iGX5#,TX50198003-198108

sub45280-22211

sub82711-14530

sub93319-13008

main45280-22211iGX5#,61,LX60,MX51,61,SX60,TX50198108-198407

45281HOUSING, STEERING COLUMN

main45286-22250-01iGX5#,MX51,TX50198003-198208

UPR,BLACK,BLACK,TRIM2#

sub45286-22250

main45286-22250-04iGX5#,MX51,TX50198003-198208

UPR,BLUE,BLUE,TRIM8#

sub45286-22250

main45286-22250-06iGX5#,MX51,TX50198003-198208

UPR,DARK BROWN,BROWN,TRIM4#

sub45286-22250

main45286-22350-02iGX61,LX60,MX61,SX60198208-198407

UPR,DEEP MAROON,RED/MAROON,TRIM3#

sub45286-22350

main45286-22350-04iGX61,LX60,MX61,SX60198208-198407

UPR,BLUE,BLUE,TRIM8#

sub45286-22350

main45286-22350-06iGX61,LX60,MX61,SX60198208-198407

UPR,DARK BROWN,BROWN,TRIM4#

sub45286-22350

main45287-22170-01iGX5#,MX51,TX50198003-198208

LWR,BLACK,BLACK,TRIM2#

sub45287-22170

main45287-22170-04iGX5#,MX51,TX50198003-198208

LWR,BLUE,BLUE,TRIM8#

sub45287-22170

main45287-22170-06iGX5#,MX51,TX50198003-198208

LWR,DARK BROWN,BROWN,TRIM4#

sub45287-22170

main45287-22260-02iGX61,LX60,MX61,SX60198208-198407

LWR,DEEP MAROON,RED/MAROON,TRIM3#

main45287-22260-04iGX61,LX60,MX61,SX60198208-198407

LWR,BLUE,BLUE,TRIM8#

main45287-22260-06iGX61,LX60,MX61,SX60198208-198407

LWR,DARK BROWN,BROWN,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45292SEAL, MAIN SHAFT LOWER DUST

main45292-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub45292-22040

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45813-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45813-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45813-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45813-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45814-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45815SHIM, TILT STEERING SUPPORT

main45815-22060iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45815-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45815-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45815-22090iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main45815-22100iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45819RETAINER, TILT LEVER

main45819-22011iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-08002iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45824PAWL, TILT STEERING

main45890-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45826LEVER, STEERING TILT

main45804-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-14001iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45826BPIN(FOR STEERING TILT LEVER)

main72538-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45892BOLT, TILT STEERING SUPPORT STOPPER

main45898-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45892ACOVER, TILT STEERING SUPPORT STOPPER

main45899-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45892BSUPPORT, TILT STEERING COLUMN COVER

main45289-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

45897BOLT, STEERING LOCK SET

main45897-14010iGX61,MX61,SX60198208-198302

W/TILT STEERING

sub45897-12030

9010908112

main90109-08112

9011408002

main90114-08002

9011908042

main90119-08042

9011908185

main90119-08185

9016450048

main90164-50048

9017008194

main90170-08194

9017910178

main90179-10178

9020106024

main90201-06024

9020108065

main90201-08065

9020110323

main90201-10323

9093004008

main90930-04008

9112170830

main91121-70830

9161160618

main91611-60618

9161160816

main91611-60816

9161160840

main91611-60840

9165540618

main91655-40618

9165560620

main91655-60620

9331514012

main93315-14012

9411050800

main94110-50800

9414050800

main94140-50800

9418210600

main94182-10600

9418210800

main94182-10800

9451200800

main94512-00800

9453100800

main94531-00800

9538102020

main95381-02020

61 parts on this diagram · 6 diagrams in section
