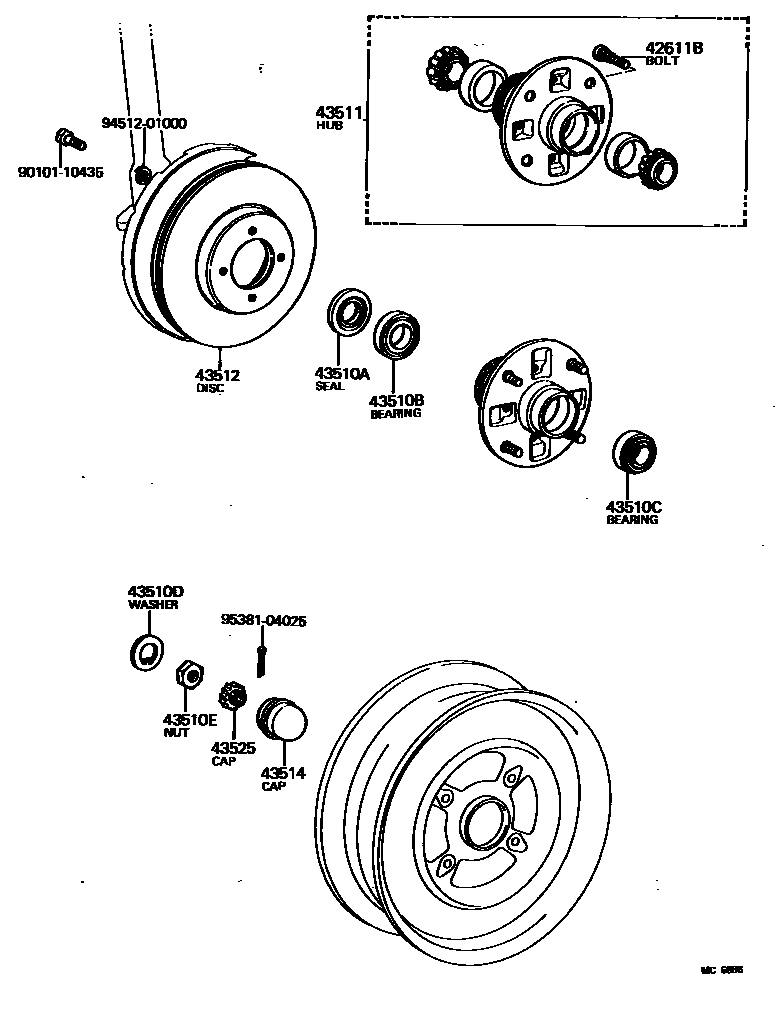

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iGX5#,61,MX51,61,SX60,TX50198003-198307

sub90942-02047

main90942-02047iGX61,LX60,MX61,SX60198307-198407

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31036iGX5#,TX50198003-198105

sub90368-31067

main90368-31067iGX5#,61,LX60,MX51,61,SX60,TX50198105-198407

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

43511HUB, FRONT AXLE

main43502-29015iGX5#,MX51,TX50198003-198208

sub43502-29035

main43502-29035iGX61,LX60,MX61,SX60198208-198407

43512DISC, FRONT

main43512-22050iGX5#,TX50198003-198007

sub43512-22051

main43512-22051iGX5#,MX51,TX50198007-198407

main43512-24020iGX61..TWC198208-198407

sub43512-22060

43514CAP, FRONT HUB GREASE

main43514-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section
