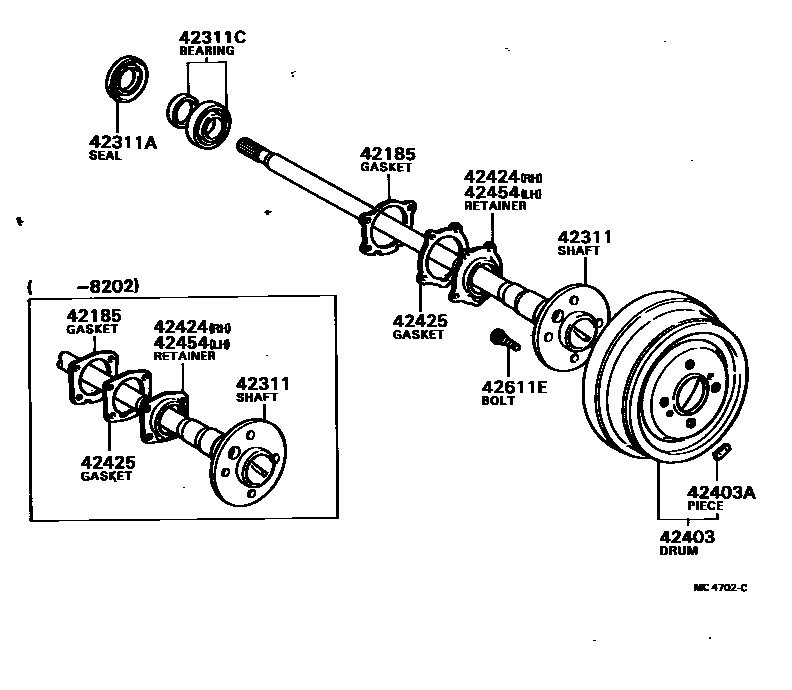

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0005 1

42185GASKET, REAR AXLE HOUSING END

main42185-14020iGX50,LX60,SX60,TX50¥620198202-198407

main42185-22020iGX50,TX50¥320198003-198202

main42185-22030iGX51,MX51¥250198003-198407

42311SHAFT, REAR AXLE

main42301-22050iGX51,61,MX51,61¥22,300198003-198407

main42311-22110iLX60,SX60,TX50¥20,000198003-198407

main42311-22130iGX50¥19,800198003-198208

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009iGX51,61,MX51,61¥290198003-198407

main90311-52059iGX50,LX60,SX60,TX50¥320198003-198407

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011iGX50,LX60,SX60,TX50¥3,710198003-198407

sub04421-30012¥3,700

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060iGX50,LX60,SX60,TX50¥13,100198003-198407

sub42431-14061¥11,900

main42431-14080iGX61..SDX¥11,600198208-198407

sub42431-14081¥11,600

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX¥130198003-198407

main90937-01118iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX¥130198003-198407

main90937-01119iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX¥130198003-198407

main90937-01195iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX¥170198003-198407

main90937-01196iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX¥190198003-198407

main90937-01197iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX¥270198003-198407

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iGX50,LX60,SX60,TX50¥620198202-198407

main42424-21010iGX50,TX50¥600198003-198202

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iGX50,LX60,SX60,TX50¥230198202-198407

main42425-22020iGX50,TX50¥200198003-198202

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iGX50,LX60,SX60,TX50¥620198202-198407

main42454-21010iGX50,TX50¥600198003-198202

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iGX5#,61,MX51,61,SX60,TX50¥240198003-198307

sub90942-02047¥230

main90942-02047iGX61,LX60,MX61,SX60¥230198307-198407

10 parts on this diagram · 4 diagrams in section
