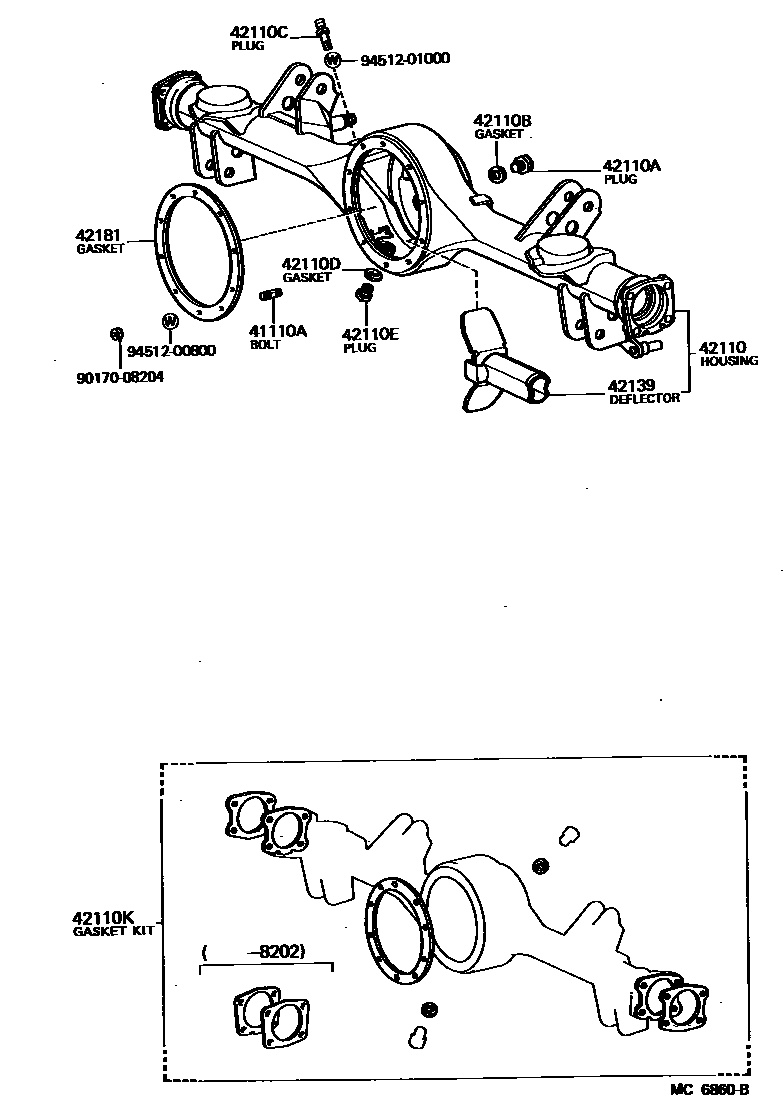

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14210iGX61..TWC198208-198407

main41110-14220iGX61..4FC..EFI198208-198407

sub41110-14221

main41110-20241iLX60,SX60,TX50..ATM198003-198407

main41110-20251iGX50..4FC198003-198407

main41110-21020iLX60..5F..CTM198308-198407

main41110-22131iGX51198003-198407

main41110-22141iGX61,MX51,61..TBO,TWC198003-198407

main41110-22170iGX50,SX60..5F198010-198407

sub41110-22171

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08106iGX50,SX60..5F198008-198407

main90116-08235iGX50,LX60,SX60,TX50198003-198407

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-22100iGX50,TX50198003-198008

main42110-22110iGX50,TX50198008-198208

sub42110-22150

main42110-22150iLX60,SX60198208-198407

sub42110-22170

main42110-22170iLX60..5F..CTM198308-198407

*30

sub42110-22180

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iGX50,LX60,SX60,TX50198003-198407

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iGX50,LX60,SX60,TX50198003-198407

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03023iGX50,TX50198003-198008

main90930-03031iGX50,LX60,SX60,TX50198008-198407

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iGX50,LX60,SX60,TX50198003-198407

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iGX50,LX60,SX60,TX50198003-198407

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-20030iGX50,LX60,SX60,TX50198202-198407

main04412-22050iGX50,TX50198003-198202

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iGX50,LX60,SX60,TX50198003-198407

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iGX50,LX60,SX60,TX50198003-198407

9017008204

main90170-08204

9451200800

main94512-00800

9451201000

main94512-01000

14 parts on this diagram · 6 diagrams in section
