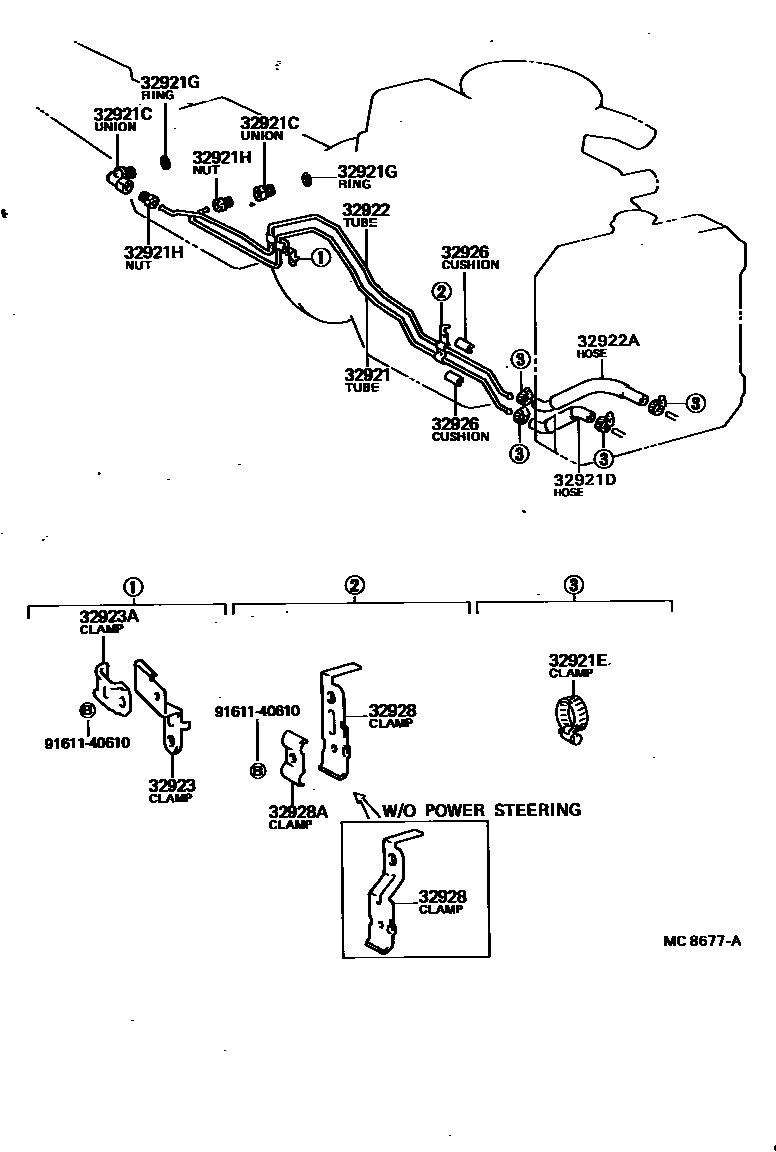

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22070iTX50..3FC198003-198208

main32921-22130iGX5#..4FC198003-198103

main32921-22131iGX5#..4FC198103-198112

A40D

sub32921-22132

main32921-22132iGX5#..4FC198112-198208

A40D

sub32921-22133

main32921-22190iGX51..4FC198104-198112

A42DL

sub32921-22191

main32921-22191iGX51..4FC198112-198208

A42DL

main32921-22200iMX51198110-198208

main32921-22210iGX61..4FC198301-198407

sub32921-22211

main32921-22260iSX60..4FC198208-198407

main32921-22270iGX61..4FC198208-198301

sub32921-22210

main32921-22280iMX61198208-198407

main32921-22290iLX60..4FC198308-198407

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iTX50..3FC198106-198208

FR

main90404-13265iTX50..3FC198003-198106

FR

main90404-14007iGX61,LX60,MX61,SX60..4FC198208-198407

FR

main90407-13002iGX5#..4FC198003-198106

RR

main90407-13005iGX5#,MX51..4FC198106-198208

RR

main90407-14003iGX61,LX60,MX61,SX60..4FC198208-198407

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-22010iGX5#,61..4FC198003-198407

main32941-22020iLX60..4FC198308-198407

main32941-30020iSX60..4FC198208-198407

main90445-14259iMX51,61,TX50..ATM198003-198407

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iGX61,LX60,MX61,SX60..4FC198208-198407

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22090iTX50..3FC198003-198208

main32922-22140iGX5#..4FC198003-198008

sub32922-22141

main32922-22141iGX5#..4FC198008-198103

main32922-22142iGX5#..4FC198103-198208

A40D

main32922-22150iGX61..4FC198302-198407

main32922-22210iMX51198110-198208

main32922-22230iGX51..4FC198104-198208

A42DL

main32922-22290iSX60..4FC198208-198407

main32922-22300iGX61..4FC198208-198302

sub32922-22150

sub32942-22030

main32922-22310iMX61198208-198407

main32922-22320iLX60..4FC198308-198407

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22010iGX5#,61..4FC198103-198301

L=230

main32941-22020iLX60..4FC198101-198407

main32942-14030iSX60..4FC198208-198407

main32942-22030iMX51,61198110-198407

main32942-22030iGX61..4FC198301-198407

L=180

main90445-14274iTX50..3FC198003-198208

sub90445-14514

main90445-14526iGX5#..4FC198003-198101

sub90445-14514

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14010iMX51,61198110-198407

main32923-14020iSX60..4FC198208-198407

main32923-30080iGX5#,61..4FC..EFI198003-198407

main32923-30090iLX60..4FC198308-198407

main90461-08039iTX50..3FC198003-198208

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-30060iSX60..4FC198208-198407

main90461-08292iMX51,61198110-198407

main90462-12085iLX60..4FC198308-198407

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iMX61198208-198407

main32926-30011iGX5#,61,LX60,MX51,SX60,TX50..ATM198003-198407

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-41010iMX51,61198110-198407

main32928-14020iSX60..4FC198208-198407

main32928-22011iTX50..3FC198003-198208

main32928-22040iGX5#..4FC198003-198103

main32928-24010iGX5#,61..4FC..EFI198103-198407

main32928-30060iLX60..4FC198308-198407

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-30050iLX60..4FC198308-198407

main90462-10019iMX51,61198110-198407

main90462-12085iGX5#,61,SX60,TX50..ATM198003-198407

9161140610

main91611-40610

14 parts on this diagram · 6 diagrams in section
