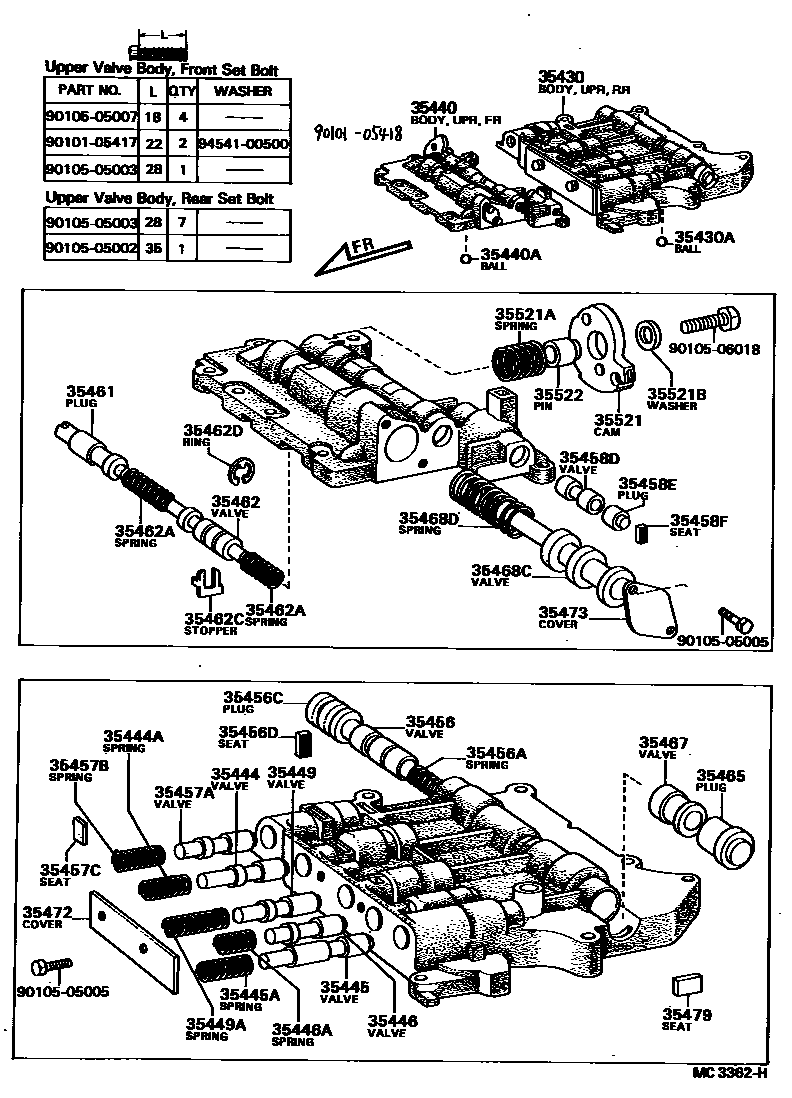

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

35430BODY ASSY, REAR UPPER VALVE

main35430-14020iMX51,61198110-198407

main35430-20010iLX60..4FC198308-198407

main35430-22050iTX50..3FC198003-198208

main35430-22072iSX60..4FC198208-198407

main35430-22110iGX5#..4FC198003-198208

A40D

main35430-30070iGX51..4FC198104-198208

A42DL

main35430-30070iGX61..4FC..EFI198208-198307

main35430-30120iGX61..4FC..TWC198302-198407

main35430-30140iGX61..4FC..EFI198307-198407

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

sub35495-22020

main90360-06023iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

main90360-06023iGX61..4FC..TWC198302-198407

35440BODY ASSY, FRONT UPPER VALVE

main35440-14010iGX61..4FC..EFI198208-198407

main35440-14010iGX51..4FC198104-198208

A42DL

main35440-22030iTX50..3FC198003-198105

sub35440-22031

main35440-22031iTX50..3FC198105-198208

main35440-22041iSX60..4FC198208-198407

sub35440-22120

main35440-30020iGX5#..4FC198003-198012

sub35440-30021

main35440-30021iGX5#..4FC198012-198208

A40D

sub35440-30022

main35440-30050iMX51,61198110-198407

sub35440-30051

main35440-30070iGX61..4FC..TWC198302-198407

main35440-30080iLX60..4FC198308-198407

sub35440-30081

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iTX50..3FC198003-198407

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iGX61..4FC..TWC198302-198407

LWR

main90501-09686iGX61..4FC..TWC198302-198407

INTERMEDIATE

main90501-11001iTX50..3FC198003-198208

sub90501-11009

main90501-11009iGX51,MX51..4FC198104-198407

35445VALVE, LOW MODULATOR

main35445-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

35446VALVE, GOVERNOR MODULATOR

main35446-20010iLX60..4FC198308-198407

main35446-22010iGX5#,61,MX51,61,SX60,TX50..ATM..(CBR,EFI,TBO)198003-198407

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688iGX5#,MX51,TX50..ATM198003-198407

35449VALVE, SEQUENCE

main35447-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

UPR VALVE

main35449-22010iGX5#,61,SX60,TX50..ATM..(CBR,EFI)198003-198407

LWR VALVE

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12726iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

35456VALVE, 2-3 SHIFT

main35456-22010iTX50..3FC198003-198407

main35456-22010iGX51,MX51,TX50..ATM198104-198208

A40,A42DL,A43D

main35456-30040iGX5#,SX60..4FC198003-198407

A40D

main35456-30050iGX61..4FC..TWC198302-198407

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08013iGX5#,SX60..4FC198003-198407

A40D

main90501-08724iGX51,MX51,TX50..ATM198104-198208

A40,A42DL,A43D

main90501-08724iTX50..3FC198003-198407

main90501-09028iGX61..4FC..TWC198302-198407

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iGX51,MX51,TX50..ATM198104-198208

A40,A42DL,A43D

main35452-22010iTX50..3FC198003-198407

main35452-30010iGX61..4FC..TWC198302-198407

sub90339-05014

main35452-30020iGX5#,SX60..4FC198003-198407

A40D

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iTX50..3FC198003-198407

main35493-30030iGX61..4FC..TWC198302-198407

35457AVALVE, DETENT REGULATOR

main35457-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iGX5#,TX50..ATM198003-198208

A40,A40D

main90501-09007iGX51,61..4FC..EFI198104-198407

A42DL

main90501-09025iLX60..4FC198308-198407

main90501-09739iMX51,61,SX60198110-198407

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

35458DVALVE, CUT BACK

main35458-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

main35458-30020iGX61..4FC..TWC198302-198407

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35461PLUG, DOWN SHIFT

main35408-22020iGX5#,SX60,TX50..ATM198003-198407

A40,A40D

main35408-30010iGX61,LX60,MX61..4FC..(DSL,EFI,TBO)198208-198407

main35408-30010iGX51,MX51..4FC198104-198208

A42DL,A43D

main35408-30020iGX61..4FC..TWC198302-198407

35462VALVE, THROTTLE

main35462-22011iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

main90501-11011iGX61..4FC..TWC198302-198407

PRIMARY

main90501-12011iGX5#,61,MX51,61,SX60,TX50..ATM..(CBR,EFI,TBO)198003-198407

main90501-12045iLX60..4FC198308-198407

35462CSTOPPER, VALVE VIBRATING

main35422-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iTX50..3FC198003-198407

main35465-22010iGX51,MX51,TX50..ATM198104-198208

A40,A42DL,A43D

main35465-30010iGX5#,SX60..4FC198003-198407

A40D

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iTX50..3FC198003-198407

main35467-22010iGX51,MX51,TX50..ATM198104-198208

A40,A42DL,A43D

main35467-30020iGX5#,SX60..4FC198003-198407

A40D

35468CVALVE, SECONDARY REGULATOR

main35468-14010iGX51,61..4FC198104-198407

A42DL,A42DE

main35468-22010iGX5#,MX51,TX50..ATM198003-198208

A40,A40D,A43D

main35468-22010iLX60,MX61,SX60..4FC198208-198407

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-16683iTX50..3FC198003-198208

main90501-19001iGX5#,61,LX60,MX51,61,SX60..4FC198003-198407

35472COVER, VALVE BODY, NO.2

main35472-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

main35472-30010iGX61..4FC..TWC198302-198407

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iGX61,LX60,MX51,61,TX50..ATM..(CBR,DSL,EFI,TBO)198003-198407

35521CAM, THROTTLE VALVE

main35521-20010iLX60..4FC198308-198407

main35521-22030iSX60,TX50..ATM198003-198407

main35521-30010iGX5#,61,MX51,61..4FC..(EFI,TBO)198003-198407

main35521-30030iGX61..4FC..TWC198302-198407

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35522PIN, THROTTLE VALVE CAM

main35522-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

9010105417

main90101-05417

9010105418

main90101-05418

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505007

main90105-05007

9010506018

main90105-06018

9454100500

main94541-00500

46 parts on this diagram · 14 diagrams in section
