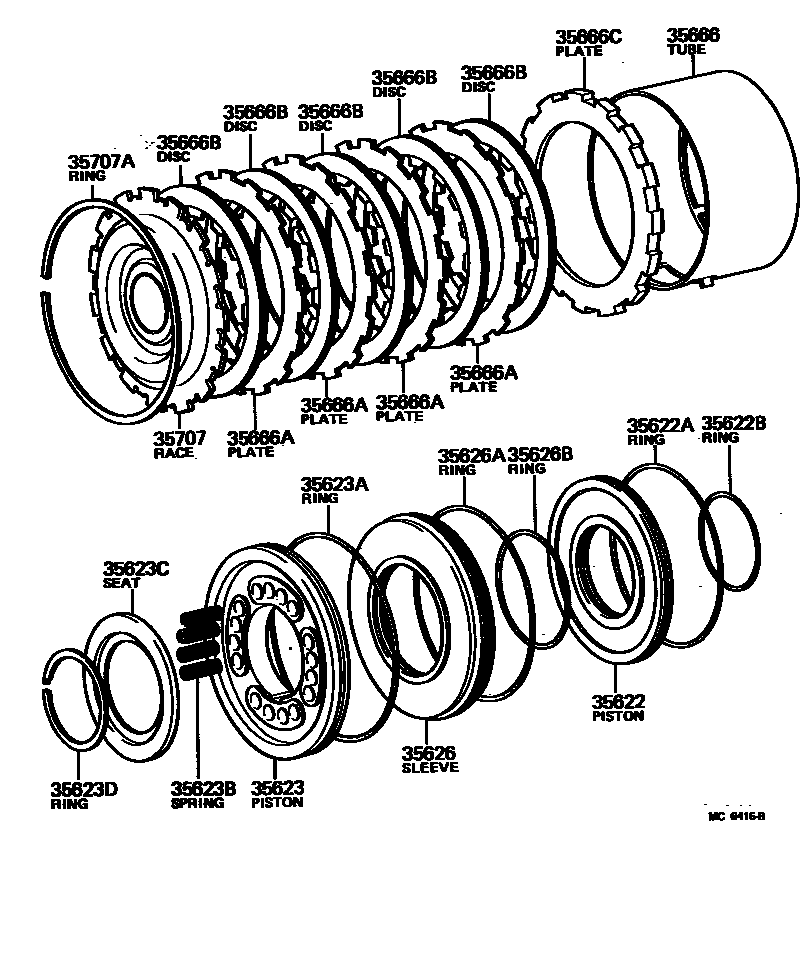

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35622PISTON, BRAKE, NO.2

main35622-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35623PISTON, BRAKE, NO.3

main35623-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35626SLEEVE, BRAKE REACTION

main35626-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

sub90301-67005

35666TUBE, BRAKE APPLY

main35666-22010iGX5#,TX50..ATM198003-198407

sub35666-26010

main35666-30010iGX61,MX51,61..4FC..(TBO,TWC)198110-198407

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22050iGX5#,TX50..ATM198003-198208

sub35634-22080

main35634-22080iGX61,LX60,MX61,SX60..4FC198110-198407

35666BDISC, CLUTCH (FOR BRAKE)

main35633-22050iGX5#,TX50..ATM198003-198208

sub35633-30030

main35633-30020iMX51198110-198208

sub35633-30030

main35633-30030iGX61,LX60,SX60..4FC..(CBR,DSL,EFI)198208-198407

sub35633-30050

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30010iGX5#,TX50..ATM198003-198407

sub35707-30020

main35707-30030iGX61,MX51,61..4FC..(TBO,TWC)198110-198407

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

17 parts on this diagram · 1 diagram in section
