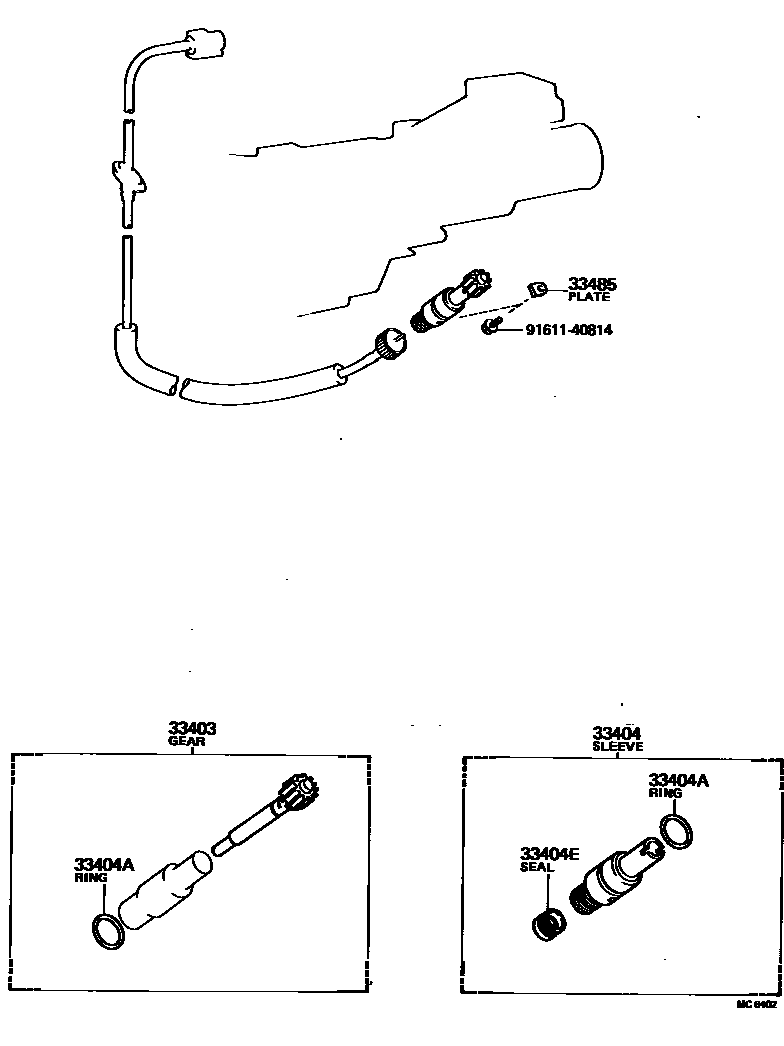

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19235iLX60..5F..CTM198308-198407

main33403-29065iGX51..5F198003-198004

N=20,DIFF R=4.100

main33403-29115iGX50,SX60..5F198010-198407

main33403-29125iGX61..5F..SLU..EFI198010-198407

main33403-29135iGX61..5F..TWC198208-198407

main33403-29145iGX61,LX60..5F..(CTM,SCM,SDX)198010-198407

main33403-69026iGX51..5F198003-198010

N=19

main33403-69026iGX50,TX50..MTM198003-198010

N=19,DIFF R=3.909

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iGX5#,61,LX60,SX60,TX50..MTM198010-198407

main33404-30040iGX5#,TX50..MTM198003-198010

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iGX5#,TX50..MTM198003-198010

main96710-02030iGX5#,TX50..MTM198010-198111

sub96711-24030

main96711-24030iGX5#,61,LX60,SX60,TX50..MTM198111-198407

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iGX5#,61,LX60,SX60,TX50..MTM198003-198407

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iGX5#,61,LX60,SX60,TX50..MTM198003-198407

9161140814

main91611-40814

6 parts on this diagram · 2 diagrams in section
