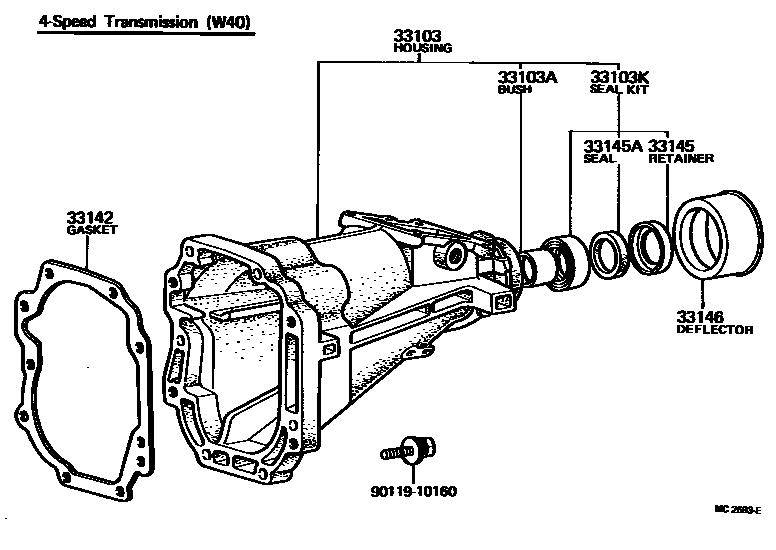

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20090iTX50..4F198003-198010

main33103-20100iGX5#..5F198003-198010

main33103-22090iGX5#,61,LX60,SX60..5F198010-198407

sub33103-22091

main33103-22100iTX50..4F198010-198208

main33103-30190iLX60..5F..CTM198302-198407

*30

sub33103-30191

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iTX50..4F198003-198407

sub90999-73139

main90999-73062iGX5#..5F198003-198010

33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main04332-30010iGX5#,TX50..MTM198003-198010

sub04332-30020

33142GASKET, EXTENSION HOUSING(MTM)

main33142-20020iGX5#..5F198003-198010

main33142-22010iGX5#,61,LX60,SX60,TX50..MTM198010-198407

main33142-31010iTX50..4F198003-198010

sub33142-20020

33145RETAINER, EXTENSION HOUSING DUST SEAL(MTM)

main33145-30010iGX5#,TX50..MTM198003-198010

33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90303-38010iGX5#,TX50..MTM198003-198010

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iGX5#,61,LX60,SX60,TX50..MTM198003-198407

sub33146-30020

9011910160

main90119-10160

8 parts on this diagram · 3 diagrams in section
