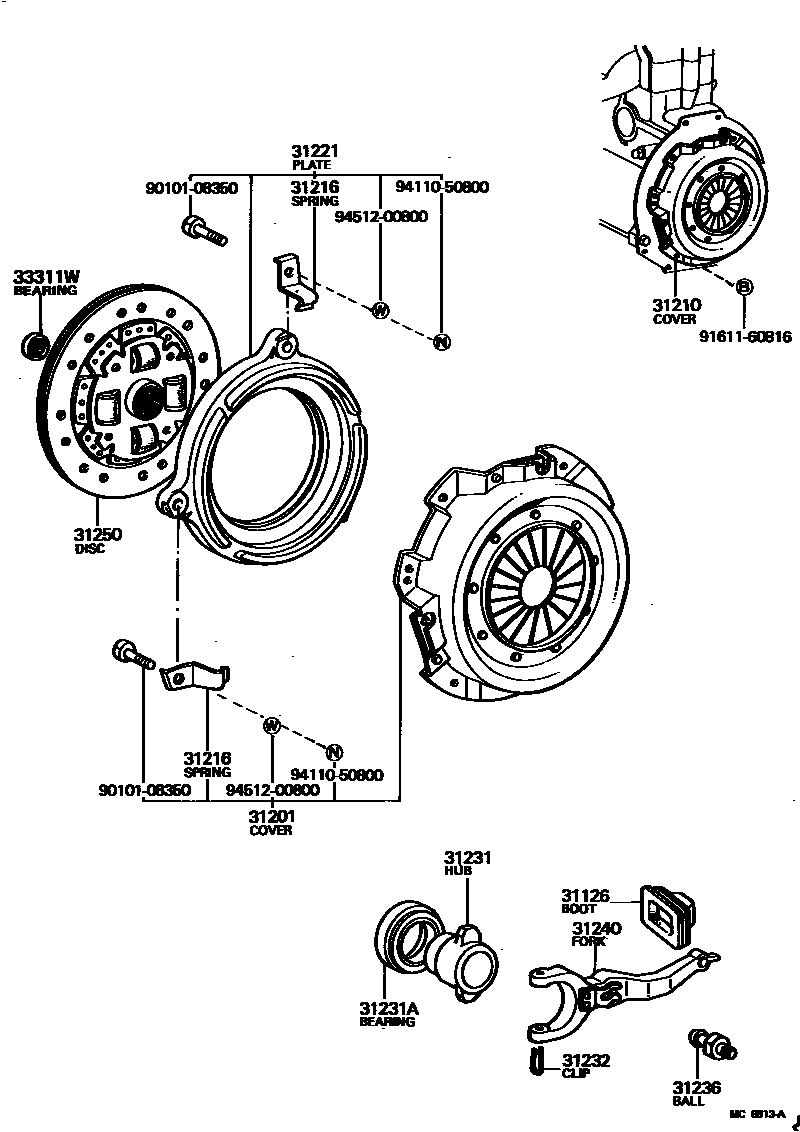

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20040iTX50..4F198003-198010

main31126-20060iGX5#..5F198003-198010

main31126-20070iGX5#,61,LX60,SX60,TX50..MTM198010-198407

31201COVER SUB-ASSY, CLUTCH

main31201-19048iTX50..4F198003-198007

sub31201-19075

main31201-19075iTX50..4F198007-198208

main31201-19095iGX61..5F..TWC198208-198407

sub31201-14110

main31201-29085iGX5#,61,SX60..5F..(CBR,EFI)198012-198407

sub31201-26010

main31201-39047iGX5#..5F198003-198012

main31201-39135iLX60..5F198308-198407

31210COVER ASSY, CLUTCH

main31210-14130iGX61..5F..TWC198208-198407

sub31210-35090

main31210-23011iTX50..4F198003-198007

sub31210-23012

main31210-23012iTX50..4F198007-198208

sub31210-12210

main31210-26030iSX60..5F198208-198407

sub31210-26070

main31210-30153iLX60..5F198308-198407

sub31210-30154

main31210-30172iGX5#..5F198003-198012

sub31210-20270

main31210-36029iGX5#,61..5F..EFI198012-198407

sub31210-36200

main31210-36029iSX60..5F198208-198407

*30

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-20020iTX50..4F198003-198208

main31216-30010iGX5#,61,LX60,SX60..5F198003-198407

31221PLATE, CLUTCH PRESSURE

main31221-19025iTX50..4F198003-198208

main31221-29035iSX60..5F198208-198407

main31221-39056iGX5#,61..5F198012-198407

sub31221-36025

main31221-39056iSX60..5F198208-198407

*30

sub31221-36025

main31221-39105iLX60..5F198308-198407

sub31221-30090

main31221-39115iGX5#..5F198003-198012

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLX60,SX60,TX50..MTM198010-198407

main31231-22021iGX5#..5F198003-198007

sub31231-22022

main31231-22022iGX5#..5F198007-198010

sub31231-22023

main31231-22040iGX5#..5F198010-198109

sub31231-36070

main31231-27020iTX50..4F198007-198010

main31231-30071iTX50..4F198003-198007

main31231-36070iGX5#,61..5F198109-198407

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40008iGX5#,TX50..MTM198003-198007

main90363-40015iGX5#,TX50..MTM198007-198012

sub90363-40022

main90363-40022iGX5#,61,LX60,SX60,TX50..MTM198012-198407

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iTX50..4F198007-198010

main31232-22010iGX5#..5F198003-198407

main31232-30010iTX50..4F198003-198007

31236BALL, RELEASE FORK

main31236-20020iGX5#,TX50..MTM198003-198107

main31236-30060iGX5#,61,LX60,SX60,TX50..MTM198107-198407

31240FORK ASSY, CLUTCH RELEASE

main31204-20040iTX50..4F198003-198007

main31204-20050iGX5#..5F198003-198010

main31204-20090iGX5#,61,LX60,SX60,TX50..MTM198010-198407

main31204-27020iTX50..4F198007-198010

31250DISC ASSY, CLUTCH

main31250-20024iTX50..4F198003-198008

main31250-20130iSX60..5F198208-198405

*30

sub31250-20131

main31250-20131iSX60..5F198405-198407

*30

main31250-22090iTX50..4F198008-198107

sub31250-22091

main31250-22090iTX50..4F198109-198201

*30

sub31250-22091

main31250-22091iTX50..4F198107-198208

sub31250-28140

main31250-22100iGX5#..5F198003-198006

sub31250-22101

main31250-22130iTX50..4F198201-198208

*30

sub31250-22091

main31250-22143iLX60..5F198308-198407

sub31250-22210

main31250-22150iGX61..5F..TWC198208-198407

sub31250-22151

main31250-30310iGX5#,61..5F..EFI198006-198407

sub31250-22101

main31250-35061iSX60..5F198208-198407

sub31250-35062

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLX60..5F198308-198407

sub90363-12024

main90363-12003iGX5#,61,TX50..MTM198011-198407

main90363-12004iSX60..5F198208-198407

main97123-06001iGX5#,TX50..MTM198003-198011

9010108350

main90101-08350

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 4 diagrams in section
