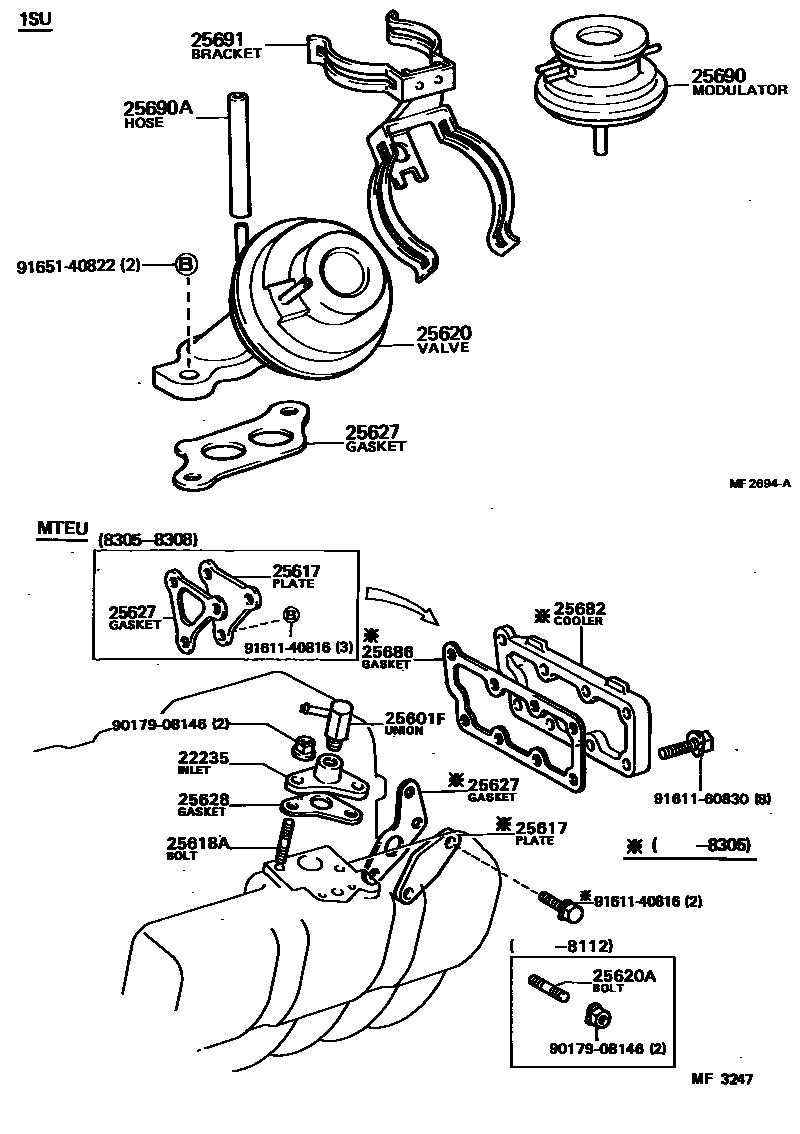

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 MF2694A,MF3247 0003 1

22235INLET, AUXILIARY AIR

main22235-43010iMTEU..MX51,61198110-198407

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027iMTEU..MX51,61198110-198407

25617PLATE, EGR HOLE COVER

main25617-43010iMTEU..MX51,61198110-198305

main25617-43030iMTEU..MX61198305-198308

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025iMTEU..MX51,61198110-198407

25620VALVE ASSY, EGR

main25620-18020i13TU..TX50..3FC198003-198208

main25620-18030i13TU..TX50..4F198003-198208

main25620-63010i1SU..SX60..5F198208-198407

main25620-63020i1SU..SX60..4FC198208-198407

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025iMTEU..MX51198110-198112

25627GASKET, EGR VALVE

main25627-26011i13TU..TX50198003-198208

sub25627-26012

main25627-41020iMTEU..MX51,61198110-198305

sub25627-43140

main25627-43040iMTEU..MX61198305-198308

sub25627-43060

main25627-63010i1SU..SX60198208-198407

sub25627-63011

25628GASKET, EGR INLET

main25628-45020iMTEU..MX51,61198110-198407

25682COOLER, EGR, NO.2

main25682-45020iMTEU..MX51,61198110-198305

25686GASKET, EGR COOLER, NO.2

main25686-45010iMTEU..MX51,61198110-198305

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-28010i13TU..TX50198003-198208

main25870-63010i1SU..SX60198208-198407

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11013i1SU..SX60198208-198407

main90445-11020i13TU..TX50198003-198208

sub90445-11051

25691BRACKET, EGR VACUUM MODULATOR

main25691-27011i13TU..TX50198003-198208

main25691-63010i1SU..SX60198208-198407

9017908146

main90179-08146

9161140816

main91611-40816

9161160830

main91611-60830

9165140822

main91651-40822
