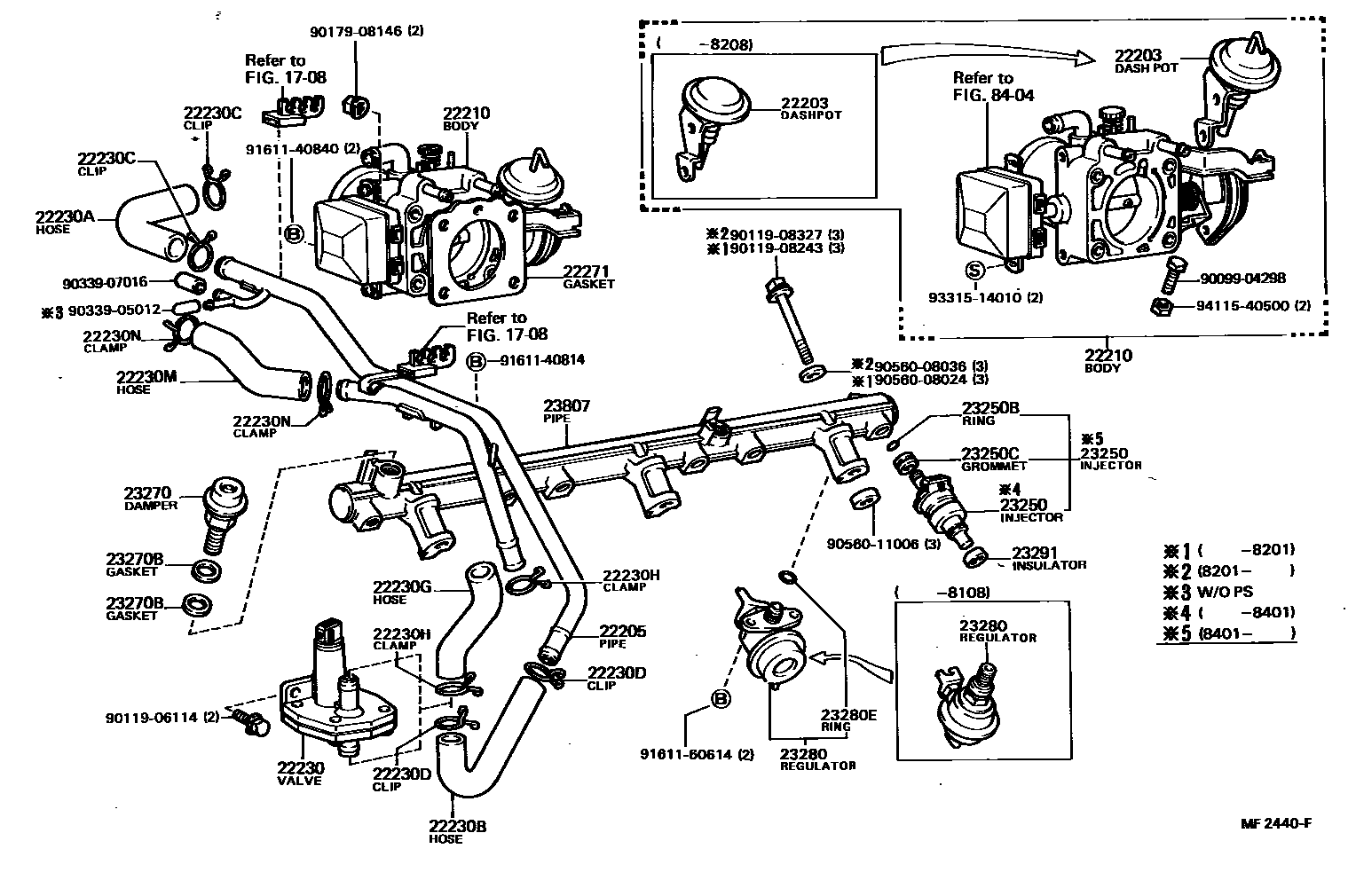

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1708

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22203-41040iMTEU..MX51,61198110-198308

main22203-70010i1GEU..GX5#198003-198208

main22203-70011i1GEU..GX61198208-198402

main22203-70030i1GEU..GX61198402-198407

22205PIPE SUB-ASSY, AUXILIARY AIR

main22205-70010i1GEU..GX5#198003-198102

sub22205-70020

sub22233-70020

main22205-70020i1GEU..GX5#,61198102-198407

22210BODY ASSY, THROTTLE

main22210-41222iMTEU..MX51,61198110-198308

main22210-41230iMTEU..MX61198308-198407

main22210-70010i1GEU..GX5#198003-198208

main22210-70011i1GEU..GX61198208-198402

sub22210-70012

main22210-70012i1GEU..GX61198402-198407

main22210-70040i1GGEU..GX61..5F198208-198306

main22210-70051i1GGEU..GX61198302-198407

22230VALVE ASSY, AUXILIARY AIR

main22230-41050iMTEU..MX51,61198110-198308

main22230-41060iMTEU..MX61198308-198407

main22230-70010i1GEU..GX5#198003-198207

sub22230-70011

main22230-70021i1GEU..GX5#,61198207-198407

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main17343-41030iMTEU..MX51,61198110-198407

main22233-70010i1GEU..GX5#198003-198102

main22233-70020i1GEU..GX5#,61198102-198407

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main17344-41010iMTEU..MX51,61198110-198407

main22234-70010i1GEU..GX5#,61198003-198407

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-20002i1GEU..GX5#,61198108-198407

main90467-21152iMTEU..MX51,61198003-198407

22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2

main90467-20002i1GEU..GX5#,61198108-198407

main90467-21152i1GEU..GX5#198003-198407

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main17342-41030iMTEU..MX61198308-198407

main22237-70010i1GEU..GX5#,61198003-198407

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-16035iMTEU..MX61198308-198407

main90467-20002i1GEU..GX5#,61198108-198407

main90467-21152i1GEU..GX5#198003-198108

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-70010i1GEU..GX5#,61198003-198407

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-20002i1GEU..GX5#,61198108-198407

main90467-21152i1GEU..GX5#198003-198108

22271GASKET, THROTTLE BODY

main22271-41030iMTEU..MX51,61198110-198407

main22271-70010i1GEU..GX5#,61198003-198407

main22271-88300i1GGEU..GX61198208-198407

23250INJECTOR ASSY, FUEL

main23209-45011i1GGEU..GX61198401-198407

sub23209-43010

main23209-70010i1GEU..GX61198401-198407

sub23209-13010

main23250-45011i1GGEU..GX61198110-198401

main23250-70010i1GEU..GX5#,61198003-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001iMTEU..MX51,61198003-198407

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1G#..GX5#,61198003-198407

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-52011i1GGEU..GX61198208-198407

sub23207-16020

main23270-70010iMTEU..MX51,61198003-198407

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i1GGEU..GX61198208-198407

DAMPER SIDE

sub23232-41081

main90430-12005i1GGEU..GX61198208-198407

DELIVERY PIPE SIDE

main90430-14002i1GEU..GX5#,61198003-198407

ID=14.2

main90430-17002i1GEU..GX5#,61198003-198407

ID=17.3

23280REGULATOR ASSY, FUEL PRESSURE

main23280-41030iMTEU..MX51,61198110-198407

main23280-70010i1GEU..GX5#198003-198108

main23280-70020i1GEU..GX5#,61198108-198407

main23280-70030i1GGEU..GX61198208-198407

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GEU..GX5#,61198108-198407

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1G#..GX5#,61198003-198407

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-45020iMTEU..MX51,61198110-198407

main23807-70010i1GEU..GX5#198003-198108

main23807-70020i1GEU..GX5#,61198108-198407

main23807-88300i1GGEU..GX61198208-198407

8404

9009904298

main90099-04298

9011906114

main90119-06114

9011908243

main90119-08243

9011908327

main90119-08327

9017908146

main90179-08146

9033905012

main90339-05012

9033907016

main90339-07016

9056008024

main90560-08024

9056008036

main90560-08036

9056011006

main90560-11006

9161140814

main91611-40814

9161140840

main91611-40840

9161160614

main91611-60614

9331514010

main93315-14010

9411540500

main94115-40500

39 parts on this diagram · 8 diagrams in section
