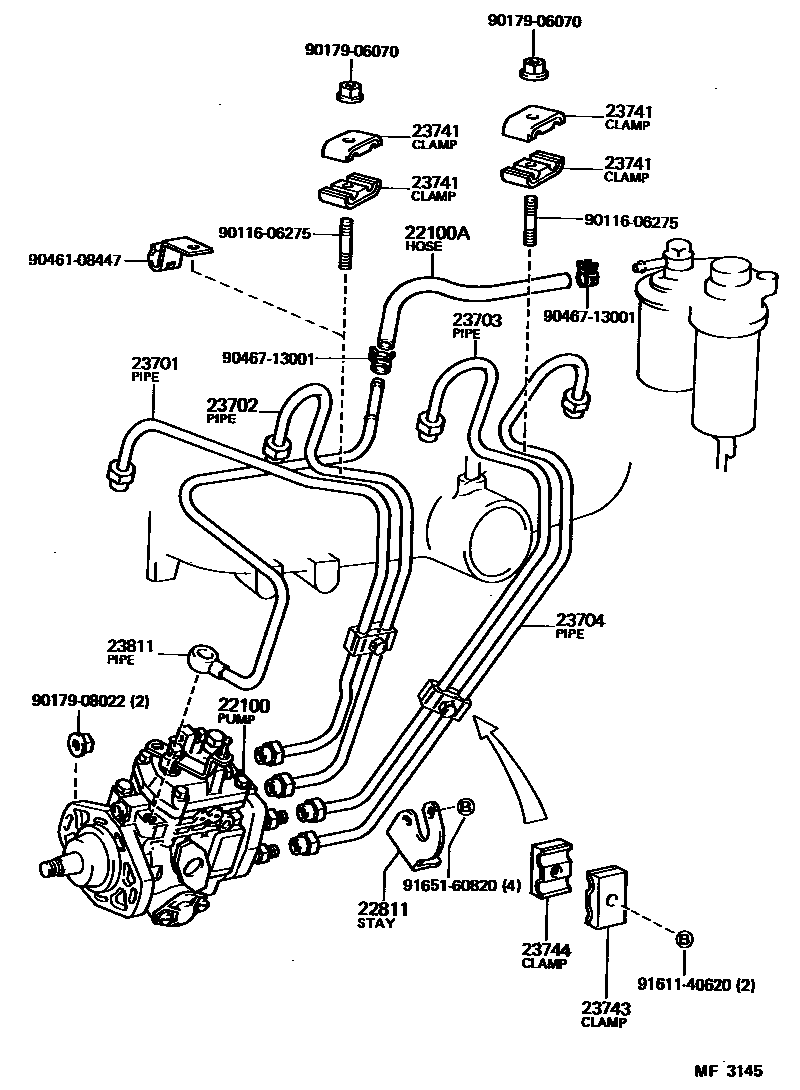

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54240iL..LX60198308-198310

sub22100-54241

main22100-54241iL..LX60198310-198406

sub22100-54242

sub90099-05166

main22100-54242iL..LX60198406-198407

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08030iL..LX60198308-198407

sub95333-08030

22811STAY, INJECTION PUMP, NO.1

main22811-54040iL..LX60198308-198407

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL..LX60198308-198311

main23701-54082iL..LX60198311-198407

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL..LX60198308-198311

main23702-54081iL..LX60198311-198407

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL..LX60198308-198407

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL..LX60198308-198407

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LX60198308-198407

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LX60198308-198407

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LX60198308-198407

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54090iL..LX60198308-198407

9011606275

main90116-06275

9017906070

main90179-06070

9017908022

main90179-08022

9046108447

main90461-08447

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

18 parts on this diagram · 1 diagram in section
