STARTER

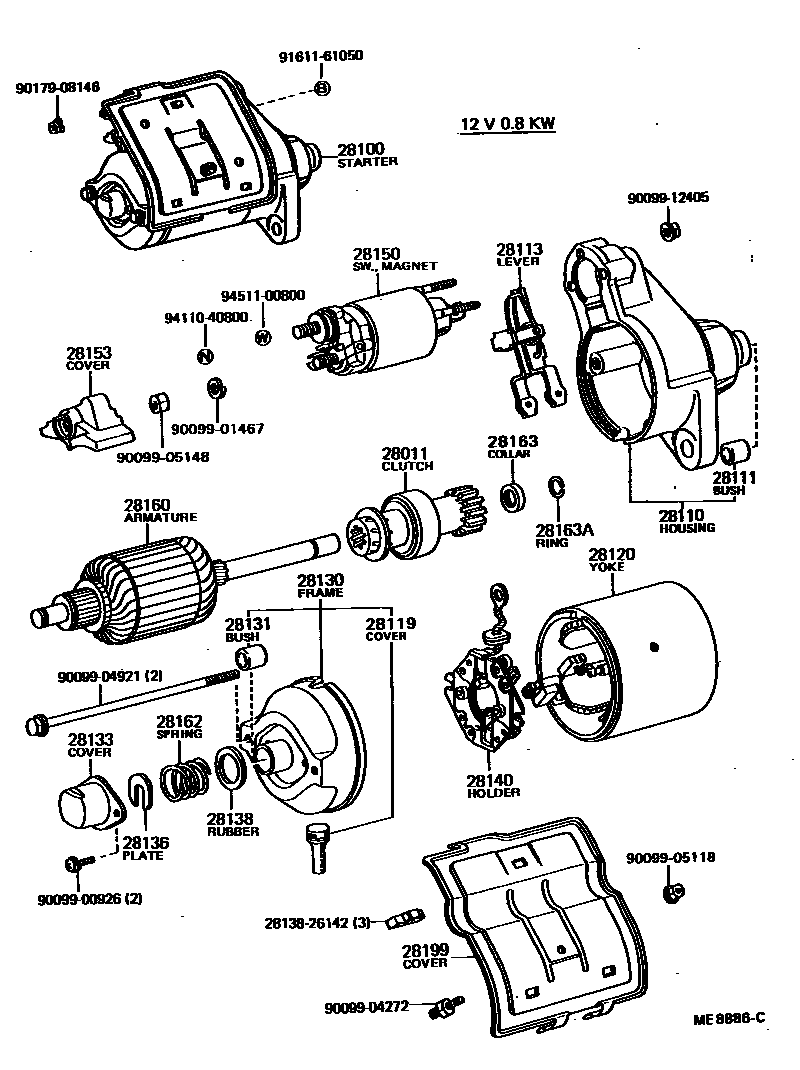

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i13TU,MTEU..MX51,61,TX50198003-198407

12V 0.8KW

main28011-26042iMTEU..MX51,61198110-198407

12V 1.4KW

main28011-26042i13TU,1G#,1SU..GX5#,61,SX60,TX50198003-198407

12V 1.0KW

main28011-54010iL..LX60198308-198407

12V 2.5KW

main28011-54070iL..LX60..5F198308-198407

12V 2.0KW

28100STARTER ASSY

main28100-15031i1GEU..GX5#198003-198006

main28100-15040i1G#..GX5#,61198003-198407

main28100-26142i13TU..TX50..4F198003-198008

main28100-27010i13TU..TX50198003-198008

12V 1.0KW

sub28100-26070

main28100-27020i13TU..TX50198008-198208

main28100-27030i13TU..TX50198008-198208

main28100-41050iMTEU..MX51,61198110-198407

main28100-45033iMTEU..MX51,61198110-198308

sub28100-45050

main28100-45050iMTEU..MX61198308-198407

main28100-54052iL..LX60198308-198407

sub28100-54220

main28100-54061iL..LX60..4FC198308-198407

sub28100-54220

main28100-54070iL..LX60..5F198308-198407

sub28100-54180

main28100-63020i1SU..SX60198208-198407

28110HOUSING ASSY, STARTER DRIVE

main28110-15031i1GEU..GX5#198003-198006

12V 0.8KW

main28110-15040i1G#..GX5#,61198003-198407

12V 1.0KW

main28110-26070i13TU..TX50198003-198008

12V 1.0KW

main28110-26141i13TU..TX50..4F198003-198008

12V 0.8KW

main28110-27020i13TU..TX50198008-198208

12V 0.8KW

main28110-27030i13TU..TX50198008-198208

12V 1.0KW

main28110-41050iMTEU..MX51,61198110-198407

12V 0.8KW

main28110-45050iMTEU..MX61198308-198407

12V 1.4KW

main28110-63020i1SU..SX60198208-198407

12V 1.0KW

main28115-45021iMTEU..MX51,61198110-198308

12V 1.4KW

main28115-54011iL..LX60198308-198407

12V 2.5KW

main28115-54070iL..LX60..5F198308-198407

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i13TU,MTEU..MX51,61,TX50198003-198407

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

28119COVER, STARTER END FRAME

main28119-54070iL..LX60..5F198308-198407

12V 2.0KW

main28119-77090iL..LX60198308-198407

12V 2.5KW

sub28199-77090

main28199-15090iMTEU..MX61198308-198407

12V 1.4KW

main28199-77090i13TU..TX50..4F198003-198407

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010iMTEU..MX51,61198003-198407

12V 0.8KW

main28120-15090iMTEU..MX61198308-198407

12V 1.4KW

main28120-26070i13TU,1GEU..GX5#,TX50198003-198407

12V 1.0KW

sub28120-26071

main28120-26071i13TU,1SU..SX60,TX50198203-198407

12V 1.0KW

main28120-26140i13TU..TX50198003-198208

12V 0.8KW

main28120-34030iMTEU..MX51,61198110-198308

12V 1.4KW

main28120-47040iL..LX60198308-198407

12V 2.5KW

main28120-54070iL..LX60..5F198308-198407

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15010i1GEU..GX5#198003-198407

12V 0.8KW

main28130-15040i1G#..GX5#,61198003-198407

12V 1.0KW

main28130-15090iMTEU..MX61198308-198407

12V 1.4KW

main28130-26070i13TU..TX50198003-198208

12V 1.0KW

main28130-37010i13TU..TX50198003-198208

12V 0.8KW

main28130-54060iL..LX60198308-198407

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

main28130-63020i1SU..SX60198208-198407

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i13TU,MTEU..MX51,61,TX50198108-198407

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i13TU..TX50..4F198003-198407

12V 0.8KW

main28140-15090iMTEU..MX61198308-198407

12V 1.4KW

main28140-26070i13TU,1G#,1SU..GX5#,61,SX60,TX50198003-198407

12V 1.0KW

main28140-34030iMTEU..MX51,61198110-198308

12V 1.4KW

main28140-54070iL..LX60..5F198308-198407

12V 2.0KW

main28140-77090iL..LX60198308-198407

12V 2.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i1GEU..GX5#198003-198006

12V 0.8KW

sub28150-37010

main28150-15012i13TU,MTEU..MX51,61,TX50198003-198304

12V 0.8KW

sub28150-37010

main28150-15040i1GEU..GX5#198003-198110

12V 1.0KW

sub28150-15070

main28150-15070i1G#..GX5#,61198110-198407

12V 1.0KW

main28150-27010i13TU..TX50198003-198008

12V 1.0KW

sub28150-27031

main28150-27030i13TU..TX50198008-198108

12V 1.0KW

sub28150-27031

sub28199-27031

main28150-27031i13TU..TX50198108-198208

12V 1.0KW

main28150-37010iMTEU..MX61198304-198407

12V 0.8KW

sub28150-37011

main28150-45032iMTEU..MX51,61198110-198308

12V 1.4KW

main28150-45050iMTEU..MX61198308-198407

12V 1.4KW

main28150-54011iL..LX60..4FC198308-198407

12V 2.5KW

sub28150-54190

main28150-54051iL..LX60198308-198407

12V 2.5KW,COLD SPEC

sub28150-54221

main28150-54070iL..LX60..5F198308-198407

12V 2.0KW

sub28150-54110

main28150-63021i1SU..SX60198208-198407

12V 1.0KW

28153COVER, MAGNET SWITCH

main28159-15010i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i13TU..TX50..4F198003-198407

12V 0.8KW

main28160-15090iMTEU..MX61198308-198407

12V 1.4KW

sub28160-15091

main28160-26050iMTEU..MX51,61198110-198308

12V 1.4KW

main28160-26070i13TU,1G#,1SU..GX5#,61,SX60,TX50198003-198407

12V 1.0KW

sub28160-26071

main28160-47040iL..LX60198308-198407

12V 2.5KW

sub28160-54140

main28160-54070iL..LX60..5F198308-198407

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i13TU,1GEU..GX5#,TX50..4F,4FC,5F198003-198407

12V 0.8KW

28199COVER, STARTER

main28199-26131i13TU..TX50..4F198003-198208

12V 0.8KW

sub28199-15110

main28199-27010i13TU..TX50198003-198008

12V 1.0KW

sub28199-27031

main28199-27030i13TU..TX50198008-198108

12V 1.0KW

main28199-27031i13TU..TX50198108-198208

12V 1.0KW

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009900926

main90099-00926

9009901467

main90099-01467

9009904272

main90099-04272

9009904921

main90099-04921

9009905118

main90099-05118

9009905148

main90099-05148

9009912405

main90099-12405

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800
