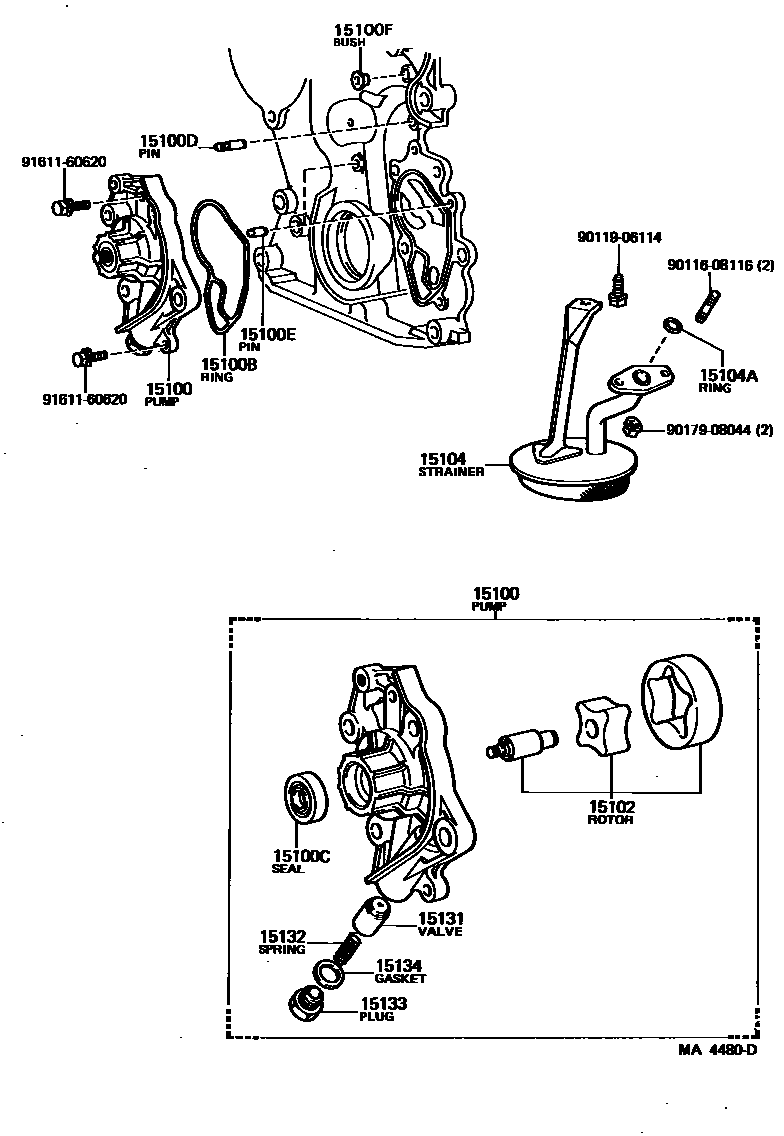

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15100PUMP ASSY, OIL

main15100-25020i13TU..TX50198003-198208

main15100-43010iMTEU..MX51,61198110-198407

main15100-63010i1SU..SX60198208-198407

main15100-70010i1GEU..GX5#198003-198106

sub15100-70011

sub13524-70011

main15100-70011i1GEU..GX5#,61198106-198407

main15100-88300i1GGEU..GX61198208-198407

15100BRING, O(FOR OIL PUMP)

main15188-63010i1SU..SX60198208-198407

main15188-70010i1G#..GX5#,61198003-198407

15100CSEAL(FOR OIL PUMP)

main15165-70010i1G#..GX5#,61198003-198407

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1G#..GX5#,61198003-198407

main90253-09001i1SU..SX60198208-198407

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010i1G#..GX5#,61198003-198407

15100FBUSH (FOR OIL PUMP)

main15186-70010i1G#..GX5#,61198003-198407

sub90029-38300

15102ROTOR SET, OIL PUMP

main15102-25010i13TU..TX50198003-198208

main15102-63010i1SU..SX60198208-198407

main15102-70010i1GEU..GX5#198003-198106

main15102-70011i1GEU..GX5#,61198106-198407

main15102-88300i1GGEU..GX61198208-198407

15104STRAINER SUB-ASSY, OIL

main15104-54032iL..LX60198308-198407

main15104-63010i1SU..SX60198208-198407

main15104-70010i1G#..GX5#,61198003-198407

sub15104-70040

sub15147-70021

15104ARING, O(FOR OIL STRAINER)

main96721-19020i1SU..SX60198208-198407

main96732-19020i1G#..GX5#,61198003-198407

15131VALVE, OIL PUMP RELIEF

main15131-22010i13TU..TX50198003-198208

main15131-24010iMTEU..MX51,61198003-198407

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i13TU..TX50198003-198407

main15132-46010iMTEU..MX51,61198110-198407

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1G#..GX5#,61198003-198407

main15133-24010iMTEU..MX51,61198110-198407

main15133-41030i13TU..TX50198003-198208

sub15133-20010

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1G#..GX5#,61198003-198407

9011608116

main90116-08116

9011906114

main90119-06114

9017908044

main90179-08044

9161160620

main91611-60620

17 parts on this diagram · 5 diagrams in section
